Equipped With

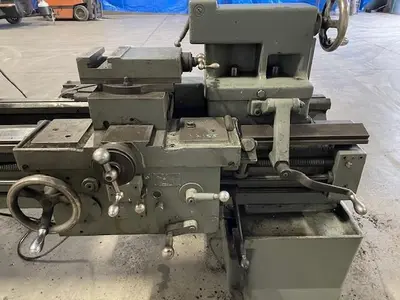

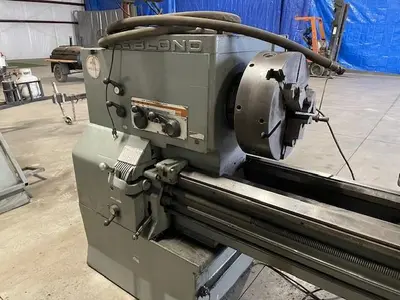

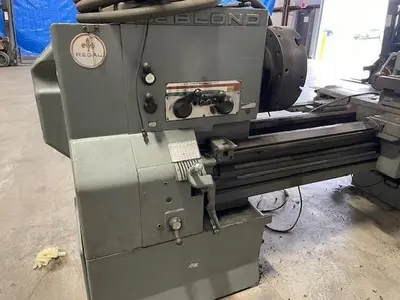

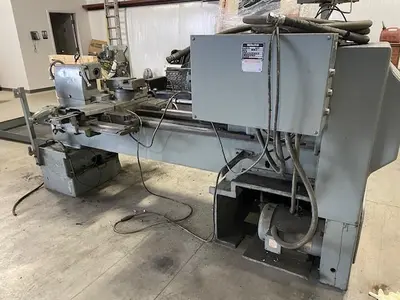

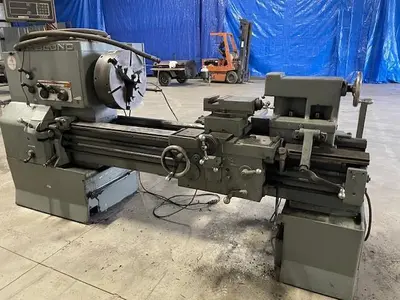

24" X 48" LEBLOND GEARED HEAD ENGINE LATHE
New 1972
Motor Driven with 10 HP, 3-Phase, 60 Cycle, AC Motor & Controls
SPECIFICATIONS:
Actual Swing over Bed & Carriage Ways 26"
Swing Over Cross Slide 18-1/4"
Distance Between Centers 48"
Spindle Nose L-2
Hole Thru Spindle 2-3/16"

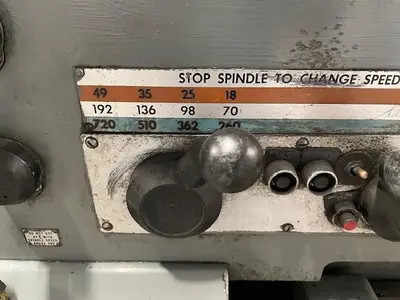

Spindle Speeds (12) 18 to 720 RPM
Lead Screw Diameter & Pitch 1-7/16" x 4 TPI
Thread Range (48) 2 to 112 TPI
Feeds (48) 0.0036 to 0.205 IPR
Tailstock Spindle Diameter 3-1/8"
Tao;stpcl S[omd;e Trave; 7-1/2"
Taper in Tailstock #5 MT
Approximate Dimensions 122" x 52" x 60" H
Approximate Weight 8,100 Lbs.
EQUIPMENT:
18" 3-Jaw Universal, Adjustable Body, Dire3ct Mount Chuck w/ Solid Reversible Top Jaws
18" 4-Jaw Independent Direct Mount Chuck w/ Solid Reversible Jaws

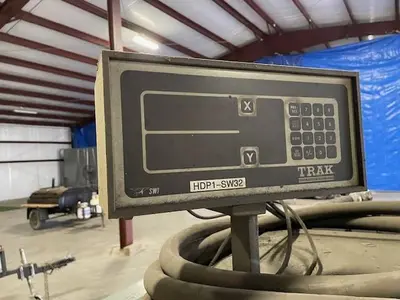

TRAK 2-Axis Digital Readout System
Telescopic Taper Attachment
Hardened & Bround Bed & Carriage Ways (Replaceable)
Threadiing Dial
Coolant System

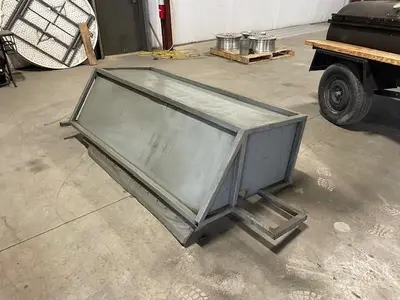

Chip Pan
Rear Splash Guard
