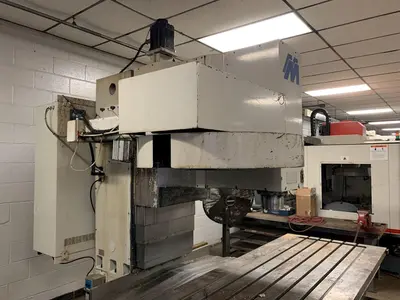

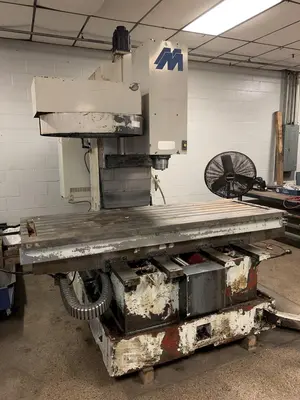

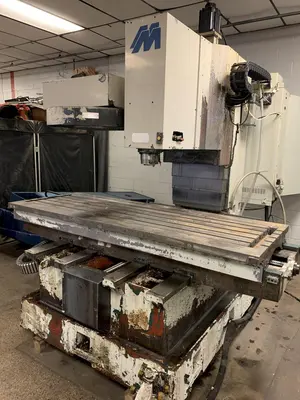

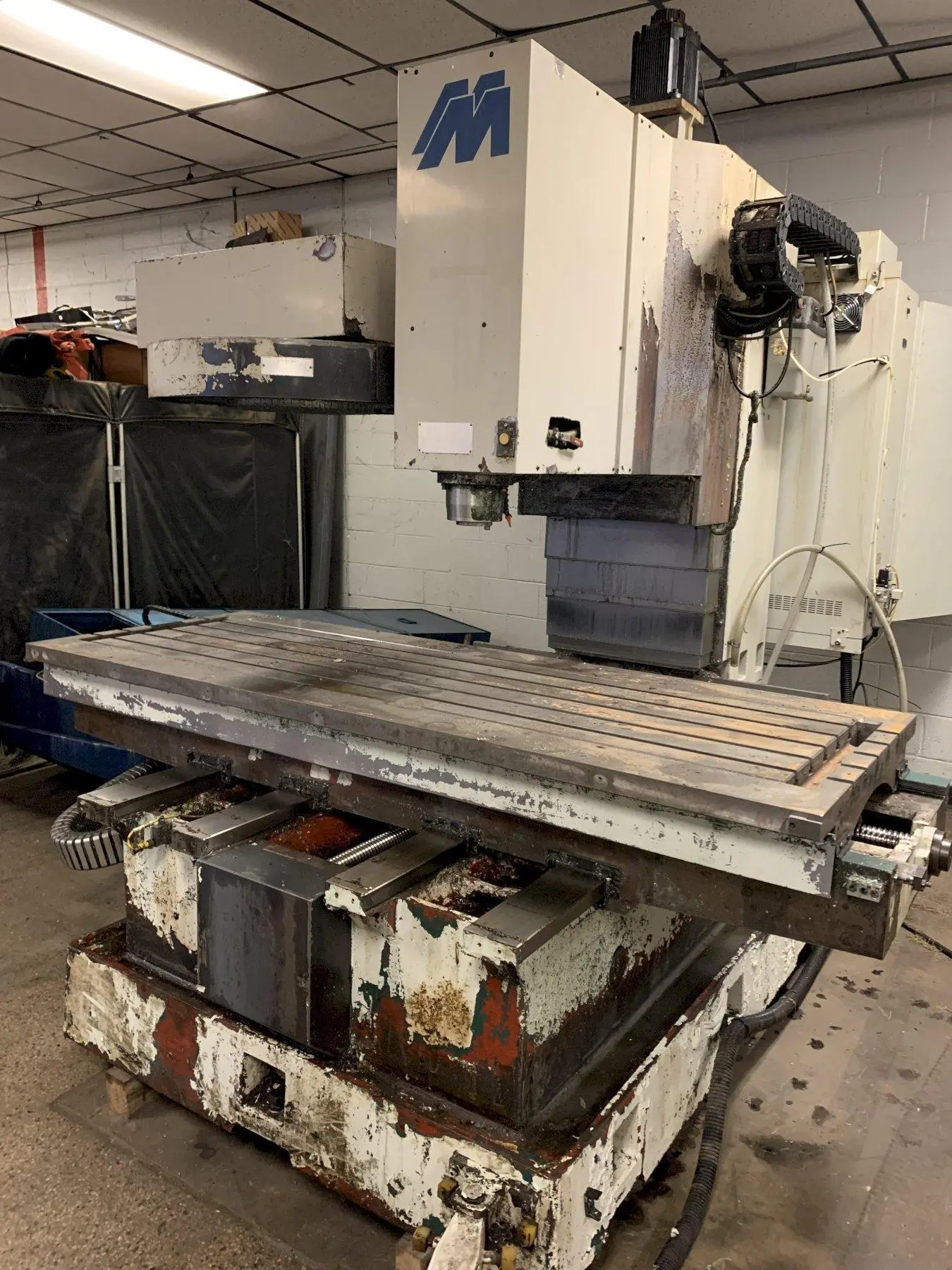

MILLTRONICS RH-33 CNC VERTICAL MACHINING CENTER

Equipped With
MILLTRONICS RH-33 CNC VERTICAL MACHINING CENTER
New 2004
Preliminary Specifications:

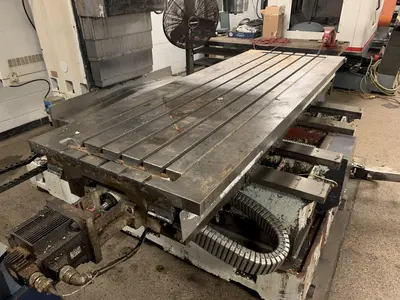

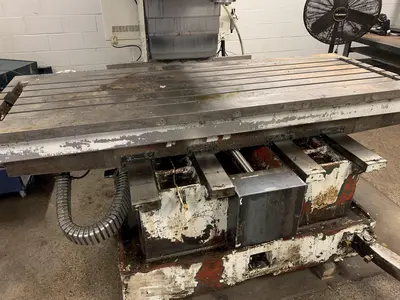

Table Size - 86" x 32"
Travels (XYZ) - 78" x 33" x 28"
Table Weight Capacity - 3500 Lbs.
Distance Spindle Nose to Table – 4” to 32”
Spindle Taper - CT40
Spindle Speeds - 50 to 8,000 RPM
Spindle Motor (1 min / 30 min) - 24/15 HP
Rapid Traverse (XY) - 800 IPM
Rapid Traverse (Z) - 600 IPM
Max Feedrate - 300 IPM
ATC Capacity - 24 Pocket
Electrics - 3/60/220 V
Floor Space Requirement - 222" x 130"
Height - 112"
Weight, Approx - 15,000 Lbs.
Equipped with:

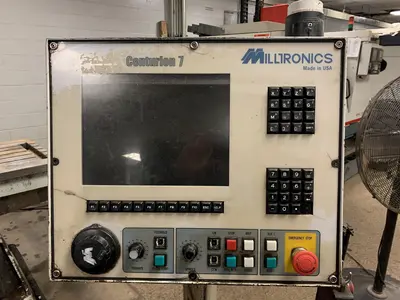

Centurion 7 CNC Control
Conversational and G/M Code Programming
Color LCD with 3D Graphics
24 Pocket Automatic Tool Changer
Fixed Head Design
Box Ways
Steel Way Covers
Auto Lube
