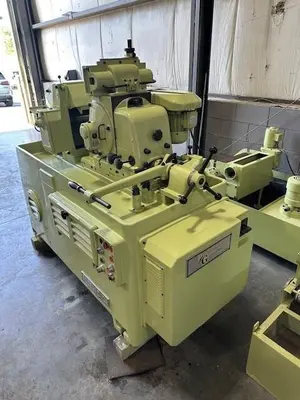

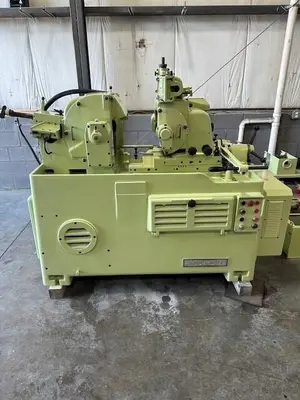

ROSSI-MONZA MODEL 400 CENTERLESS GRINDER, REBUILT 2021

Equipped With
ROSSI-MONZA MODEL 400 CENTERLESS GRINDER, REBUILT 2021
Description:
The Rossi Monza 400 is a centerless grinding machine manufactured by the Italian company Rossi, designed for precision grinding of cylindrical parts with diameters ranging from 1mm to 100mm; it is known for its reliable performance and capability to handle a variety of materials, often used in industrial applications requiring high precision cylindrical grinding
Equipped With:

Hydraulic Dressers
Work Rests
Gravity Thru Feed
Coolant System

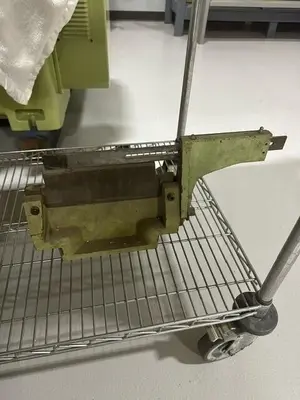

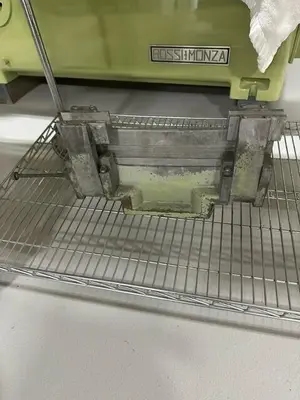

Thrufeed and Infeed Blade Holders
Magnetic/Paper Filtration
Wheel Mounts
220/440 Electrics
Specifications:

Grinding Length:                                                    8"
OD Minimum Grinding Diameter:                        0.40"
OD Maximum Grinding Diameter:                       4"
Grinding Wheel Bore:                                           6"
Wheel head Motor HP:                                          20
Wheel head RPM:                                                 1,500 RPM
Grinding Wheel Diameter x Width:                      406 mm (16") x 204 mm (8")
Regulating Wheel RPM:                                       310
Regulating Wheel Motor HP:                               1.50
Control Wheel Size -                                            254 mm (Diameter) x 204 mm (Width)
Grinding Diameter -                                             1 mm to 100 mm,
Control Wheel Feed Angle -                                 8° to -8°
