USED 1969 CINCINNATI 230-10
Overview
Specs
Equipped With

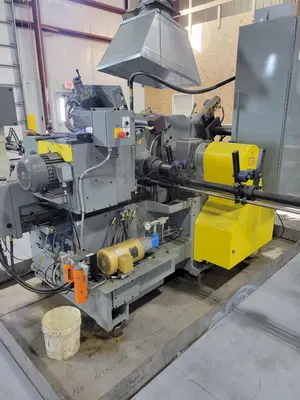

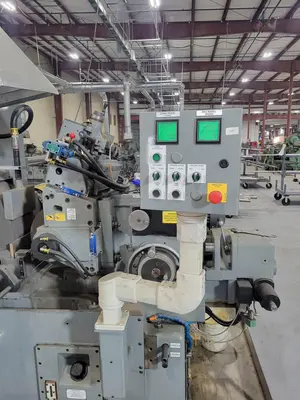

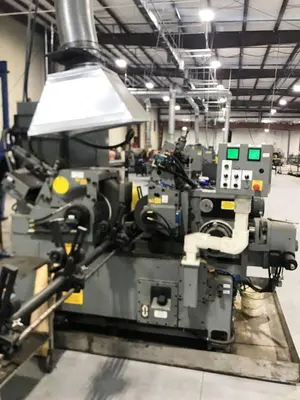

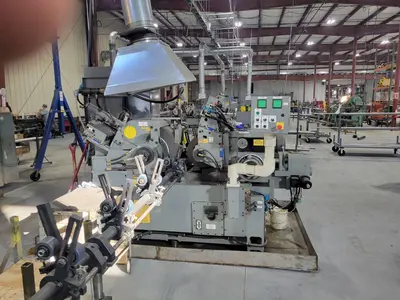

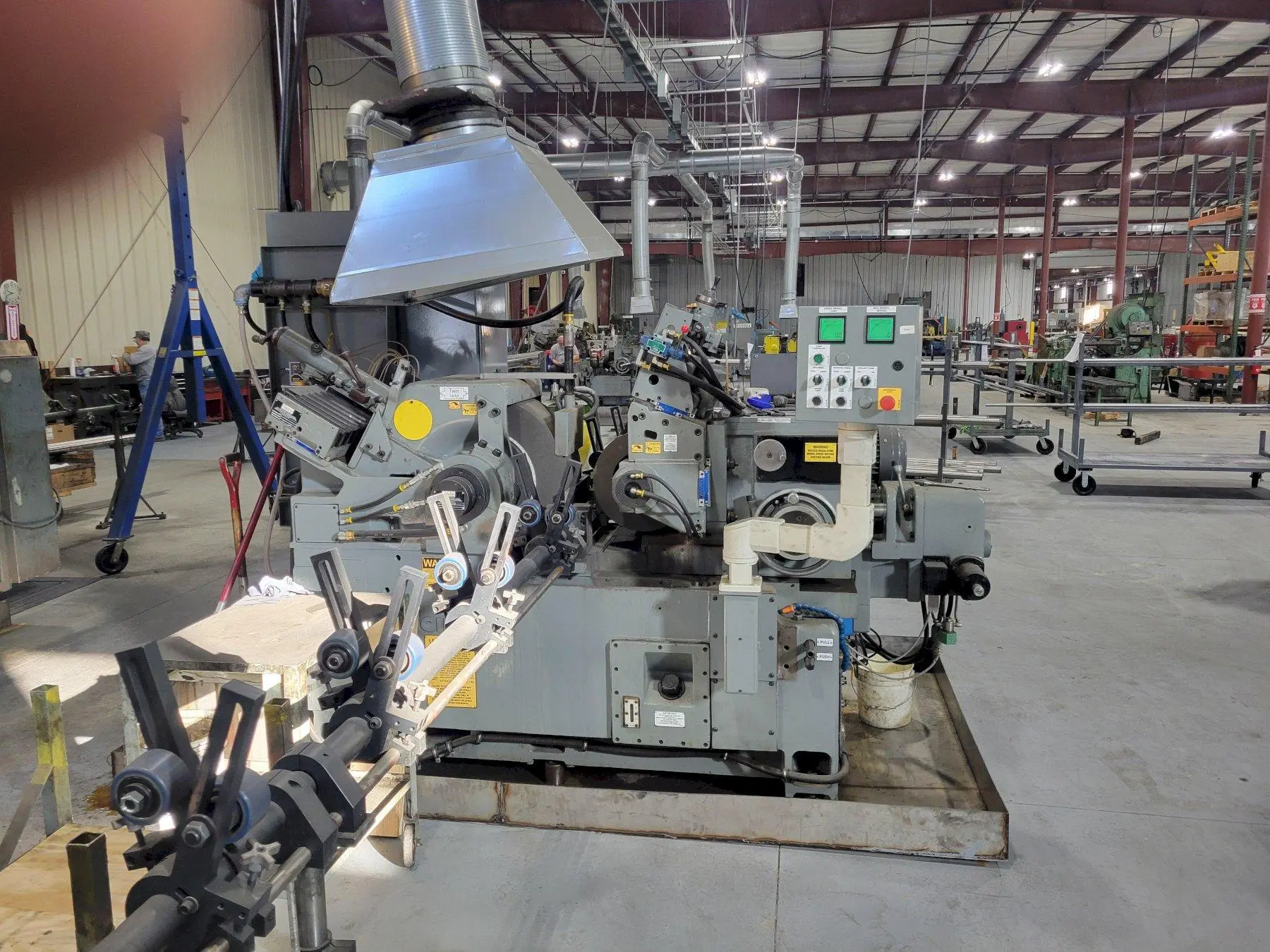

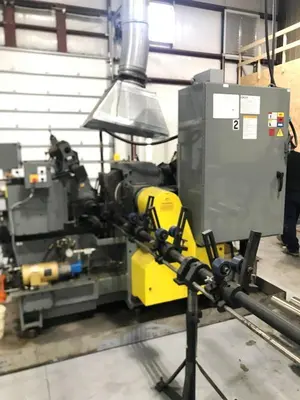

230-10 CINCINNATI TWIN GRIP CENTERLESS GRINDING MACHINE
Remfanufactured 2023
EQUIPPED WITH:
Hydraulic grinding wheel profile truing unit – automatic truing with diamond advance
Hydraulic regulating wheel profile truing unit
Front infeed handwheel – micrometer type
Electro-hydraulic automatic infeed attachment – electro-hydraulically operated without hydraulic ejector
Loading dwell with Electro-Hydraulic Automatic Infeed Attachment
Compensating devices for infeed operations – used with electro-hydraulic automatic infeed attachment – push button
Barnes MPE-15 Coolant System
In & Out Long Bar Attachment
SPECIFICATIONS:
Capacity 1/4″ – 4″ dia.
Wheels:
Grinding – widths up to 10″, 12″ hole 24″ dia.
Regulating – widths up to 10″, 5″ hole w/ 2″ C.B. in back and 1.5″ C.B. in front 12″ dia.
Drive Motors:
Grinding wheel 30 HP
Regulating wheel 1.5 HP
Wheel speeds – infinitely variable 11 – 300 RPM
Sizing adjustments – hand wheel graduated 0.000050″
Coolant System:
Pump 50 gal./min.
Cutting fluid tank capacity 150 gal.
Approximate Dimensions 95″(W)x 128″(L)x86″(H)
Approximate Weight 13,200 lbs.
