Equipped With

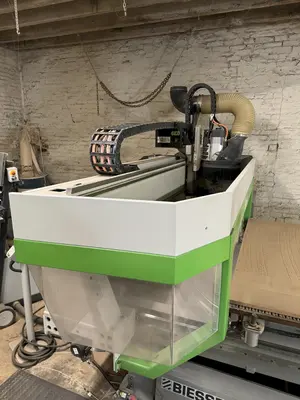

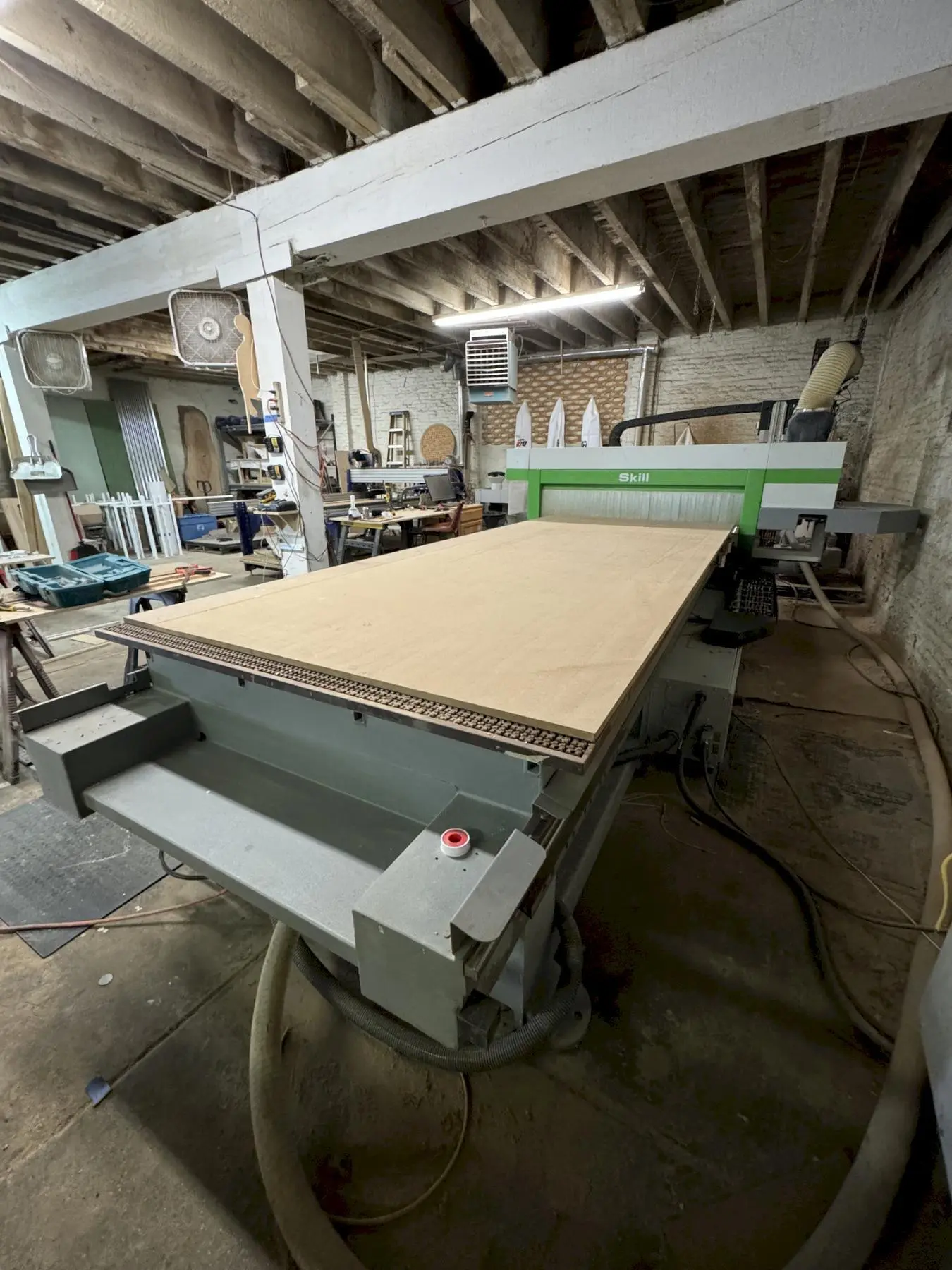

Biesse Skill 1536 GFT CNC Router
New 2013
Description:
The Skill G FT is the new generation of gantry CNC machining centers designed for nesting technology. Rich in function and performance, the Skill provides high quality machining, efficiency and long lasting precision by means of proven construction solutions.
-5` x 12` with "Matrix" grid phenolic surface for nested base manufacturing
-X-axis working capacity: 148.2" (3765mm)
-Y-axis working capacity: 61.4" (1560mm)
-Z-axis stroke working capacity: 12.7" (324mm)
-Maximum material thickness: 6.6" (120mm)
-X-axis & Y-axis positioning speed: 279 ft/min (85 m/min) by precision rack and pinion system
-Z-axis positioning speed: 98.4 ft/min (30 m/min) by precision ball screws
-All axes use linear guides and ways controlled by digital, brushless AC servo motors.
-Automatic centralized lubrication system
Specifications:

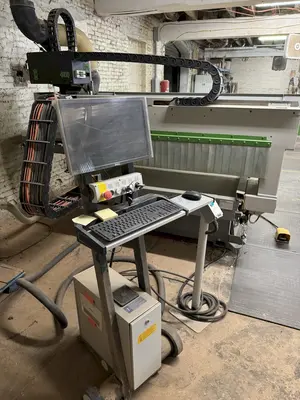

Control
CNC
BIESSE SKILL G FT 1536
-- Specifications:
5' x 12' "Matrix" grid phenolic surface for "Nested Base Manufacturing",
-- Working capacity:
"X" Axis 148.2" (3,765 mm), "Y" axis 61.4" (1,560 mm), "Z" axis stroke is 12.7" (324 mm), max. material thickness 4.7" (119 mm).
-- Positioning Speed:
"X" & "Y" axis 197 FPM (60 MPM), "Z" axis 65.6 FPM (20 MPM).
"X" & "Y" Axes use a precision rack & pinion system, "Z" axis uses precision ball screws.

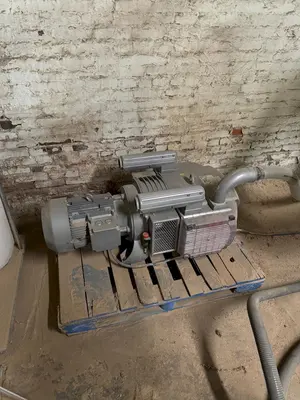

EQUIPPPED WITH: Vacuum Pump
:
