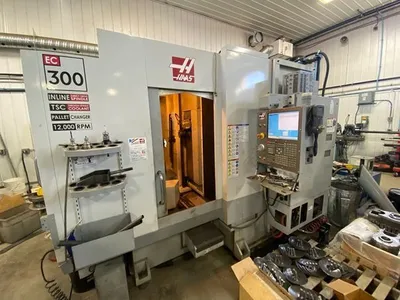

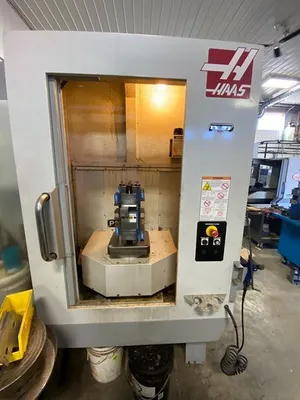

Explore precision engineering with the 2008 Haas EC-300 Horizontal Machining Center. Offers 20" X, 18" Y, 14" Z travel, 20 HP, 8,000 RPM, 24-tool capacity, and 11.8" square pallet for diverse machining needs. Ideal for enhancing productivity.
| X | 20" | 508 mm |
| Y | 18" | 457.2 mm |
| Z | 14" | 355.6 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 24 | 24 |
| Taper | 40 | 40 |
| Pallet-W | 11.8" | 299.72 mm |
| Pallet-L | 11.8" | 299.72 mm |
| # Axis | 3 | 3 |
| Dimensions | 132" x 133" x 94" | 132" x 133" x 94" |
| Weight | 18,000 lbs | 18,000 lbs |
Specifications (subject to buyer verification):
X-Axis Travel: 20"
Y-Axis Travel: 18"
Z-Axis Travel: 14"
Power: 20 HP
Speed: 12,000 RPM
Number of Tools: 24
Pallet Size: 11.8" x 11.8"
Equipped With (subject to buyer verification):
