NEW KENT USA CGS-818AH

Equipped With

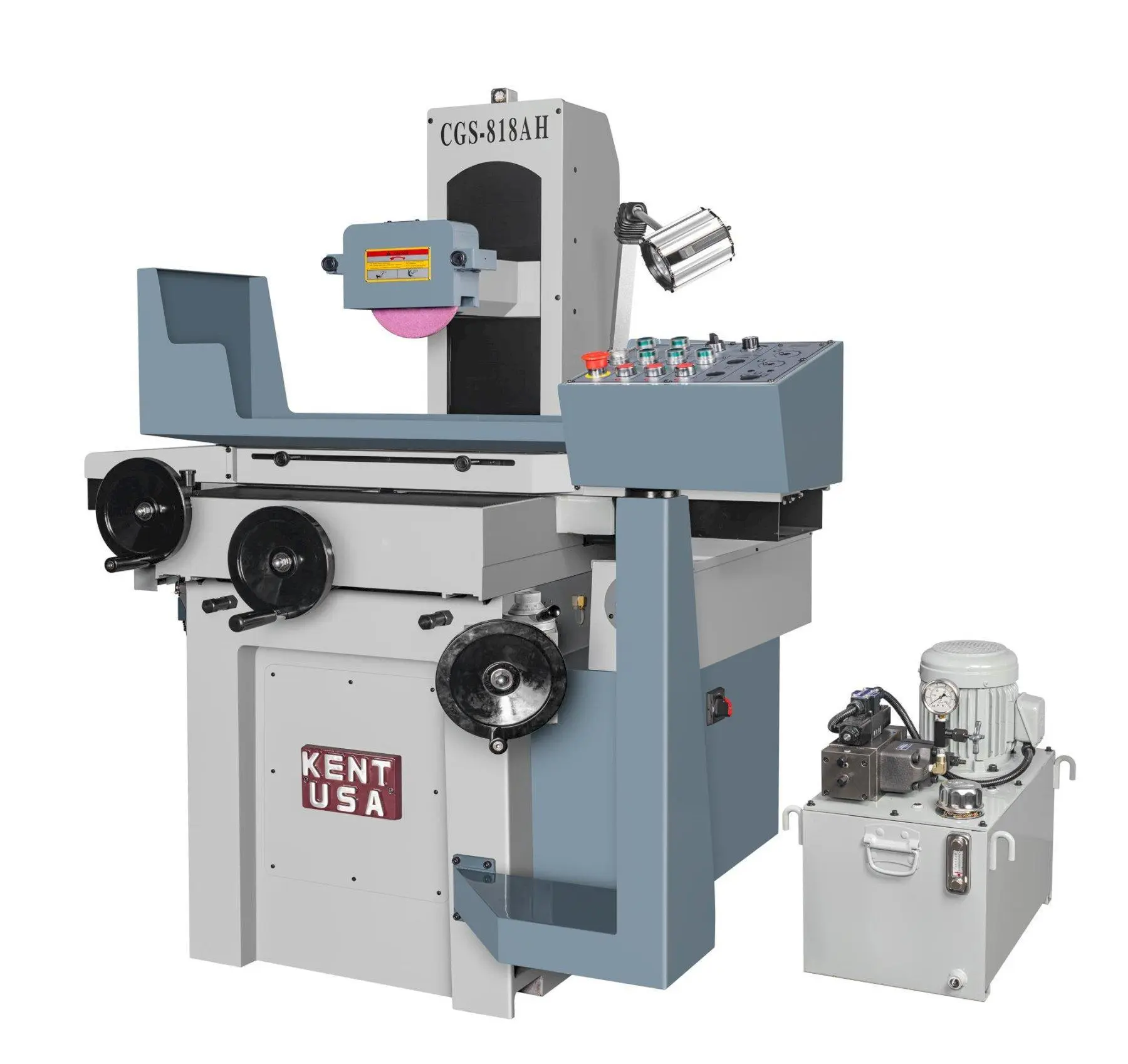

NEW 8" X 18" KENT USA MODEL CGS-818AH AUTOMATIC SURFACE GRINDER
FEATURES
8” x 18” working capacity
2-axis automatic movement with hydraulic table movement and electronic auto-crossfeed
Precision hand scraped turcite table and saddle ways for smooth and long-lasting precision
High column design with 18” spindle center to table for extra clearance under the wheel
Cartridge type spindle design for easy serviceability
Centralized automatic lubrication system provides lubrication to all points
Micro feed (0.00005”) for Z axis
Safety 24V control circuit power
SPECIFICATIONS
Working Capacity                              8" x 18"
Table Travel                                       19"
Saddle Travel                                     10.25"
T-Slot                                                 1-9/16"
Spindle Motor                                   3 HP
Spindle Speed                                   3450 RPM
Grinding Wheel                                 8" x 3/4" x 1-1/4"
Vertical Revolution                            0.0002" (0.00005" on Microfeed Dial)
Vertical Revolution                            0.050"
Spindle To Table                                18"
Net Weight                                        1700 Lbs
Gross Weight                                     1900 Lbs
Standard Accessories
Grinding wheel & wheel flange
Wheel balancing base & wheel balancing arbor
Diamond table dresser base and tip
Leveling bolts and pads
LED Work light
Toolbox with tools
Optional Accessories
Digital Readout System (View Brochure)
Fine pole electric chuck & control
Permanent chuck
Dust-suction coolant system
Overhead parallel dresser
Extra wheel flange
Rustlick coolant (1 Gal, Mixes 1:30)
