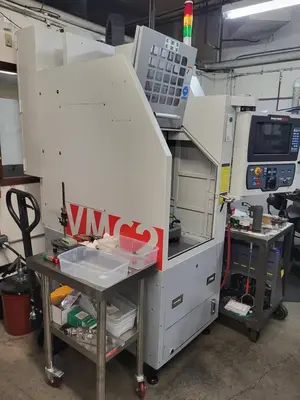

USED 2024 SOUTHWESTERN INDUSTRIES TRAK VMC 2

Equipped With
SOUTHWESTERN INDUSTRIES TRAK VMC 2
New: 2024
Specifications:
Table Size :                   18″ x 15″
T-Slots (Number x Width x Pitch) :       4 x 0.629″ x 2.480″ (4 x 16 mm x 63 mm)
Travel (X, Y, Z Axis) with Soft Limits :    14″ x 12″ x 17″
Rapid Traverse (X, Y, Z) :          400 IPM in Toolroom Ops / 600 IPM in Production Ops
Spindle Taper :               30 Taper
Spindle Speed Range - Production Ops :   50 – 10,000 RPM
Spindle Speed Range - Toolroom Ops :    50 – 5,000 RPM
Spindle Nose Diameter :          2.2″
Tool Clamping Force (90 PSI) :       850 – 1,000 lbs
Tool Holder Type :            BT 30
ATC Tool Capacity :            8
Maximum Tool Weight (Incl. Holder) :    8 lbs
Maximum Tool Diameter :         2″
Tool Carrier Speed :            1.2 – 1.4 sec (front to back)
Tool Selection System :          Shortest path
Spindle Motor HP - Peak :         4.5 HP
Spindle Motor HP - Continuous :      3 HP
Power Requirements :          208V (208–240V acceptable), 3-phase, 30A
                     480V with transformer (440–520V acceptable), 3-phase, 15A
Maximum Weight of Workpiece :      500 lbs
Height of Table from Bottom of Bed :    34″
Min. Spindle Nose to Table Distance :    2.75″
Max. Spindle Nose to Table Distance :    20.25″
Spindle Center to Head Casting Face :    15.7″
Minimum Machine Height :         93″
Minimum Height to Fit Through Doorway :  93″
Maximum Machine Height (Head Up) :    101.5″
Length (Pendant Rotated 90°) :      88.25″
Overall Length (Cabinet Open 180° + Pendant 90°) : 113.5″
Footprint (Width x Length) :        30.5″ x 52″
Weight (Net / Shipping) :         2,825 / 3,175 lbs
Coolant Capacity :            15 gal
Coolant Pump Power :          1/4 HP
Air - CFM (at 90 PSI), SCFM :       2.5 CFM, 18 SCFM
Air Quality :               Air dried / water separator upstream of VMC

Lubrication Pump Capacity :        2 liters
Equipped with:

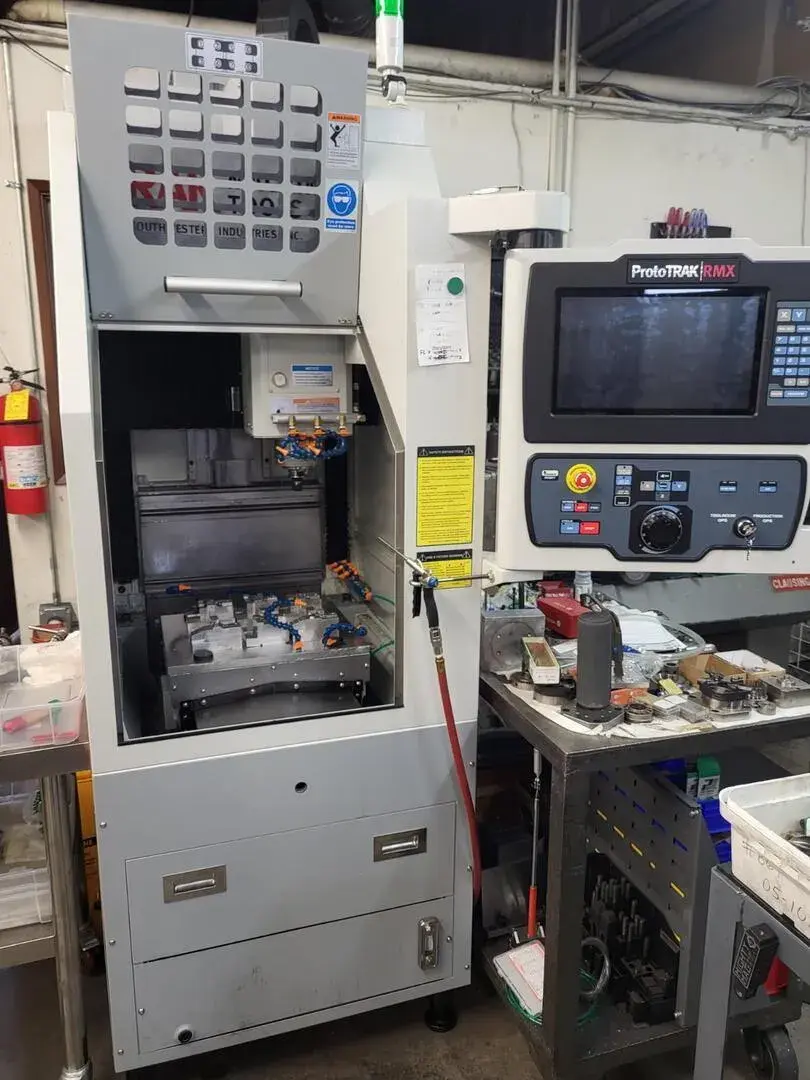

Prototrak RMX CNC Control
