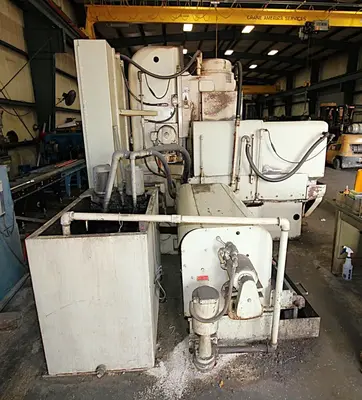

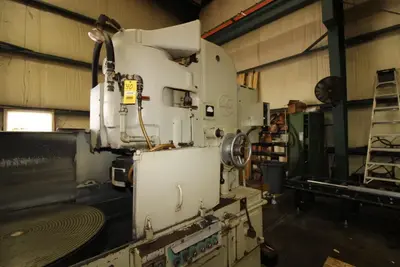

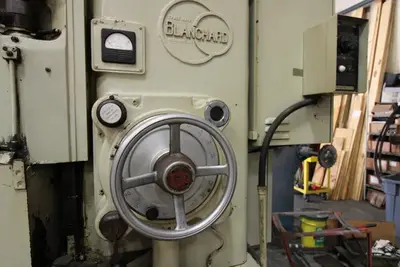

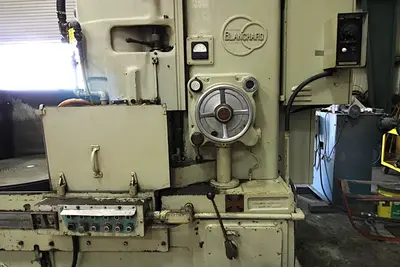

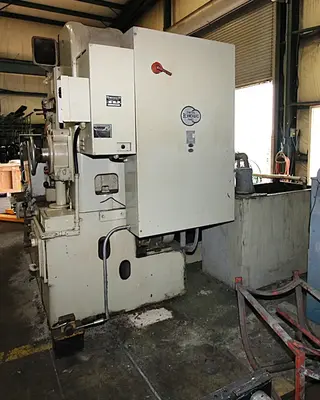

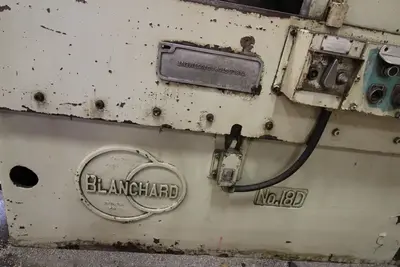

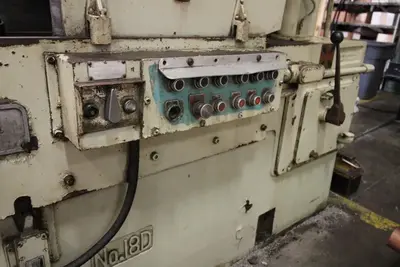

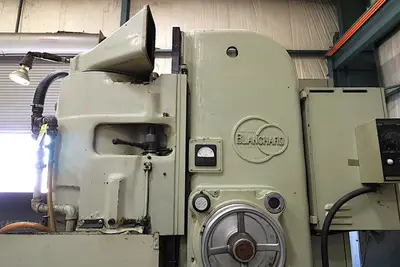

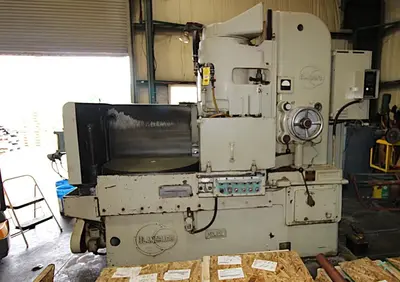

36" BLANCHARD "18D-36" VERTICAL SPINDLE ROTARY SURFACE GRINDER

Equipped With
36" BLANCHARD "18D-36" VERTICAL SPINDLE ROTARY SURFACE GRINDER
Serial No.11558
EQUIPPED WITH:
Vertical-Spindle Machine Design

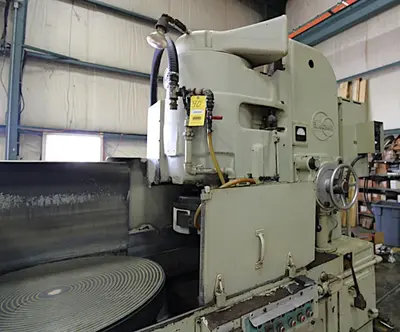

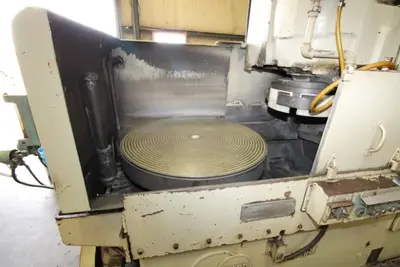

36" Diameter Magnetic Chuck w/Controls

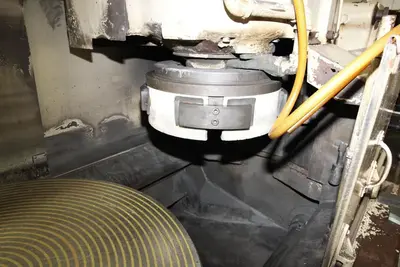

Segmented Grinding Wheel

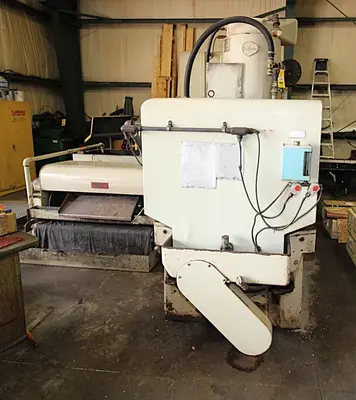

Coolant Filtration System
SPECIFICATIONS:
Magnetic Chuck, Diameter                      36"
Magnetic Chuck Work Load Capacity 3000 LBS
Height Under Grinding Wheel, Maximum             12"
Grinding Wheel Diameter, Maximum  18"
Grinding Wheel Speeds, Range                                  720 RPM
(6) Chuck Speeds, Range                                              6 to 33 RPM
Power Down Feeds, Range                                           .004 to .080 IPM
Spindle Motor, Horsepower                     25 HP
Electrical System                                          220-440/3/60
Overall Dimensions, W x D                       9'4" x 5'5"
Weight, Approximately                                                   12900 LBS
