The FANUC M-710ic/70 is a reliable industrial robot equipped with a FANUC R-30ib Plus controller. This used model features a 70 kg payload capacity and an extensive reach of 2050 mm, making it suitable for various applications. With high precision indicated by a repeatability of ±0.04 mm, it ensures accurate and consistent operations.
This six-axis articulated robot includes necessary components such as cables, teach pendant, robot mount plate, dress out, and gripper. It is completely tested and ready for immediate shipment. The system supports seamless integration into existing processes, available for an additional fee.
The overall structure is robust with a mass of 560 kg, enabling the handling of heavy tasks with ease. The robot's joint speeds vary, with maximum speeds reaching up to 225°/s on multiple joints, offering versatile motion capabilities. Final inspection and runoff are available before shipping, and loading assistance onto a truck is provided at no extra charge.

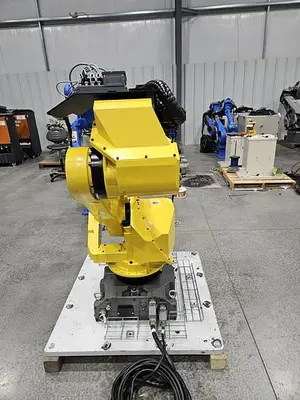

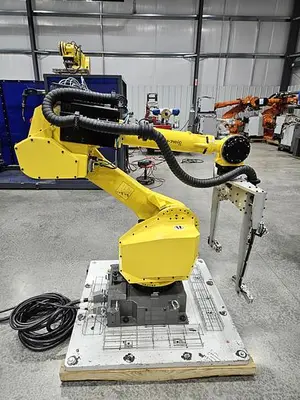

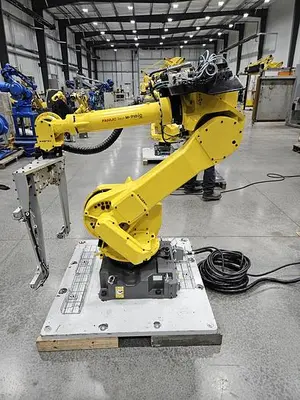

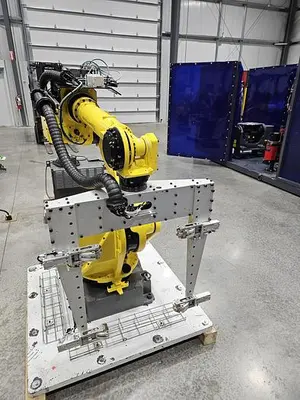

This FANUC M-710ic/70 industrial robot includes an R-30ib Plus controller. Robot includes everything pictured. robot mount plate, dress out, gripper. The system is available for inspection.

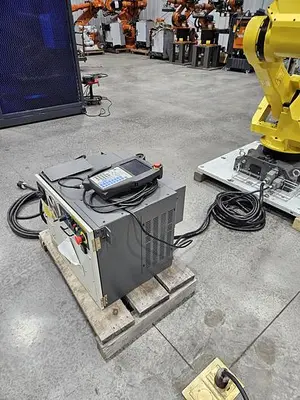

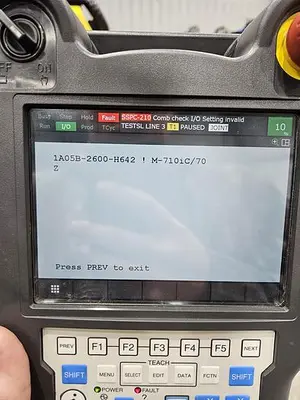

Robot shall be tested and complete with cables and teach pendant
Robot is ready to ship immediately
Final inspection and runoff available prior to shipping
Integration available for additional fees
Will load truck at no additional fee
Axes 6
Payload: 70 KG (154 lbs)
Reach: 2050 MM (80.70 in)
Repeatability: ±0.04mm
Robot Mass: 560 KG (1234.59 lbs)
Structure: Articulated
Robot Motion Speed
J2 160°/s
J2 120 °/s
J3 225 °/s
J4 225 °/s
J5 225 °/s
J6 225 °/s
Robot Motion Range
J1 - 360°
J2 - 225°
J3 - 440°
J4 - 720°
J5 - 250°
J6 - 355°

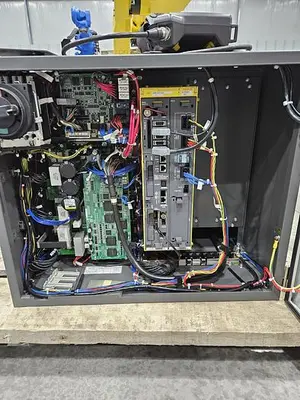

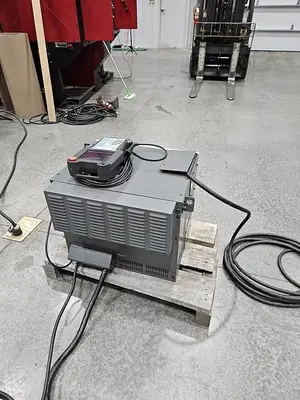

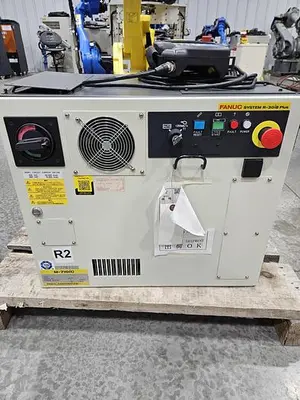

Controller: FANUC R-30ib Plus
Payload: 70 KG
Reach: 2050 MM (80.71 in)
Repeatability: ±0.04mm
Robot mass: 560 KG (1,234 lbs)
Structure: Articulated
