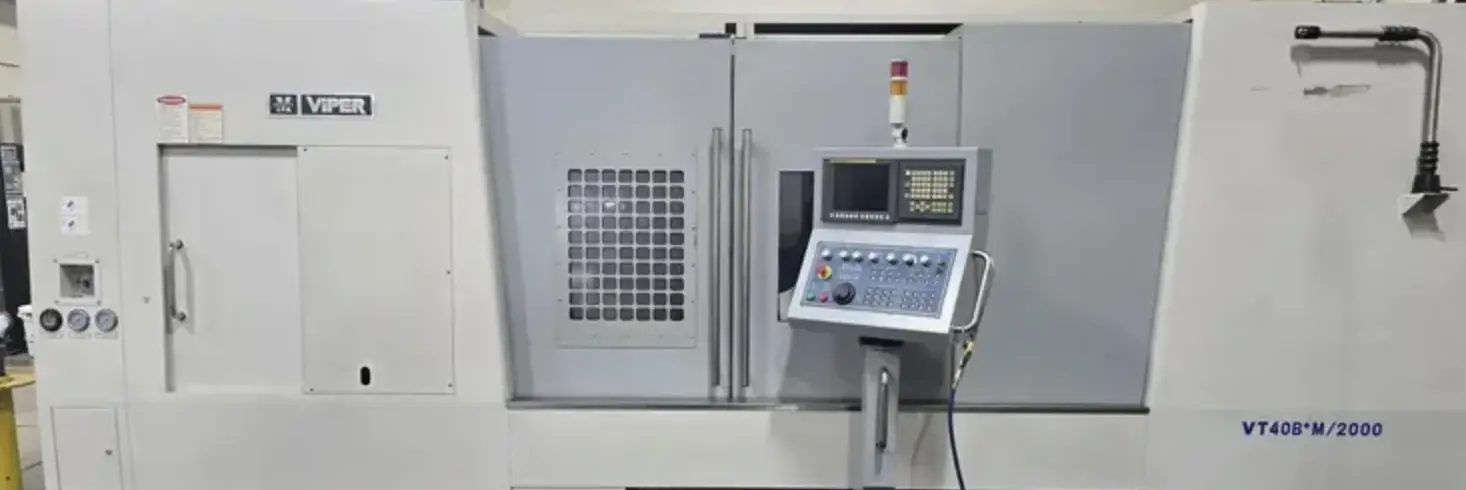

Used CNC Lathe with Fanuc CNC control, C-axis live tooling, 24" 3-jaw hydraulic chuck, and chip blaster system. Features include 7.4" bar capacity, 39.37" swing, and 1890 RPM spindle speed. 4525 run hours.
| Swing | 39.37" | 1,000 mm |
| Machining Length | 77.2" | 1,960.9 mm |
| Chuck Size | 24" | 609.6 mm |
| Bar Capacity | 7.4" | 187.96 mm |
| Power | 50 hp | 37.3 kW |
| Max RPM | 1,890 RPM | 1,890 RPM |
| Turning Dia | 34.6" | 878.84 mm |
| Tailstock | Yes | Yes |
| Live Tooling | Yes | Yes |
| Sub Spindle | No | No |
| Control | CNC (Fanuc) | CNC (Fanuc) |
Chuck Size 24"
Bar Capacity 7.4"
Swing 39.37"
Turning Diameter 34.6"
Spindle Speed 1,890 RPM
24'' 3-Jaw Hydraulic Samchully Chuck
Fanuc CNC Control
C-Axis Live Tooling
Rear Manual 3-Jaw with 8'' Thru Hole Spindle
Auto Tool Presetter
Tailstock
Chip Blaster High Pressure Coolant
Chip Removal Chip Conveyor
4525 Machine Run Hours
