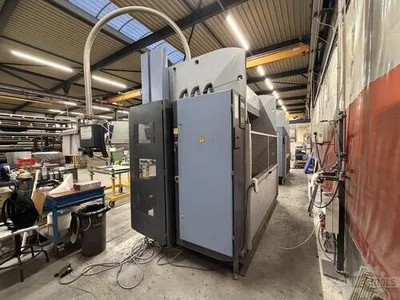

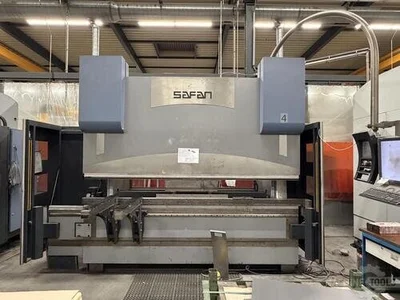

USED 2005 SAFAN H-BRAKE 120-3100 TS1

Capacity and flexibility. 120 T pressing force and 3100 mm bending length handle a wide range of parts in steel, stainless and aluminum.
Accuracy across the full length. Wila CNC Crowning and a throat depth of 400 mm help maintain consistent angles and reduce rework.

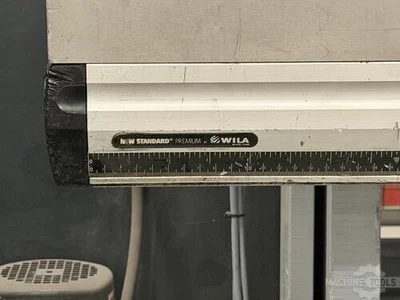

Fast setup. Wila New Standard hydraulic tool clamping speeds up tool changes and shortens lead times.
Controlled precision. Independent Y1 and Y2 with X, Z1, Z2 and central R provide multi axis control for precise positioning and repeatability.

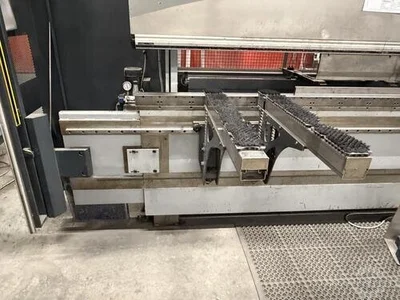

Operator friendly. Extended lower base positioning sheet arms support larger sheets and improve ergonomics.
Low risk purchase. Under power and from first owner, enabling inspection and test bending.
General metal fabrication and job shops requiring reliable forming capacity up to 3.1 meters
Production of enclosures, brackets, frames and profiles with repeatable angles
Batch and small series work where fast tool changes and consistent quality are essential
Processing of thin to medium thickness materials in steel, stainless and aluminum
Carefully selected machines with transparent specifications and condition
Directly inspectable used equipment, often under power
Support for installation, tooling options and logistics

Max. bending length: 3100 mm
Distance between column: 2550 mm
Max. pressing force: 120 T
Dis. Beam - Table: 470 mm
Beam stroke: 180 mm
Troth beam: 400 mm
Approch speed: 200 mm/min.
Working speed: 10 mm/min.
Return speed: 120 mm/min.

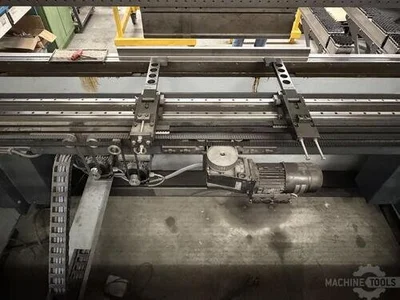

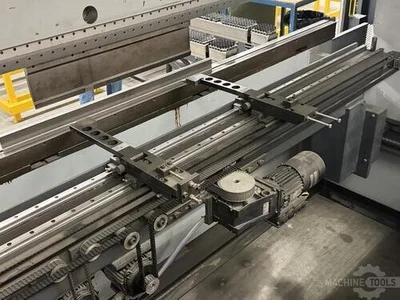

Adjustment X-Axis back gauge: 1000 mm
Number of controlled axis: Y1 / Y2 / X/ Z1 / Z2 / R-Central

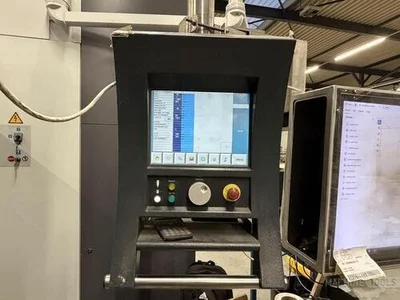

Control: TS1
Crowning: Yes
Hydraulic toolclamping: Yes
Power: 7.5 kW
Length: 5700 mm
Width: 1800 mm
Height: 3100 mm
Weight: 9650 kg
