Equipped With

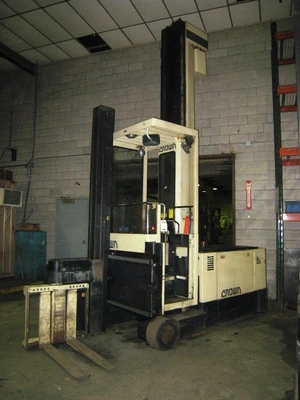

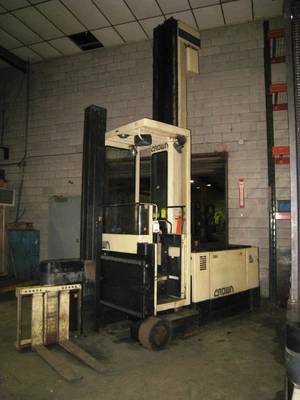

4000 LB CROWN MODEL 40TS-S VERY NARROW-AISLE TURRET SIDELOADER
Serial No. 1A105089 New 1990
The 40TS Series is a high-output, heavy-duty truck that handles loads up to 4000 lb. and reaches rack beams up to 42 feet. It actually has set the industry standard for durability and pounds moved per inch. With an 81" auxiliary lift and a host of features to boost productivity, the Crown TS is the one pallet handler that keeps your output high from floor level to 543".
EQUIPPED WITH

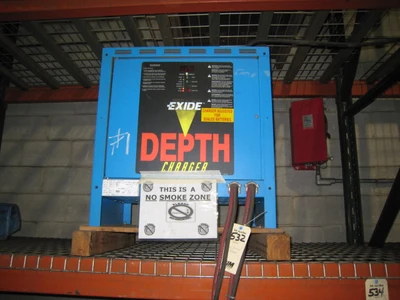

Battery ChargerWire Guidance
Extended Aux. Lifting Heights
72 Volt Electrical System
SCR Controlled Lift and Drive Motors
Electric Power Steering
Emergency Power Disconnect
Chain Slack Sensors
Battery Discharge Indicator With Lift Interrupt
Max. Travel Speed Programmed To Meed Application''s Specs
Swivel Seat With Height Adjustment
Hinged Cab Door
Key Switch, Horn
Cab Lights
Rear View Mirror.
SPECIFICATIONS
Load Capacity 4,000 Lbs
Power 72-Volt (2x36V)
Operator Type Turret Sideloader
Tire Type Poly/Poly
Wheels (x=driven) 2/2x
Lift Height 351"
Collapsed Height 84"
Extended Height to Top of Cab 393"
Operator Compartment Lift 48"
Fork Length 42"
Pivot Speed 7 Sec
Traverse Speed 8" Per Second
Approx. Truck Weight 14,000 Lbs
