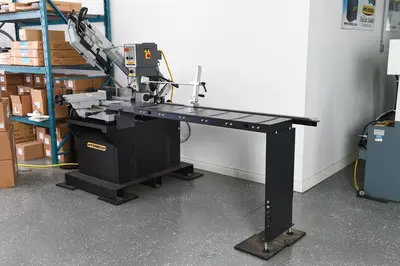

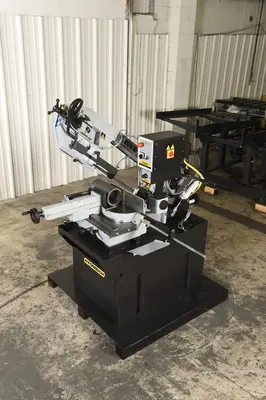

NEW HYD-MECH DM-10

Equipped With

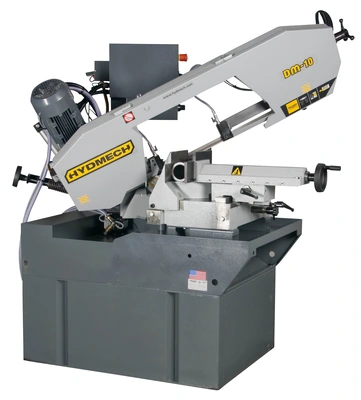

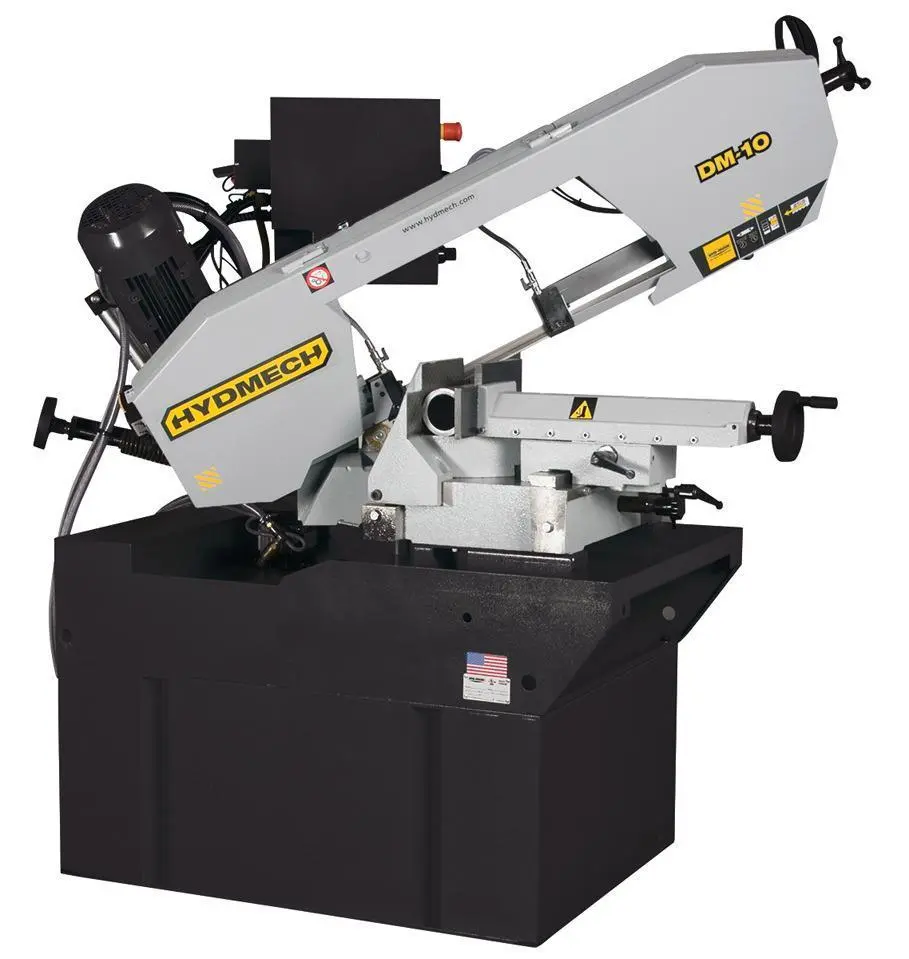

NEW 9.5"H x 11"W HYD-MECH MODEL DM-10 DOUBLE MITER BAND SAW

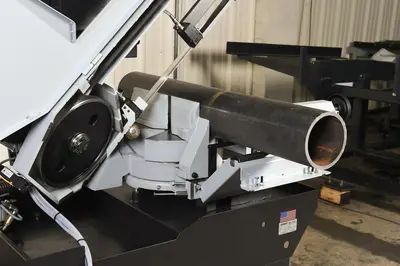

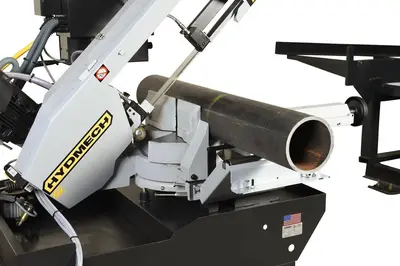

Exceptional cutting capability. This versatile saw saves operator set-up time and its compact design makes it ideal for use in tight working spaces. Its cast iron head and vises are designed for rigidity – absorbing vibrations and ensuring accuracy during cutting. A rotating table with single cut line allows head and blade groove to move together for smooth, accurate mitering.
From user-friendly operator controls, to easily accessible electrical panels and cabinets, the DM-10 double miter band saw is solidly built to provide maximum productivity
STANDARD FEATURES
Manually operated easy swing, cast saw head

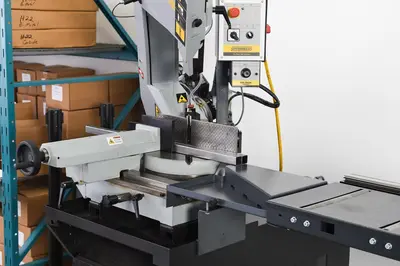

Quick release cast-iron vise with dovetail ways
Rotating table with cut line

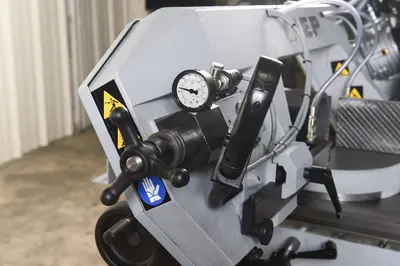

Band tension indicator
Manual gravity head feed
Replaceable blade brush
Small footprint
Robust steel base
Easy to read angle scale
Adjustable guide arm
Replaceable carbide guide inserts
Mechanical blade tensioning
Safety door interlocks
Flood coolant
Work stop
​
​OPTIONS
Mist lubrication
Pneumatic vise with foot     pedals
Single phase (Note: limits user to high blade speed only)
R2 Work stop for K110 table

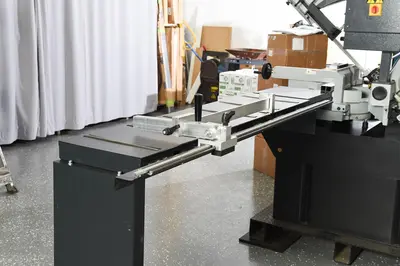

K110 5’ infeed/out feed roller
Adapter Plate for K110 table
SPECIFICATIONS
Rectangular Capacity at 90º
9.5"H x 11"W
Round Capacity at 90º
10"
Blade Dimensions
1" x 9'8"
Blade Drive
2/2.5HP VFD
Blade Speed
165-325 SFM
Coolant Tank Capacity
3.5 GAL
Machine Weight
970 Lbs
Machine Dimensions
28"W x 65"L x 58"H
