USED 2008 ENSHU EV450

Equipped With

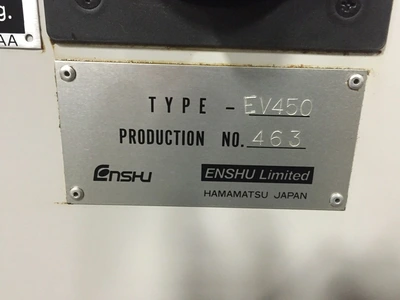

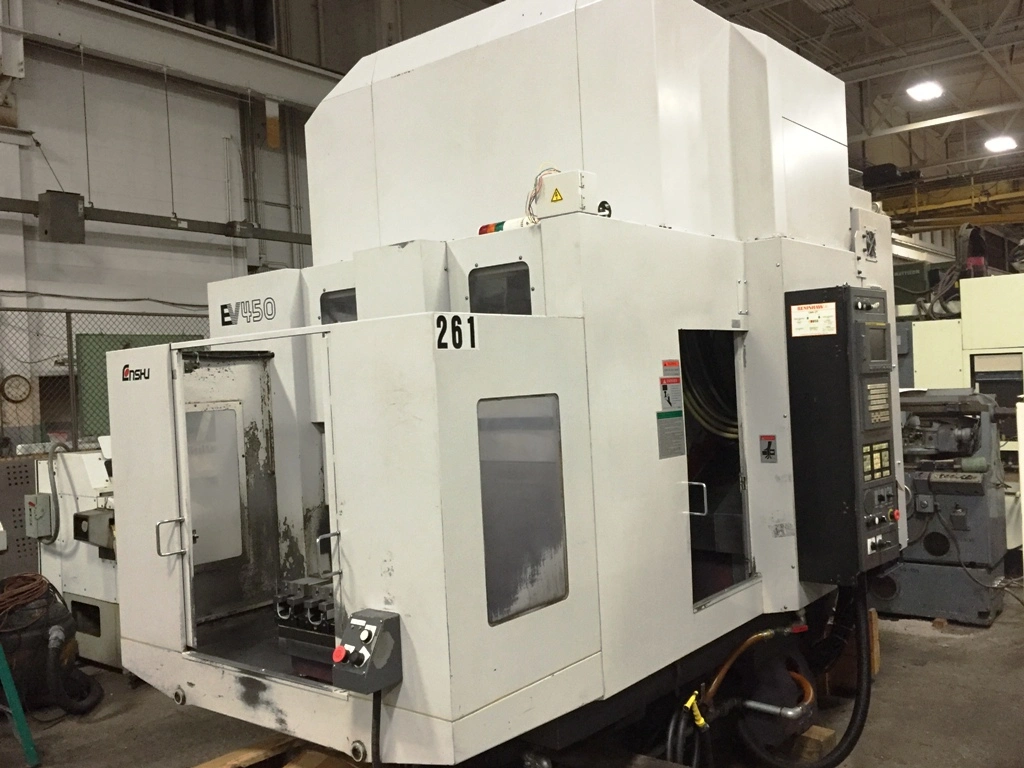

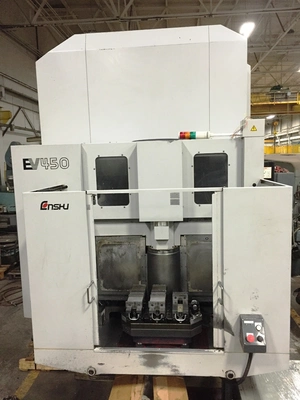

ENSHU MODEL EV450 3-AXIS VERTICAL MACHINING CENTER
New 2008
Motor Driven with 20/10 HP Dual Direct Drive Spindle, 3.8 HP Feed Motor

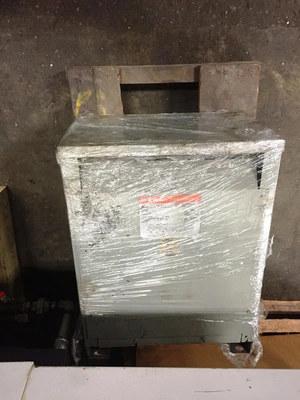

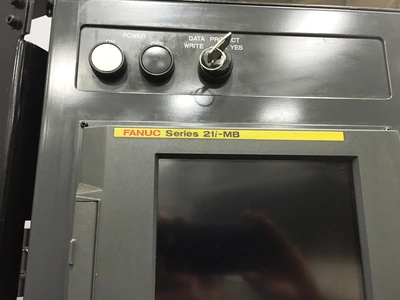

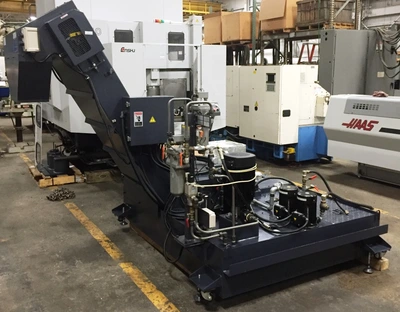

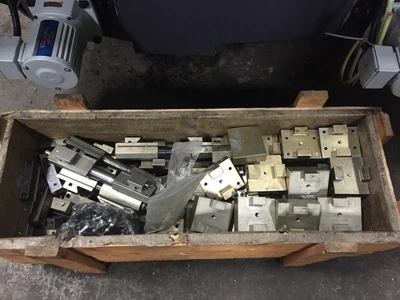

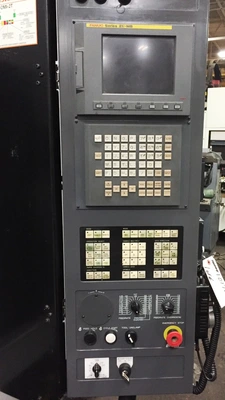

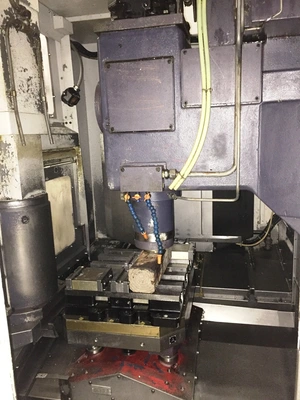

EQUIPPED WITH: Fanuc Series 21i MB CNC Controls, Rigid Tapping, Renashaw Probing, Tool Offset Memory C, (2) 20.9" x 15.7" Pallets, Rotary Type Pallet Change, Coolant Thru Spindle, MD Chip Conveyor, Leveling Pads, Several 6" Jergens Bock Interlocking Vises, Step Up/Step Down Transformer, Books and Manuals.
SPECIFICATIONS:
Number of Pallets  (2)
20.9" x 15.7"
Spindle
CAT 40
Spindle Speeds Range
40 - 10,000 RPM
Travels

         X - Axis
22"
         Y - Axis
17.17"
         Z - Axis
18.1"
Distance from Top of Table to Spindle
7.9" - 26"
Distance Front of Column to Spindle Center Line
20.1"
Feed Rates

Rapid Traverse    X, Y , Z
1,575 IPM
Cutting Feed Rate    X, Y, Z
0.04-591 IPM
Acceleration      X, Y , Z -G
0.5G
Thrust

                    X - Axis
674 Lbs.
                    Y - Axis
674 Lbs.
                    Z - Axis
1,100 Lbs.
Spindle Ramp Up Time
1.6 Sec.
Spindle Torque
70 Ft. Lbs.
Automatic Tool Changer
20
Tool Change Time (Tool to Tool)
1.0 Sec.
Tool Change Time  (Chip to Chip)
3.5 Sec.
Maximum Pallet Load
550 Lbs.
Pallet Change Time
4.8 Sec.
Approximate Dimensions
83" L - R x 96" F - B x 106"
Approximate Weight
9,900 Lbs.
