NEW HYD-MECH DM-1318P

Equipped With

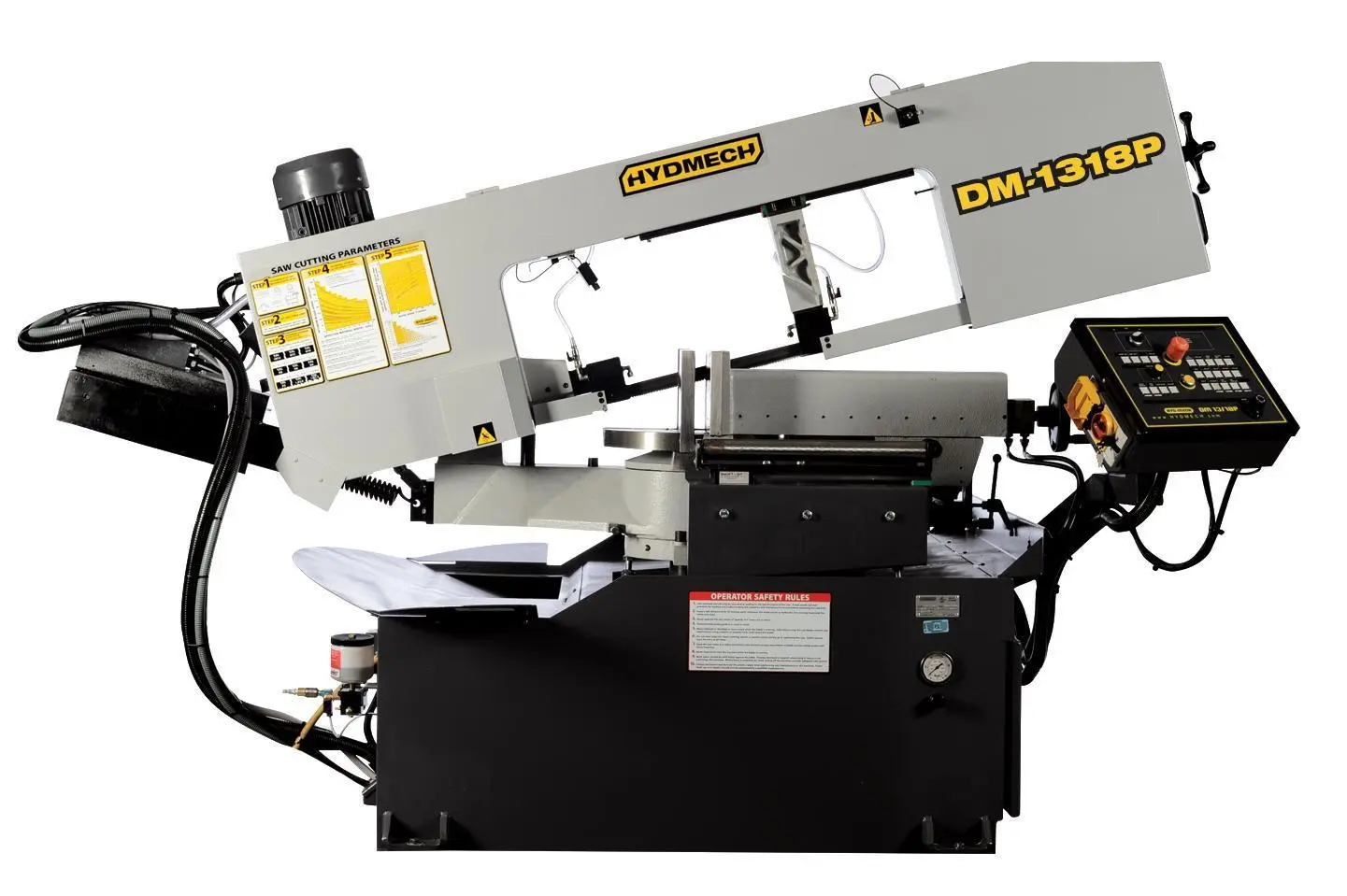

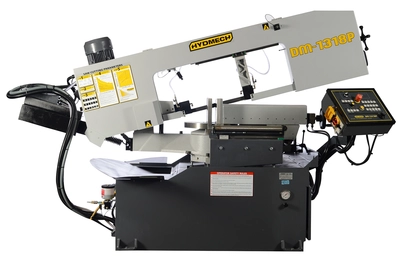

NEW 13"H x 17-3/4"W HYD-MECH MODEL DM-1318P DOUBLE MITER BAND SAW
he DM-1318P double miter, semi-automatic band saw provides exceptional miter cutting for medium duty applications.

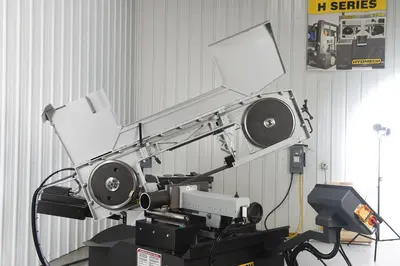

Its versatile swing head with easy to read angle scale, saves operator time. The heavy-duty gearbox and motor assembly ensures the DM-1318P will deliver maximum productivity. The cast iron double swivel head features an easy to read angle scale and “quick” stops at 90, 45, and 60 degree positions. The cast iron vise slides on linear ways which can be easily positioned to either the left or right side of the head and includes a quick release mechanism for rapid positioning.
Featuring a 13″H x 17 3/4″ W capacity at 90°, 5.5 HP motor, and 1 1/4″ blade, the DM-1318P is a versatile double miter band saw.
STANDARD FEATURES
Heavy duty cast iron saw head

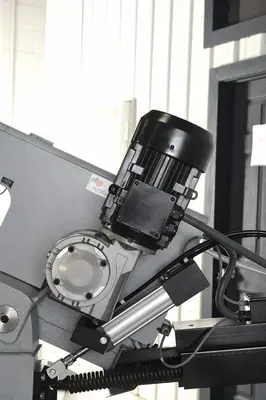

5 HP true direct blade drive – no belts/pulleys
On-demand hydraulics save energy
Quick release, hydraulic cast-iron vise on linear ways
Rotating table with cut line
Mechanical band tensioning with digital readout
Gravity head feed
Automatic hydraulic head lifting in semi-automatic mode

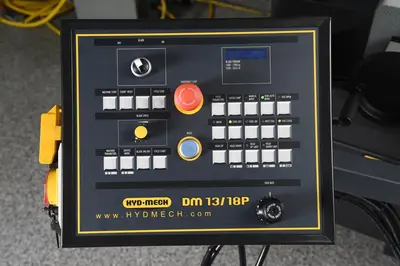

Swing away, semi-automatic control
Replaceable blade brush

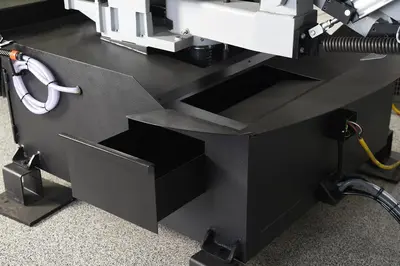

Robust steel base
Easy to read angle scale
Digital angle display
Adjustable guide arm
Replaceable carbide guide inserts
Safety door interlocks
Flood coolant
Laser light
OPTIONS
Mist lubrication
Work light
Variable vise pressure
Idler conveyors

SPECIFICATIONS
Rectangular Capacity at 90º
13"H x 17-3/4"W
Round Capacity at 90º
13"
Blade Dimensions
1-1/4" x 14'10"
Blade Drive
5.5HP VFD
Blade Speed
65-330 SFM
Coolant Tank Capacity
21 GAL
Machine Weight
2515 Lbs
Machine Dimensions
130"W x 69"L x 89"H
