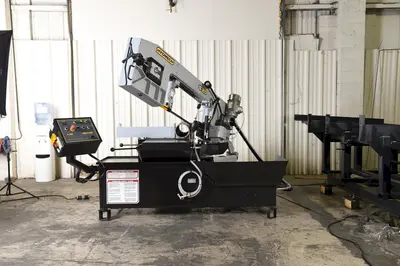

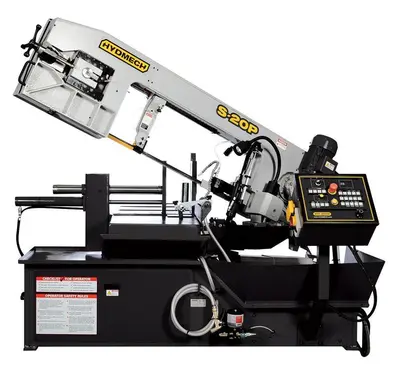

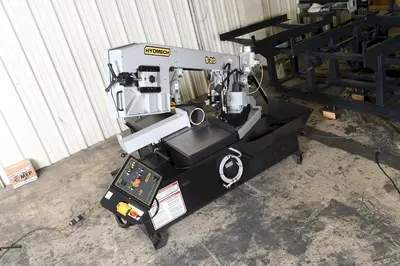

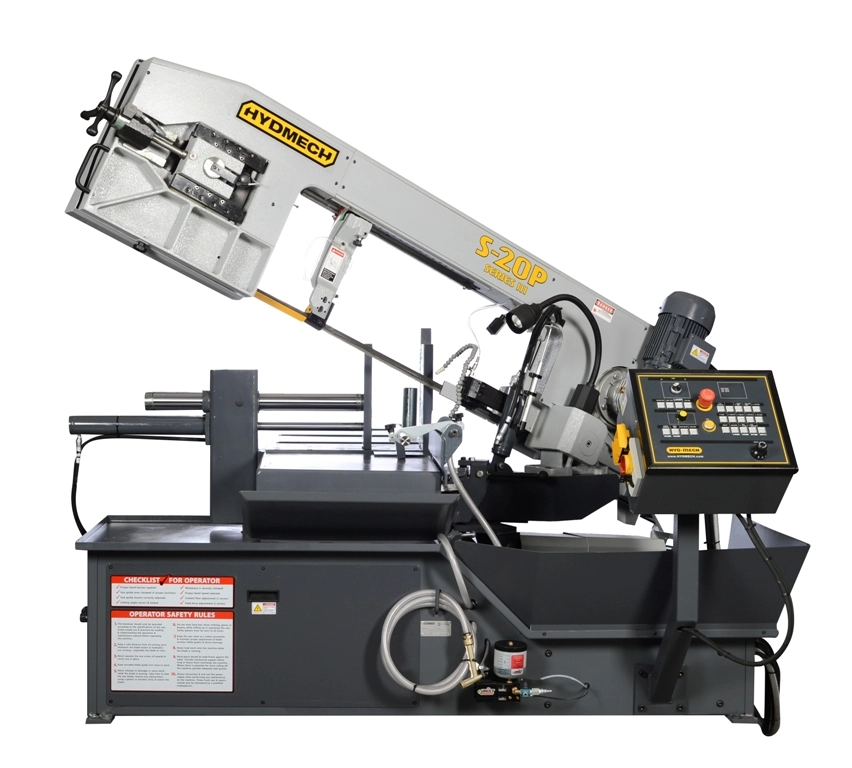

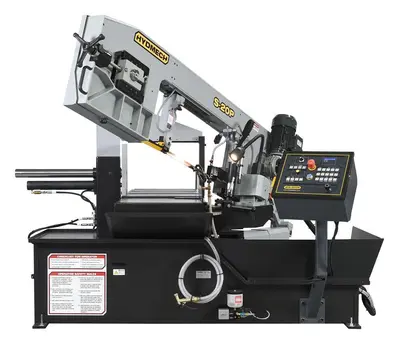

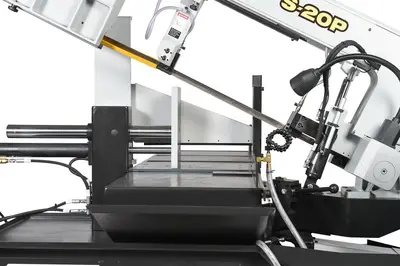

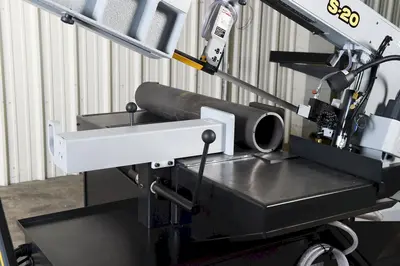

NEW HYD-MECH S-20P

Equipped With
NEW 13"H x 18"W HYD-MECH MODEL S-20 SEMI-AUTOMATIC HORIZONTAL PIVOT BAND SAW

The S-20P, semi-automatic scissor style band sawfeatures a swing head design and provides exceptional miter cutting capability for light to medium duty applications.
Its digital LCD display shows machine mode, pieces cut, blade speed, blade tension, amperage draw of blade motor, cut duration, overall machine run time, and head position.
Featuring a 13″H x 18″W capacity at 90°, 3 HP motor, and 1″ blade, the S-20P is a versatile semi-automatic scissor style band saw ideal for use in tight working spaces.

STANDARD FEATURES
Easy swing, heavy duty cast iron saw head
Full capacity, full stroking hydraulic vise

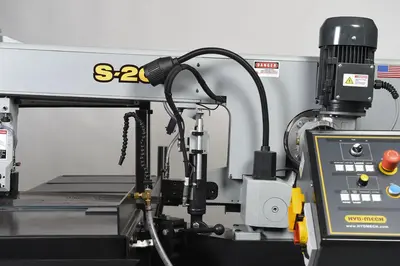

3 HP VFD. True direct blade drive – no belts/pulleys
On-demand hydraulics save energy
36” material in-feed roller table and 19” out feed table
Cast iron band wheels

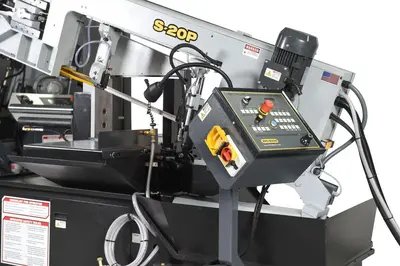

Swing away semi-automatic control

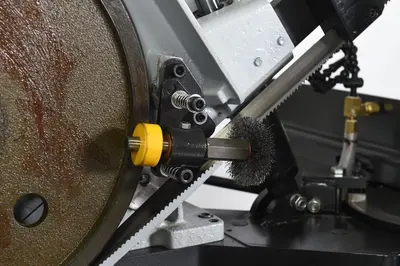

Replaceable blade brush
Robust steel base
Easy to read angle scale with angle locking mechanism
Cast iron guide arms. Idler side guide arm is adjustable and supported by linear rail.
Gravity head feed
Mechanical band tensioning with digital readout
Replaceable carbide guide inserts
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light
​
​ OPTIONS
Full capacity hydraulic overhead bundling
Work stop
Single phase – 220 v
Remote operator console
Mist lubrication
Variable vise pressure
Idler conveyors

SPECIFICATIONS
Rectangular Capacity at 90º
13"H x 18"W
Round Capacity at 90º
13"
Blade Dimensions
1" x 14"
Blade Drive
3HP VFD
Blade Speed
45-330 SFM
Coolant Tank Capacity
6 GAL
Machine Weight
2500 Lbs
Machine Dimensions
92"W x 75"L x 52"H
