NEW HYD-MECH S-23P

Equipped With

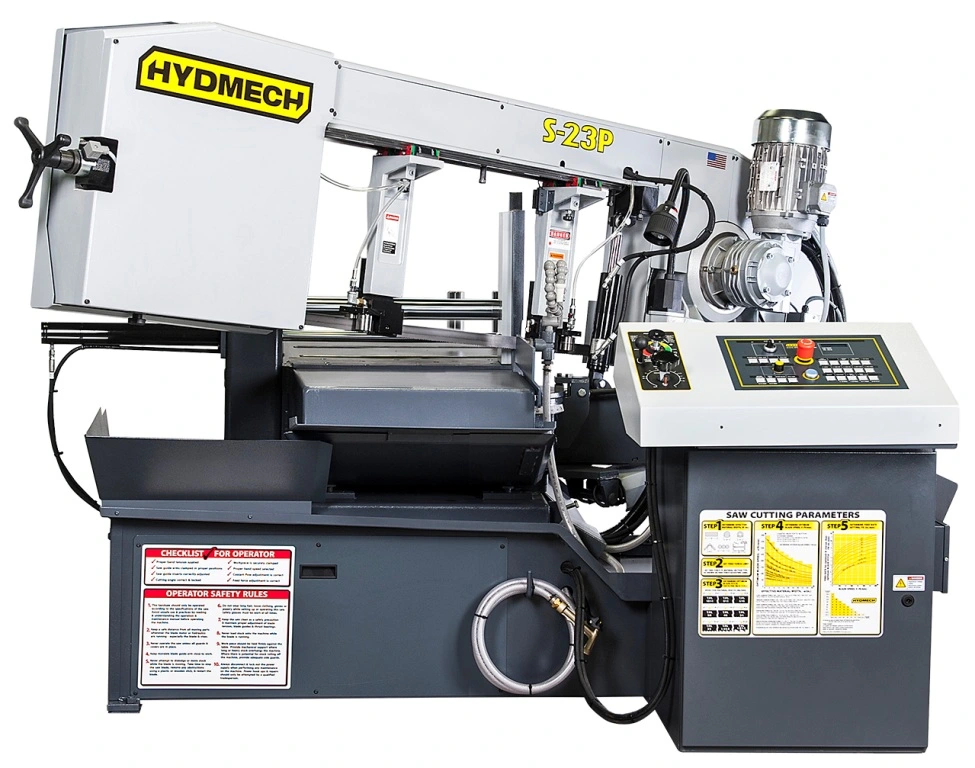

NEW 16"H x 20"W HYD-MECH MODEL S-23P SEMI-AUTOMATIC HORIZONTAL PIVOT BAND SAW


The S-23P is a semi-automatic horizontal pivot band sawproviding exceptional miter cutting capability for light to medium duty applications.
Featuring a semi-automatic mode control with an LED readout for blade speed, blade tension, parts counter, head height adjustment, laser light, amperage draw of blade motor, cut duration, head position, and  overall machine run time. All offered in several language choices.
An attractive option offered on this machine is the direct down feed option which provides easy adjustment of both head feed rate and cutting pressure.

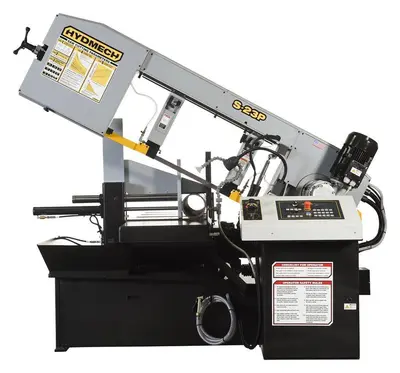

The S-23P miters from 90° to 60°. Featuring a 16″H x 20″W capacity at 90°, 5.5 HP motor, and 1 1/4″ blade, the S-23P semi-automatic horizontal pivot band saw is built solidly to give you maximum productivity.


STANDARD FEATURES
Semi-automatic PLC control
Easy swing, heavy duty cast iron saw head
Full capacity, full stroking hydraulic vise
8 HP VFD True direct blade drive – no belts/pulleys
On-demand hydraulics save energy
20” out feed table
Blade breakage switch
Cast iron band wheels
Replaceable blade brush
Robust steel base
Easy to read angle scale with angle locking mechanism

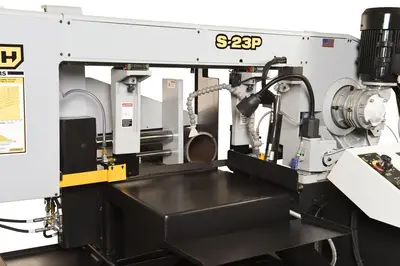

Cast iron guide arms. Idler side guide arm is adjustable and supported by linear rail.

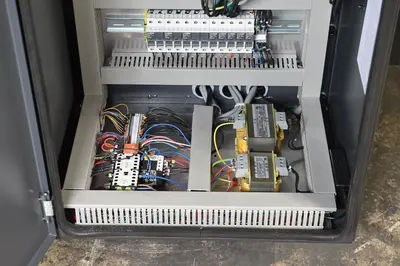

Easy access electrical panel
Hydraulic positive down feed
Mechanical band tensioning with digital readout
Replaceable carbide guide inserts
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light
​
​ OPTIONS
Full capacity hydraulic overhead bundling
Mist lubrication
Variable vise pressure
Work stop
Idler conveyors
SPECIFICATIONS
Rectangular Capacity at 90º
16"H x 20"W
Round Capacity at 90º
16"
Blade Dimensions
1-1/4" x 16' 10"
Blade Drive
8.8HP VFD
Blade Speed
75-350 SFM
Coolant Tank Capacity
9 GAL
Machine Weight
2900 Lbs
Machine Dimensions
96"W x 56"L x 56"H
