NEW HYD-MECH S-23A

Equipped With

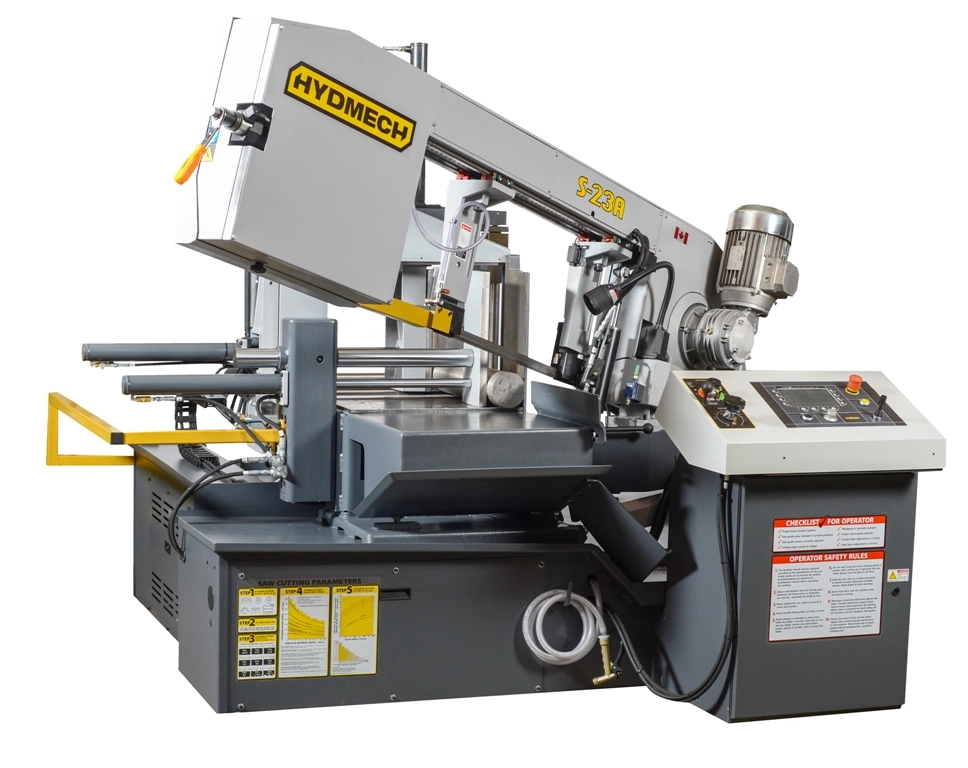

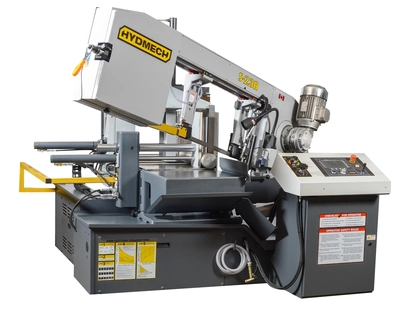

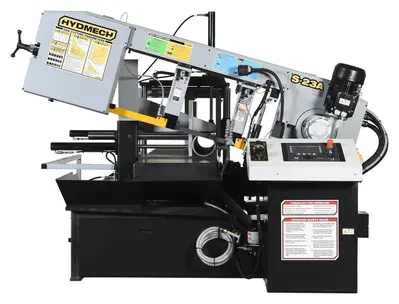

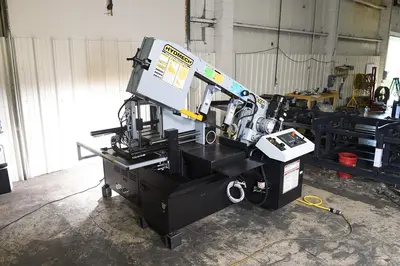

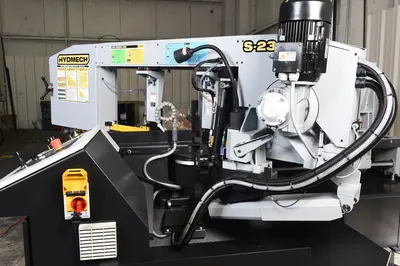

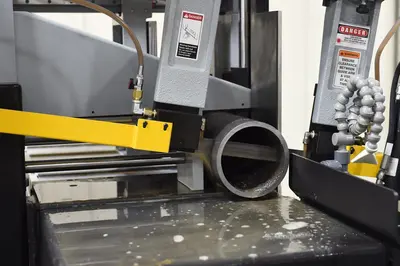

NEW 16"H x 20"W HYD-MECH MODEL S-23A AUTOMATIC HORIZONTAL PIVOT BAND SAW


The S-23A is an automatic scissor style band sawproviding exceptional miter cutting capability for medium duty applications.
Featuring an automatic mode control with an LED readout for blade tension, blade speed, blade height position, run time of the cut, blade drive motor amperage draw, part length, quantity required, piece count, job run time, total blade run time. All offered in several language choices.
The S-23A miters from 90° to 60°. Featuring a 16″H x 20″W capacity at 90°, 8.8 HP motor, and 1 1/4″ blade, the S-23A automatic scissor style band saw is built solidly to give you maximum productivity.

STANDARD FEATURES
Easy swing, heavy duty cast iron saw head
Cast iron shuttle features automatic multi-indexing up to 28.5” in a single stroke. Powered by ball screw and stepper motor.

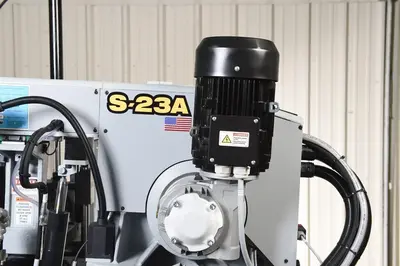

8 HP VFD. True direct blade drive – no belts/pulleys
On-demand hydraulics save energy
Blade chamber separates material from cut part
Cast iron band wheels
Automatic PLC, touch screen control programmable up to 100 jobs with 20 in queue

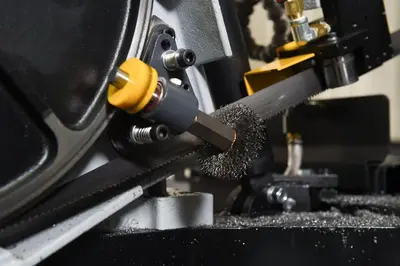

Replaceable blade brush
Robust steel base
Easy to read angle scale with angle locking mechanism
Cast iron guide arms mounted on linear rails is adjustable for proper spacing.

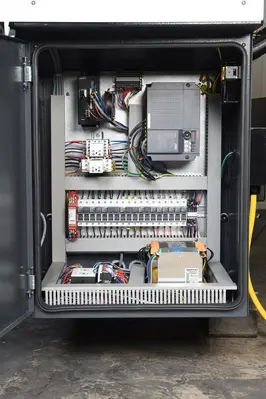

Easy access electrical panel
Out of stock switch
Mechanical band tensioning with digital readout
Hydraulic positive down feed
Replaceable carbide guide inserts
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light
​
​ OPTIONS
Full capacity hydraulic overhead bundling
Mist lubrication
Variable vise pressure
Remote Console
Powered Conveyors
Idler conveyors
SPECIFICATIONS
Rectangular Capacity at 90º
16"H x 20"W
Round Capacity at 90º
16"
Blade Dimensions
1-1/4" x 16' 10"
Blade Drive
8.8HP VFD
Blade Speed
75-350 SFM
Coolant Tank Capacity
12 GAL
Machine Weight
4200 Lbs
Machine Dimensions
101"W x 95"L x 61"H
