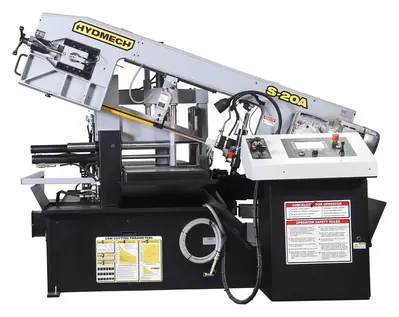

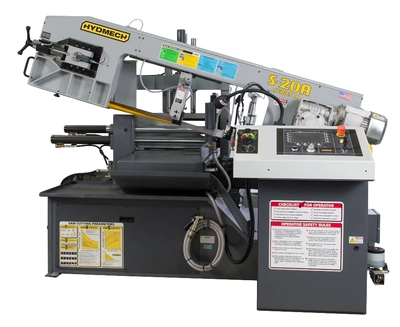

NEW HYD-MECH S-20A

Equipped With
NEW 13"H x 18"W HYD-MECH MODEL S-20 SEMI-AUTOMATIC HORIZONTAL PIVOT BAND SAW

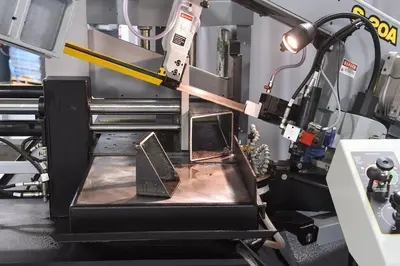

The S-20A, automatic scissor style band saw features a swing head design and provides exceptional miter cutting capability for light to medium duty applications.
Featuring a 13″H x 18″W capacity at 90°, 3 HP motor, and 1″ blade, the S-20A is a versatile, automatic scissor style band saw ideal for use in tight working spaces.

STANDARD FEATURES
Easy swing, heavy duty cast iron saw head

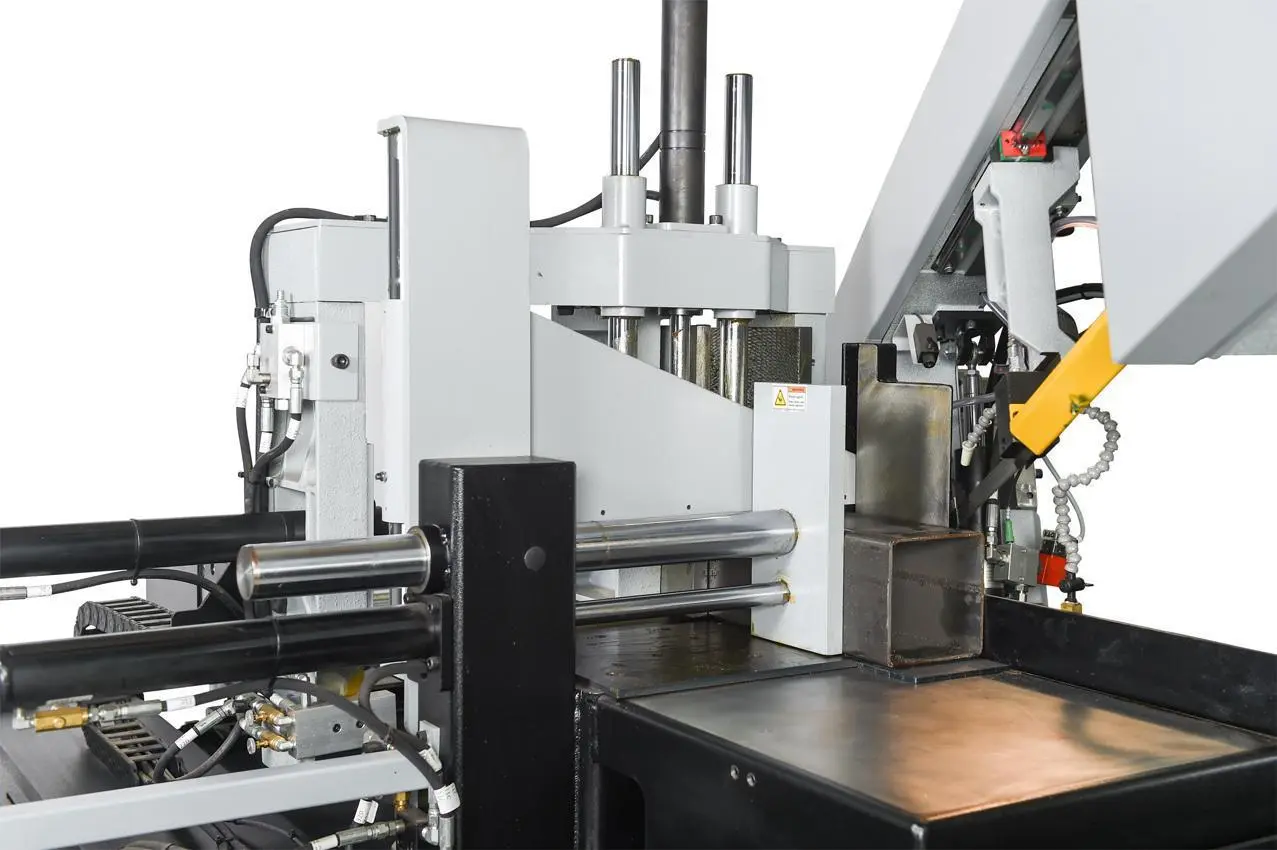

Cast iron shuttle features automatic multi-indexing up to 27” in a single stroke. Powered by ball screw and stepper motor.

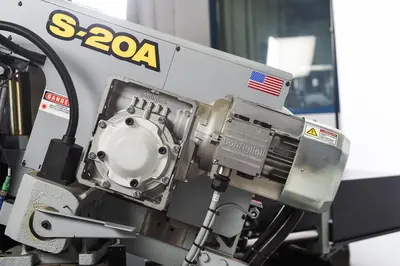

5 HP VFD. True direct blade drive – no belts/pulleys
On-demand hydraulics save energy
Blade chamber separates material from cut part

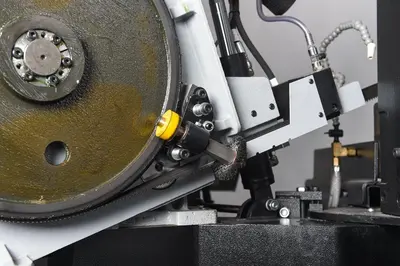

Cast iron band wheels

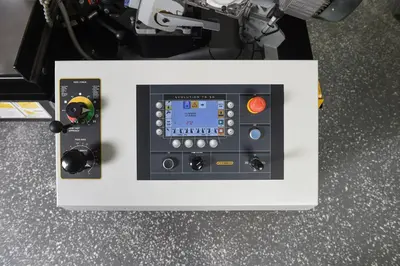

Automatic PLC, touch screen control programmable up to 100 jobs with 20 in queue
Replaceable blade brush
Robust steel base
Easy to read angle scale with angle locking mechanism

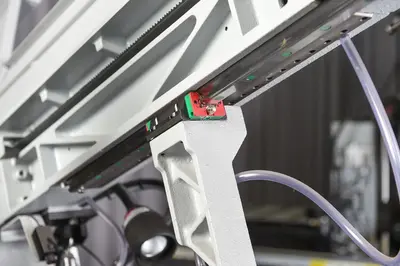

Cast iron guide arms mounted on linear rails is adjustable for proper spacing.
Easy access electrical panel
Out of stock switch
Mechanical band tensioning with digital readout
Hydraulic positive down feed
Replaceable carbide guide inserts
Safety door interlocks

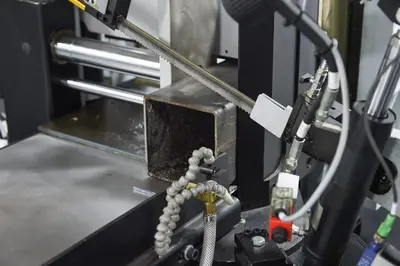

Flood coolant with wash down hose

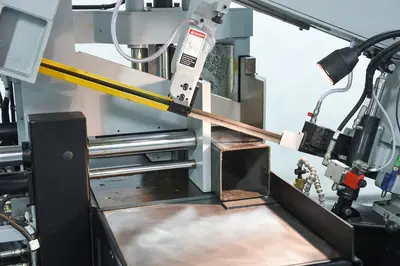

Laser light
Work light
​
​ OPTIONS
Full capacity hydraulic overhead bundling
Remote operator console
Mist lubrication
Variable vise pressure
Idler conveyors
Powered Conveyors
SPECIFICATIONS
Rectangular Capacity at 90º
13"H x 18"W
Round Capacity at 90º
13"
Blade Dimensions
1" x 14' 10"
Blade Drive
5HP VFD
Blade Speed
75-350 SFM
Coolant Tank Capacity
12 GAL
Machine Weight
3800 Lbs
Machine Dimensions
93"W x 86"L x 52"H
