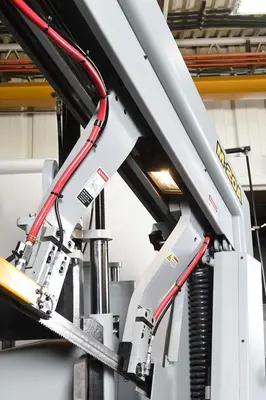

NEW HYD-MECH M-20A

Equipped With

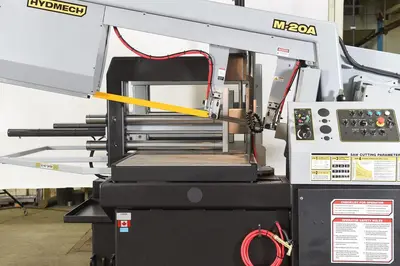

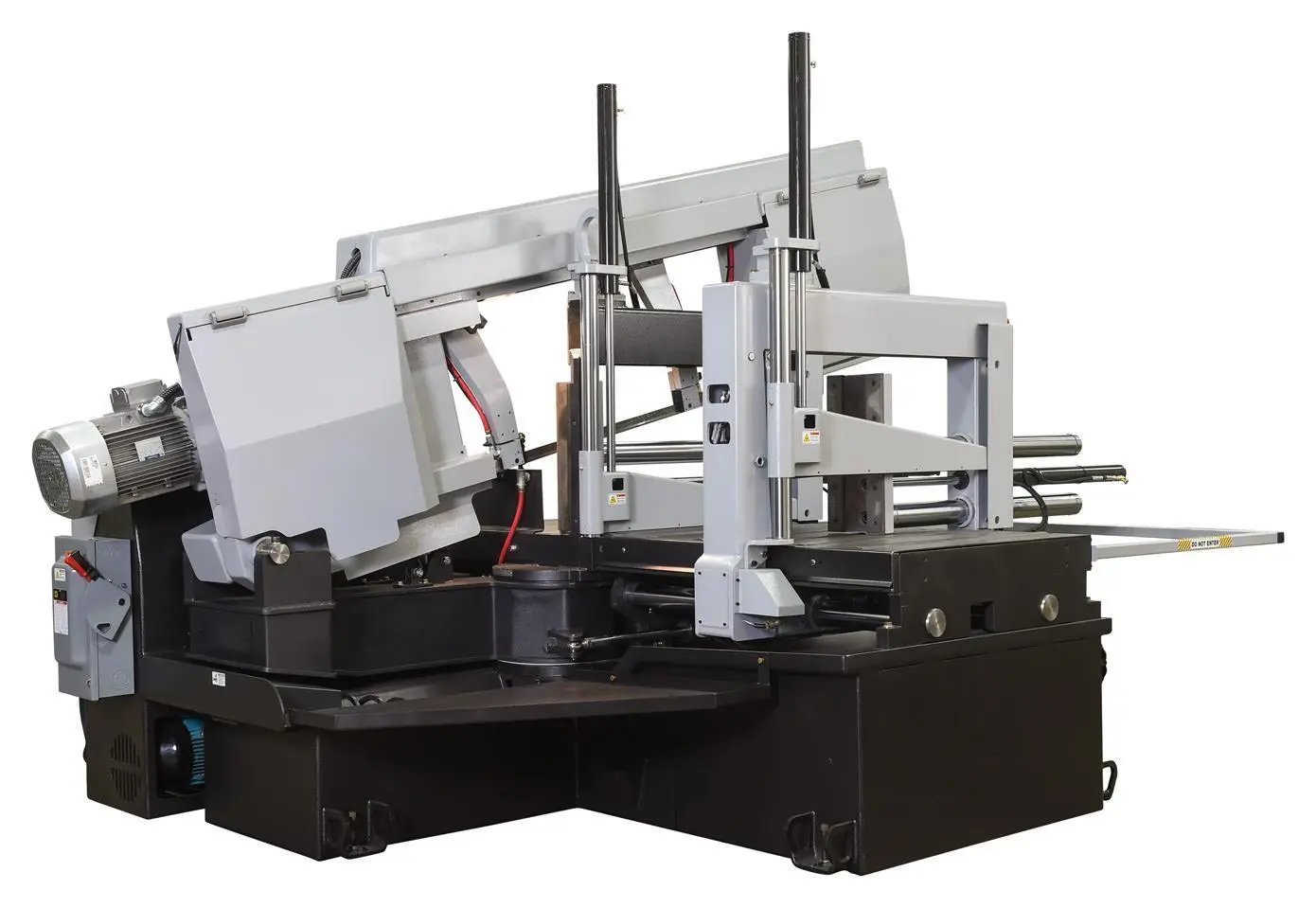

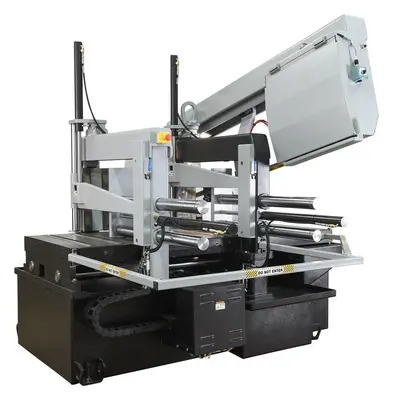

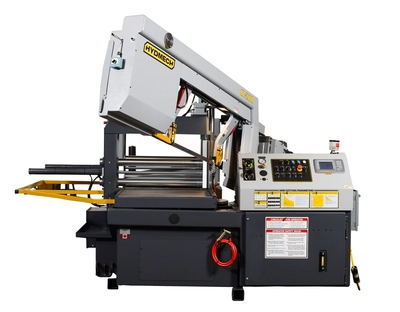

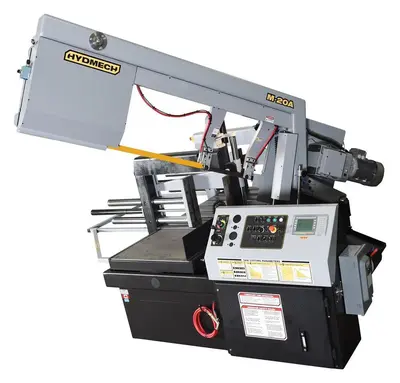

NEW 20"H x 30"W HYD-MECH MODEL M-20A AUTOMATIC HORIZONTAL PIVOT BAND SAW


The M-20A is an automatic horizontal pivot band sawproviding exceptional miter cutting capability for heavy-duty applications.
It features a powerful motor and gearbox with variable frequency drive to provide exceptional cutting performance on a wide range of material.
The M-20A band saws standard PLC 500 control features a “go to” function which allows for automatic alternating between programmed angles. The M-20A miters from 90° to 60°.
Featuring a 20″H x 30″W capacity at 90°, 10 HP motor, and 1 1/2″ blade, the M-20A is a reliable choice for your heavy-duty metal cutting applications.

STANDARD FEATURES
Automatic programmable mitering with “go to” angle functionality
Automatic multi-indexing up to 33” in a single stroke.
Steel guide arms mounted on linear rails. Hydraulically powered idler side guide arm is adjustable for proper spacing.
10 HP VFD. True direct blade drive – no belts/pulleys
Full capacity, full stroking hydraulic vises
Hydraulic positive down feed
Blade chamber separates material from cut part

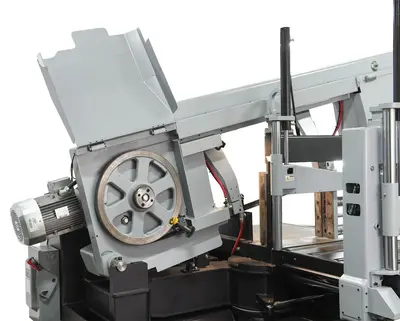

Cast iron band wheels

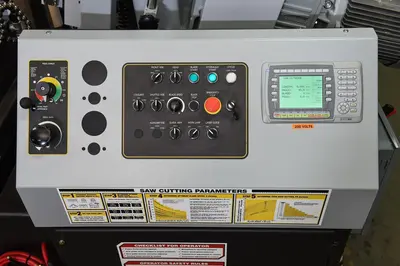

Automatic PLC control programmable up to 99 jobs with 5 in queue.
Replaceable blade brush
Robust steel base
Automatic chip removal auger

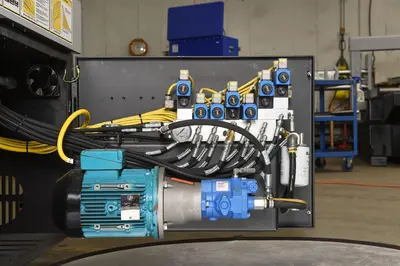

Easy access electrical panel and hydraulics
Blade breakage switch
Hardened replaceable wear plates on material vises
Hydraulic band tensioning
Hydraulic carbide guide tensioning
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light

​ OPTIONS
Blade deviation
Full capacity hydraulic overhead bundling
Remote console
Chip bucket
Mist lubrication
Out of stock switch
Outboard vise
Outboard vise with bundling
Variable vise pressure
Vertical rollers
Idler conveyors
Powered conveyors
SPECIFICATIONS
Rectangular Capacity at 90º
20"H x 30"W
Round Capacity at 90º
20"
Blade Dimensions
1-1/2" x 20' 6"
Blade Drive
10HP VFD
Blade Speed
50-350 SFM
Coolant Tank Capacity
9 GAL
Machine Weight
7700 Lbs
Machine Dimensions
140"W x 90"L x 66"H
