NEW HYD-MECH M-20A-120

Equipped With

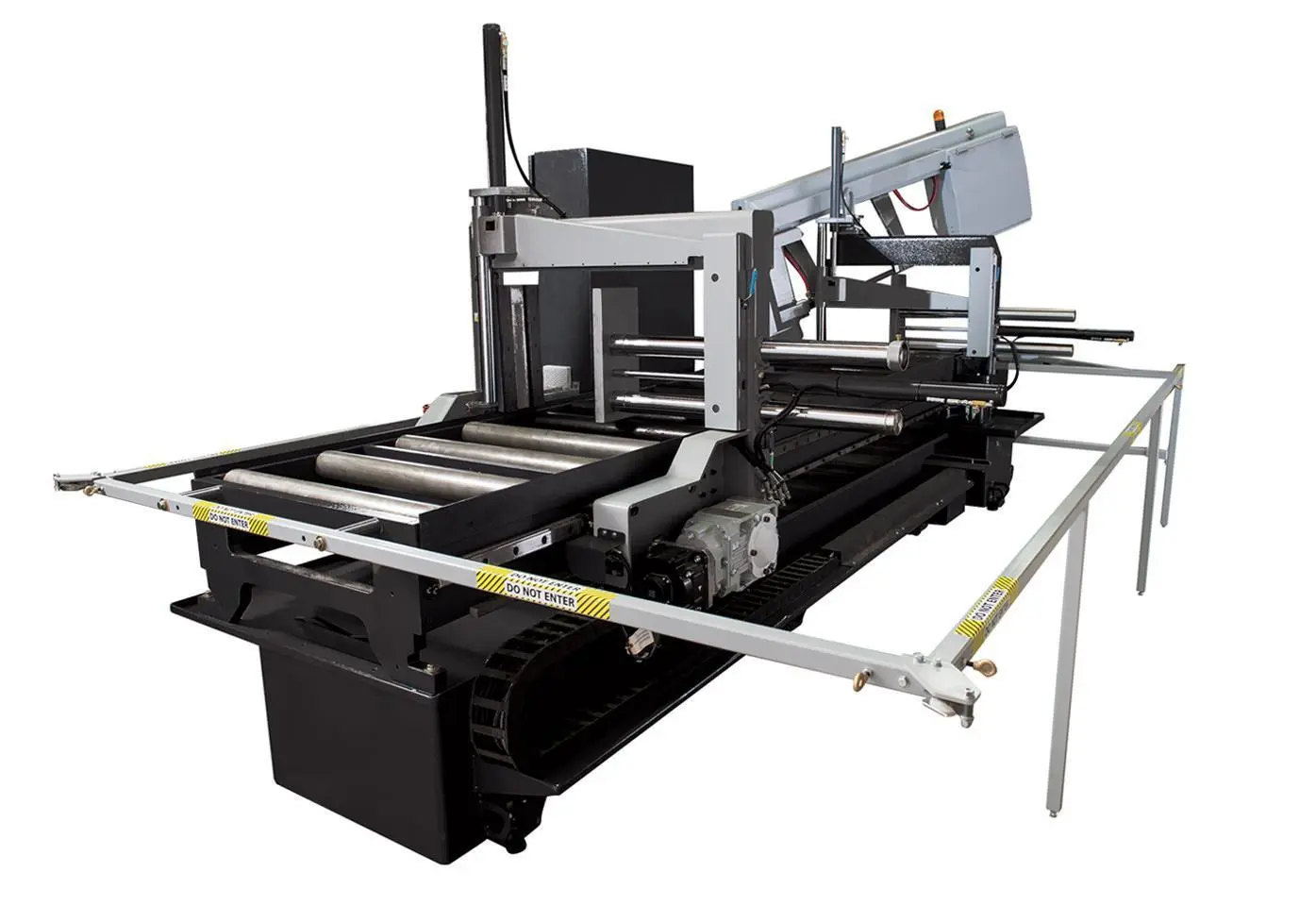

NEW 20"H x 30"W HYD-MECH MODEL M-20A-120 AUTOMATIC HORIZONTAL PIVOT BAND SAW

The M-20A-120 is a heavy-duty automatic horizontal pivot band saw, its ability to miter cut from 90 to 60 degrees makes it an excellent machine for large fabrication jobs.
The machines PLC controller can be easily programmed, storing up to 99 different cutting jobs and includes a Job Queue function. The simple programming and user friendly controls switches minimize set up time and affords cost effective production.
Equipped with a 120″ bar feed, its shuttle vise assembly capable of indexing up to 120” in a single stroke.
Featuring a 20″H x 30″W capacity at 90°, 10 HP motor, and 1 1/2″ blade, the M-20A-120 is a reliable choice for your heavy-duty metal cutting applications.

STANDARD FEATURES
Automatic programmable mitering with “go to” angle functionality
Full capacity hydraulic overhead bundling
10’ bar feed
Automatic multi-indexing up to 120” in a single stroke.

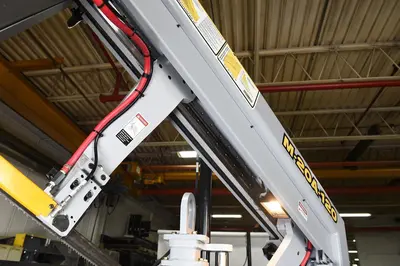

Steel guide arms mounted on linear rails. Hydraulically powered idler side guide arm is adjustable for proper spacing.

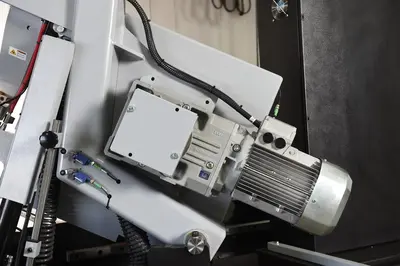

10 HP VFD. True direct blade drive – no belts/pulleys
Full capacity, full stroking hydraulic vises
Hydraulic positive down feed
Blade chamber separates material from cut part

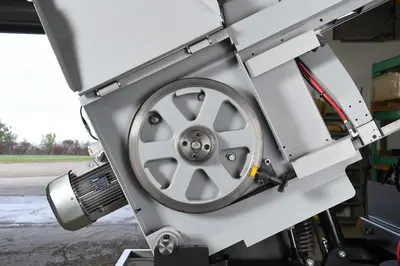

Cast iron band wheels
Automatic PLC, touch screen control programmable up to 1000 jobs with 20 in queue.
Replaceable blade brush
Robust steel base
Automatic chip removal auger

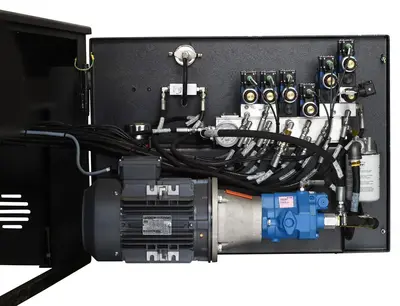

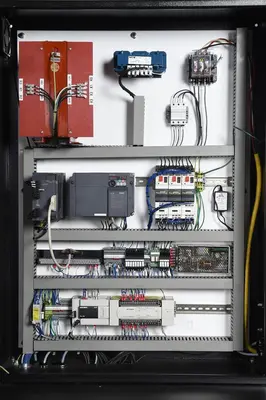

Easy access electrical panel and hydraulics
Blade breakage switch
Hardened replaceable wear plates on material vises
Hydraulic band tensioning
Hydraulic carbide guide tensioning
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light
​ OPTIONS
Blade deviation
Remote console
Chip bucket
Mist lubrication
Out of stock switch
Outboard vise
Outboard vise with bundling
Variable vise pressure
Vertical rollers
Idler conveyors
Powered conveyors
SPECIFICATIONS
Rectangular Capacity at 90º
20"H x 30"W
Round Capacity at 90º
20"
Blade Dimensions
1-1/2" x 20' 6"
Blade Drive
10HP VFD
Blade Speed
50-350 SFM
Coolant Tank Capacity
9 GAL
Machine Weight
12,700 Lbs
Machine Dimensions
129"W x 210"L x 89"H
