NEW HYD-MECH H-28A-120

Equipped With

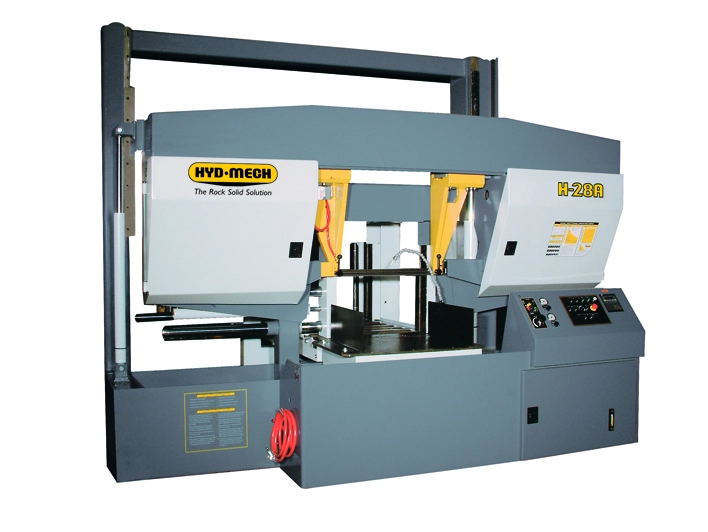

NEW 28"H x 28"W HYD-MECH H-28A-120 AUTOMATIC HORIZONTAL BAND SAW
The H-28A-120 is an automatic horizontal long bar feed band saw providing accurate 90° metal cutting for heavy-duty applications.

The H-28A-120 is fast, with its high speed shuttle feed indexing up to 120″ in a single movement with weight capacities up to 15,000 lbs. A 5 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head up/down, blade tension, guide arm, and shuttle movement.
Hyd-Mechs direct down feed system provides easy adjustment of both head feed rate and cutting pressure.
Featuring a 120″ bar feed, 24″ x 28″ capacity, 10 HP motor, and 2″ blade, the H-28A-120 is a reliable choice for all your heavy-duty horizontal metal cutting applications

SPECIFICATIONS
Rectangular Capacity At 90º
28"H x 28"W
Blade Size
2" x 25'
Blade Drive
10 HP VFD
Operation
Automatic
