NEW HYD-MECH V-20

Equipped With

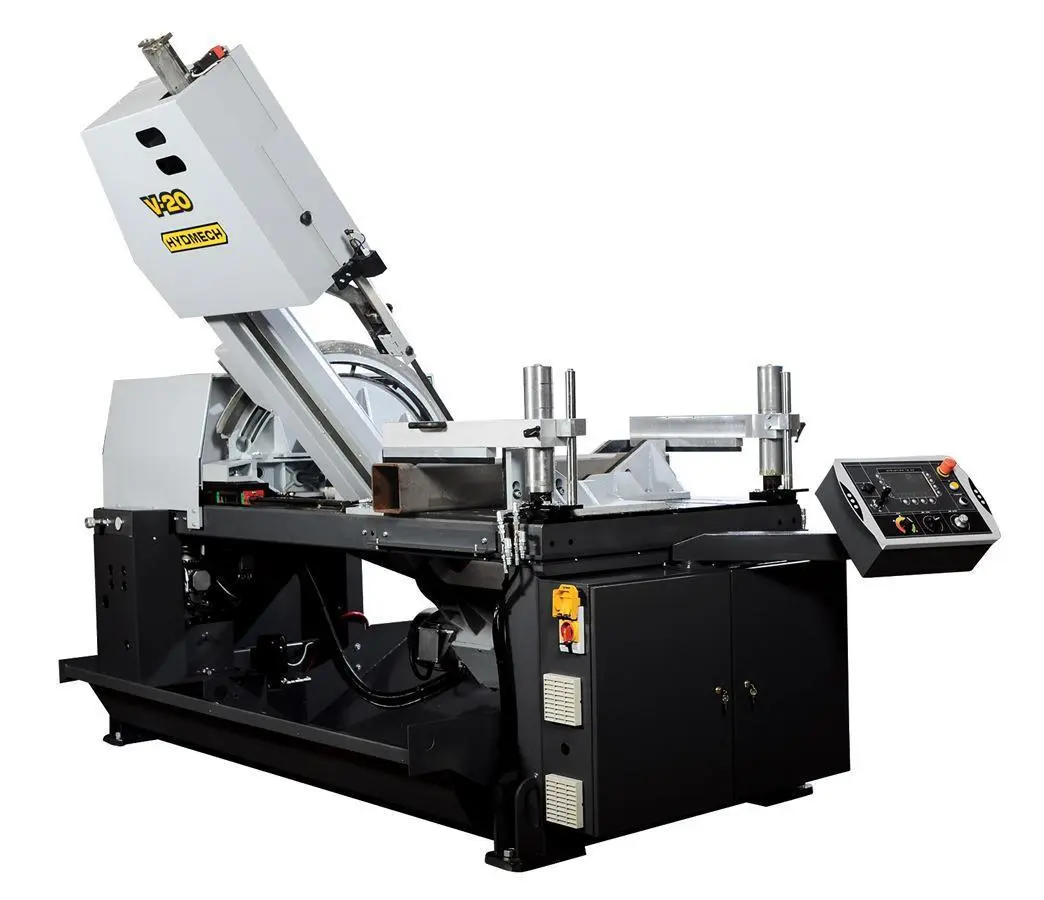

NEW - 25"H x 20"W HYD-MECH V-20 SEMI-AUTOMATIC VERTICAL TILT FRAME BAND SAW
The V-20 is a semi-automatic vertical band saw with the ability to miter from 60° left to 60° right.

Its standard 4-degree forward approach angle provides increased efficiency in cutting of structural materials. Conveniently located on an articulating console on the front of the machine. The NEW WINDOWS 5.0 Touch Screen NC controller operates the Semi-Automatic cycle and allows for Manual operation as well.  A wide variety of languages can be chosen for message screen display.
The double miter angle operation has an angle “Go To”function, which allows the operator to enter 2 desired angles up to 60 degrees and have the machine
Featuring a 25″H x 20″W capacity, 10 HP VFD motor, and 1 1/2″ blade, the V-20 is a reliable choice for all your vertical metal cutting applications.

STANDARD FEATURES
4° canted head allows for efficient cutting and improved blade life
Cast iron, torsion free saw head provides durability, stiffness, and absorbs vibrations
On-demand hydraulics save energy
High efficiency, constant torque electric ball screw feed system
Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right
Semi-automatic touch screen NC controller

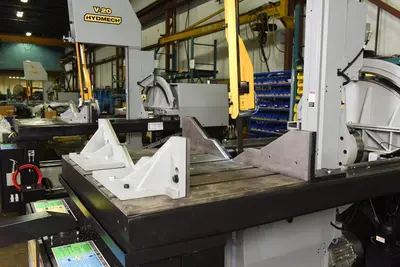

Two full stroking hydraulic vises

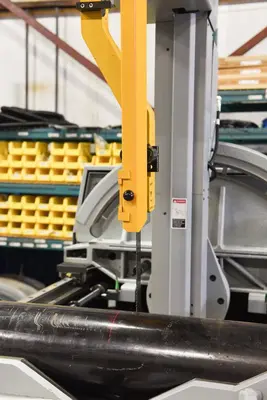

Electronic ball screw powered, guide arm
10 HP VFD. True direct blade drive – no belts/pulleys

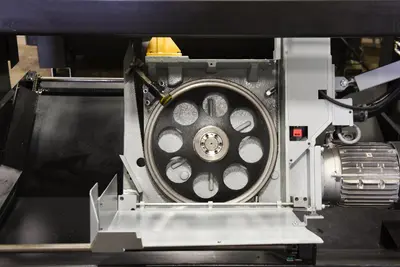

Cast iron band wheels
Replaceable blade brush
Robust steel base
Variable vise pressure

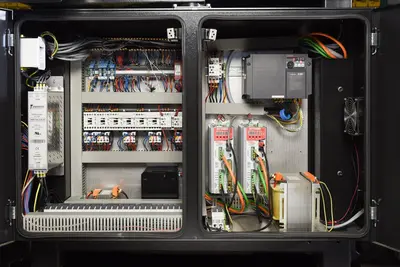

Easy access electrical panel and hydraulics
Electric chip conveyor
Blade breakage switch
Electronic band tensioning provides consistent, automatic blade tension
Replaceable carbide guide inserts
2 HP hydraulic pump provides system pressure
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light
OPTIONS
Hydraulic overhead bundling
Mist lubrication
Tall square vise inserts
Pop up feed roller and table
Idler conveyors
Powered conveyors
SPECIFICATIONS
Rectangular Capacity At 90º
25"H x 20"W
Round Capacity at 90º
20"
Blade Dimensions
1-1/2" x 19'3"
Blade Drive
10HP VFD
Blade Speed
65-400 SFM
Coolant Tank Capacity
20 Gal
Machine Weight
4200 Lbs
Machine Dimensions
70"W x 128"L x 112"H
