NEW HYD-MECH V-18APC

Equipped With

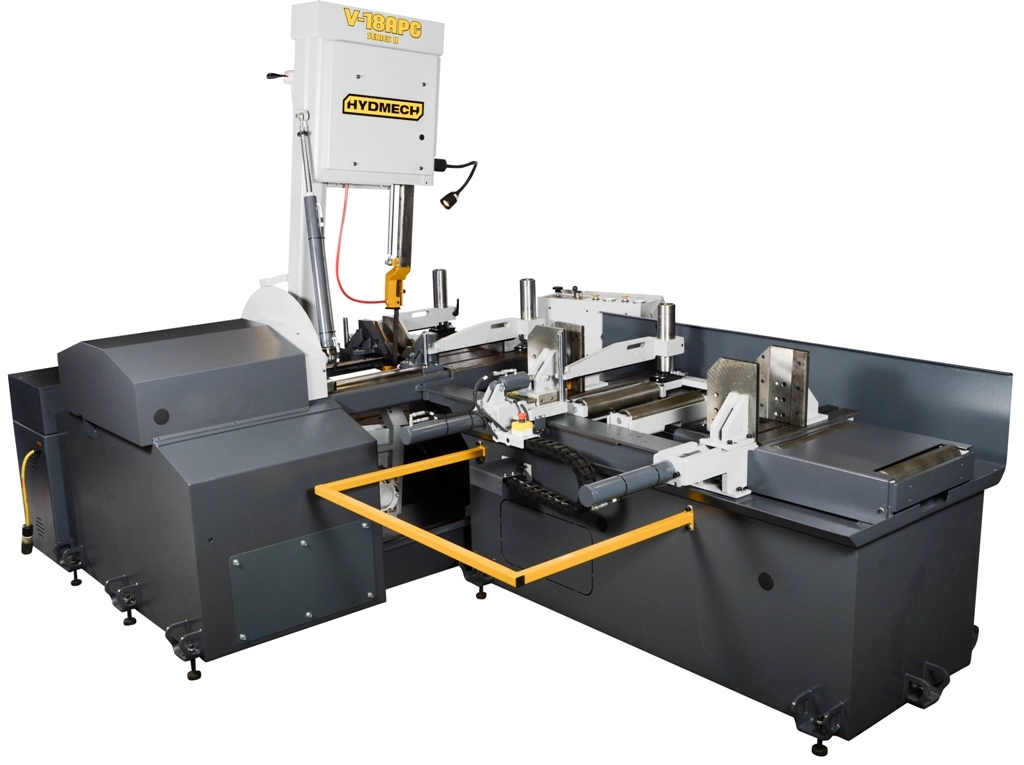

NEW - 31"H x 18"W HYD-MECH V-18APC AUTOMATIC VERTICAL TILT FRAME BAND SAW
The V-18APC is an automatic vertical band saw with the ability to miter from 45° left to 45° right.
The V-18APC is fast, with its high speed shuttle feed indexing up to 40″ in a single movement. A 2 HP driven hydraulic pump supplies system pressure through 3-position directional valves controlling all vising, head swing, head advance/retract, blade tension, guide arm, and shuttle movement. Its PLC control features storage of up to 99 jobs with the ability to run 5 in queue.
Featuring a 18″W x 31″H capacity, 7.5 HP motor, and 1 1/4″ blade, the V-18APC is a reliable choice for all your vertical metal cutting applications.

STANDARD FEATURES
Automatic programmable mitering with “go to” angle functionality from 45° left to 45° right
Two full stroking hydraulic vises and third squaring vise
Automatic multi-indexing up to 40” in a single stroke.
Hydraulically powered idler side guide arm
Automatic PLC control programmable up to 99 jobs with 5 in queue.
Drag chain chip conveyor
Hydraulic overhead bundling
5 HP VFD. True direct blade drive – no belts/pulleys
Hydraulic positive down feed
Blade chamber separates material from cut part
Out of stock switch
Cast iron band wheels
Replaceable blade brush
Robust steel base
Easy access electrical panel and hydraulics
Blade breakage switch
You choose left or right side infeed
Hydraulic band tensioning with digital readout
Replaceable carbide guide inserts
2 HP hydraulic pump provides system pressure
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light
OPTIONS
Fixed 6° canted head
Chip bucket
Hydraulic overhead bundling
Digital angle display
Mist lubrication
Pop-up lift roller
Variable vise pressure
Tall square vise inserts
Hydraulic chip conveyor
Idler conveyors
Powered conveyors
SPECIFICATIONS
Rectangular Capacity At 90º
31"H x 18"W
Round Capacity at 90º
17.5"
Blade Drive
7.5HP VFD
Blade Speed
65-385 SFM
Coolant Tank Capacity
20 Gal
Machine Weight
7500 Lbs
Machine Dimensions
168"W x 112"L x 97"H
Blade Dimensions
1-1/4" x 16'11"
