NEW HYD-MECH VW-18

Equipped With

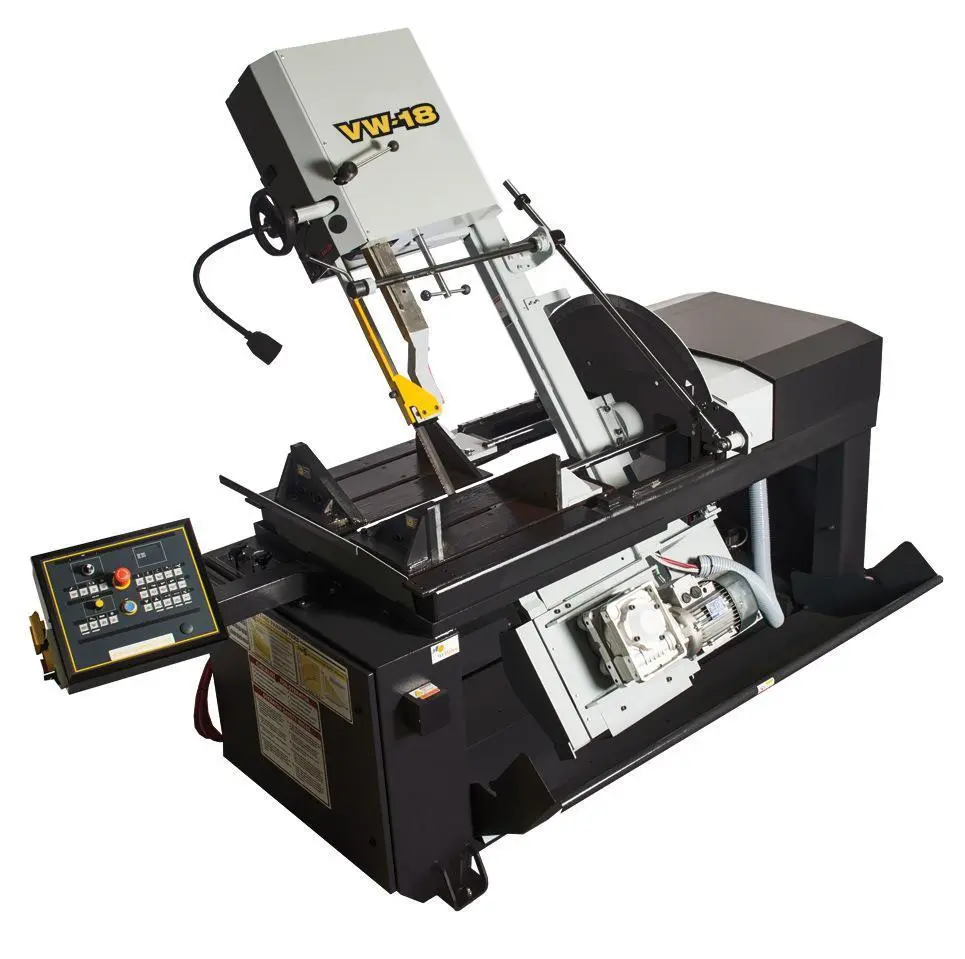

NEW - 22"H x 18"W HYD-MECH VW-18 VERTICAL TILT FRAME BAND SAW
The VW-18 II is a semi-automatic vertical band saw with the ability to miter from 60° left to 60° right.

This model is one of a kind in the HYDMECH line up with its saw head that can cut at 90° and be adjusted to cut at a 3° head cant.
Now available with optional powered head tilt and digital angle display.
Featuring a 22″H x 18″W capacity, 5 HP motor, and 1 1/4″ blade, the VW18 II is a reliable choice for all your light to medium-duty, vertical metal cutting applications.



STANDARD FEATURES
Adjustable 3° canted head
Double articulating, semi-automatic control

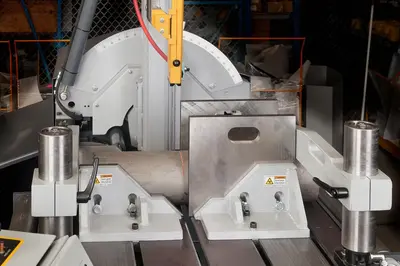

Two full stroking hydraulic vises
Manual precise head positioning from 60° left to 60° right
Digital angle display
Mechanically adjustable guide arm
On-demand hydraulics save energy
5 HP VFD. True direct blade drive – no belts/pulleys
Hydraulic positive down feed
Cast iron band wheels
Replaceable blade brush
Robust steel base

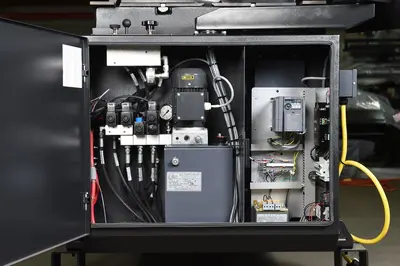

Easy access electrical panel and hydraulics
Blade breakage switch
Mechanical band tensioning with digital readout
Replaceable carbide guide inserts
5 HP hydraulic pump provides system pressure
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light
OPTIONS
Power tilt
Chip bucket
Hydraulic overhead bundling*
Mist lubrication
Work stop*
Tall square vise inserts
Variable vise pressure
Power transformer
Idler conveyors
*Bundling and work stop cannot be used at the same time
SPECIFICATIONS
Rectangular Capacity At 90º
22"H x 18"W
Round Capacity at 90º
17.5"
Blade Dimensions
1-1/4" x 16'3"
Blade Drive
5HP VFD
Blade Speed
65-385 SFM
Coolant Tank Capacity
12 Gal
Machine Weight
2700 Lbs
Machine Dimensions
36"W x 95"L x 96"H
