NEW HYD-MECH V-25APC

Equipped With

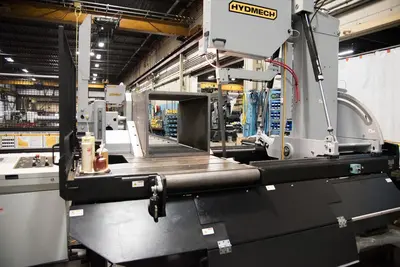

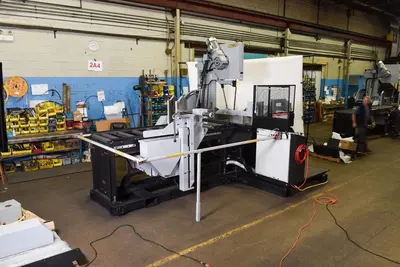

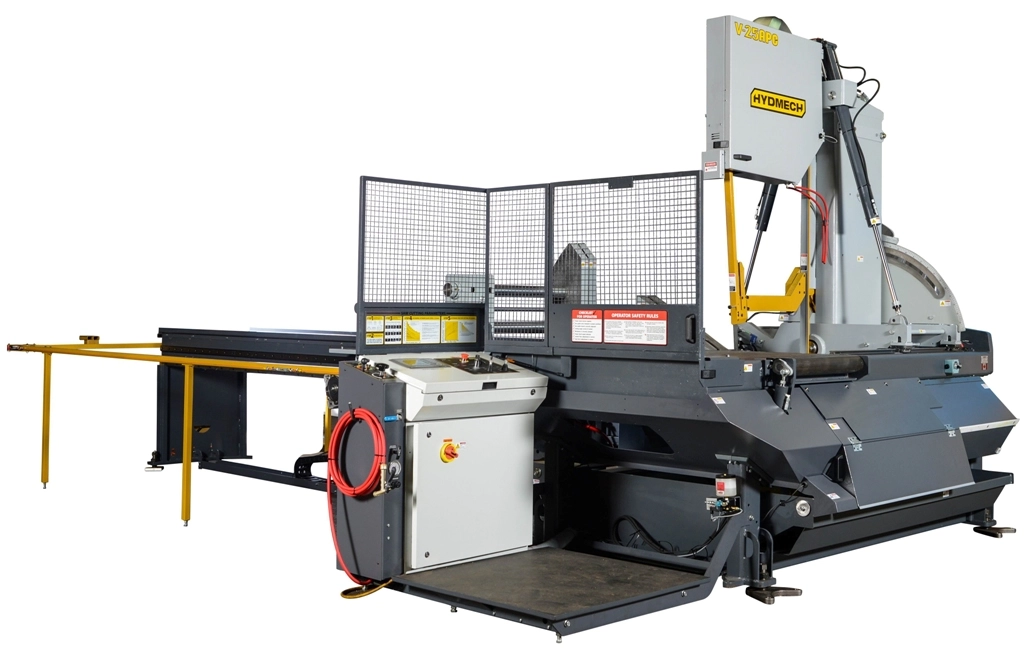

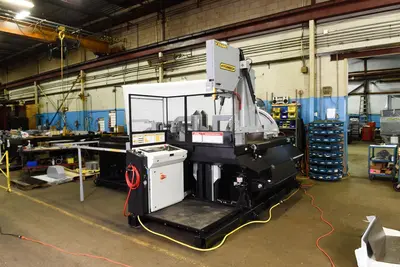

NEW - 30"H x 25"W HYD-MECH V-25APC SEMI-AUTOMATIC VERTICAL TILT FRAME BAND SAW
The V-25APC is an automatic vertical band saw with the ability to miter from 60° left to 60° right.
The V-25APC is fast, with its high speed shuttle feed indexing up to 60″ (120″ optional) in a single movement. A 3 HP driven hydraulic pump supplies system pressure through both a two and three position directional valves controlling all vises, head swing, head advance/retract, blade tension, and guide arm movement. Its PLC control features storage of up to 1000 jobs with the ability to run 20 in queue.
Featuring a 30″H x 25″W capacity, 10 HP motor, and 1 1/2″ blade, the V-25APC is a reliable choice for all your vertical metal cutting applications.

STANDARD FEATURES
6° canted head allows for efficient cutting and improved blade life
60” bar feed, left side

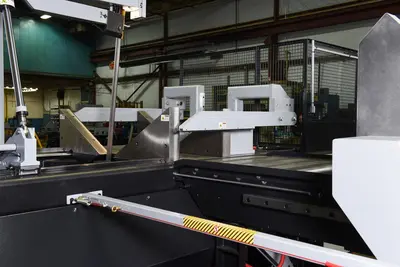

Shuttle features automatic multi-indexing up to 60” (120” optional) in a single stroke with automatic kerf compensation.
Powered by a rack and pinion servo drive.
Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right
Hydraulic head tilt
Cast iron band wheels
Automatic PLC, touch screen control programmable up to 1000 jobs with 20 in queue.
Two full stroking hydraulic vises
Hydraulically powered, programmable guide arm attached to saw column.
10 HP VFD. True direct blade drive – no belts/pulleys
Blade chamber separates material from cut part
Hydraulic chip conveyor
Replaceable blade brush
Robust steel base
Out of stock switch
Blade breakage switch
Easy access electrical panel and hydraulics
Pop-up feed roller – one, opposite bar feed
Hydraulic band tensioning with digital readout
Replaceable carbide guide inserts
3 HP hydraulic pump provides system pressure
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light
OPTIONS
Chip bucket with pump
Hydraulic overhead bundling
Mist lubrication
Variable vise pressure
Out feed vise
Right side infeed shuttle
10’ shuttle infeed
Bridge/interface bracket
Powered bridge/interface bracket
Idler conveyors
Powered conveyors
SPECIFICATIONS
Rectangular Capacity At 90º
30"H x 25"W
Round Capacity at 90º
25"
Blade Dimensions
1-1/2" x 21"
Blade Drive
10HP VFD
Blade Speed
75-350 SFM
Coolant Tank Capacity
38 Gal
Machine Weight
15,000 Lbs
Machine Dimensions
158"W x 254"L x 123"H
