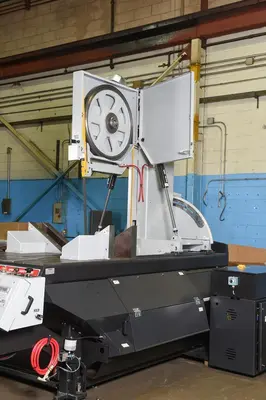

NEW HYD-MECH V-25

Equipped With

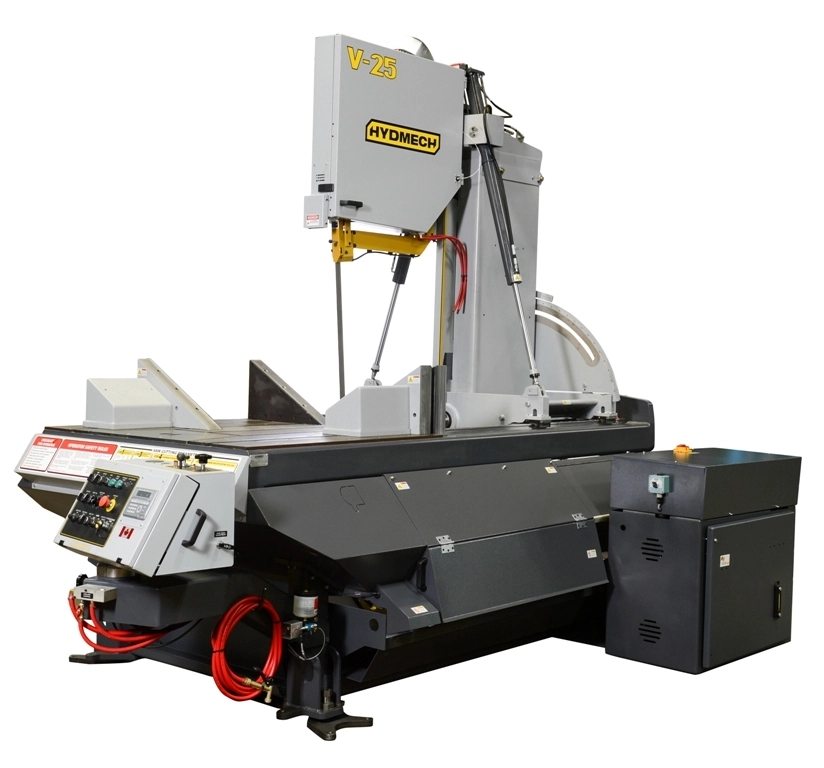

NEW - 30"H x 25"W HYD-MECH V-25 SEMI-AUTOMATIC VERTICAL TILT FRAME BAND SAW

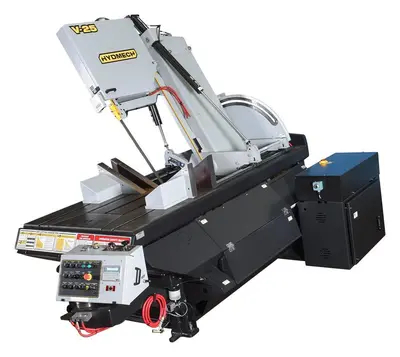

The V-25 is a semi-automatic vertical band saw with the ability to miter from 60° left to 60° right.

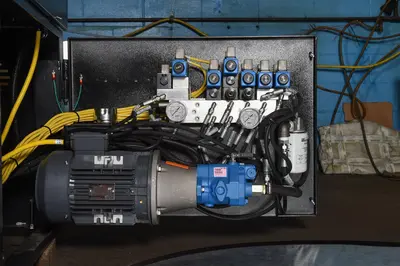

A 3 HP driven hydraulic pump supplies system pressure through both a two and three position directional valves controlling all vises, head swing, head advance/retract, blade tension, and guide arm movement.
Its standard 6° degree canted head allows for more efficient cutting and improved blade life.
Featuring a 30″H x 25″W capacity, 10 HP motor, and 1 1/2″ blade, the V-25 is a reliable choice for all your vertical metal cutting applications.

STANDARD FEATURES
6° canted head allows for efficient cutting and improved blade life

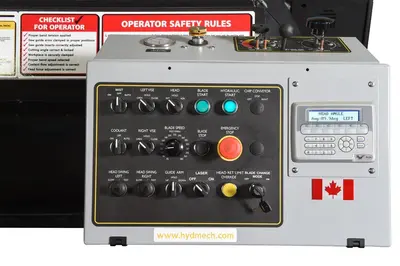

Control provides hydraulic powered mitering from 60° left to 60° right
Digital angle display
Two full stroking hydraulic vises
Hydraulically powered guide arm attached to saw column.
10 HP VFD. True direct blade drive – no belts/pulleys
Cast iron band wheels
Replaceable blade brush
Robust steel base
Easy access electrical panel and hydraulics
Blade breakage switch
Hydraulic band tensioning with digital readout
Replaceable carbide guide inserts
3 HP hydraulic pump provides system pressure
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light
OPTIONS
Chip bucket with pump
Hydraulic overhead bundling

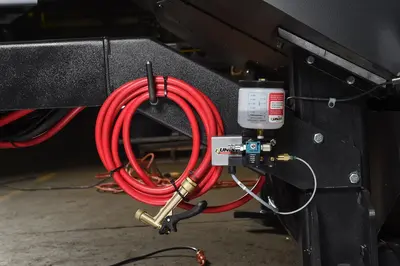

Mist lubrication
Pop-up feed roller
Variable vise pressure
Tall square vise inserts
Hydraulic chip conveyor
Bridge/interface bracket
Powered bridge/interface bracket
Idler conveyors
Powered conveyors
SPECIFICATIONS
Rectangular Capacity At 90º
30"H x 25"W
Round Capacity at 90º
25"
Blade Dimensions
1-1/2" x 21"
Blade Drive
10HP VFD
Blade Speed
75-350 SFM
Coolant Tank Capacity
38 Gal
Machine Weight
10,00 Lbs
Machine Dimensions
96"W x 160"L x 123"H
