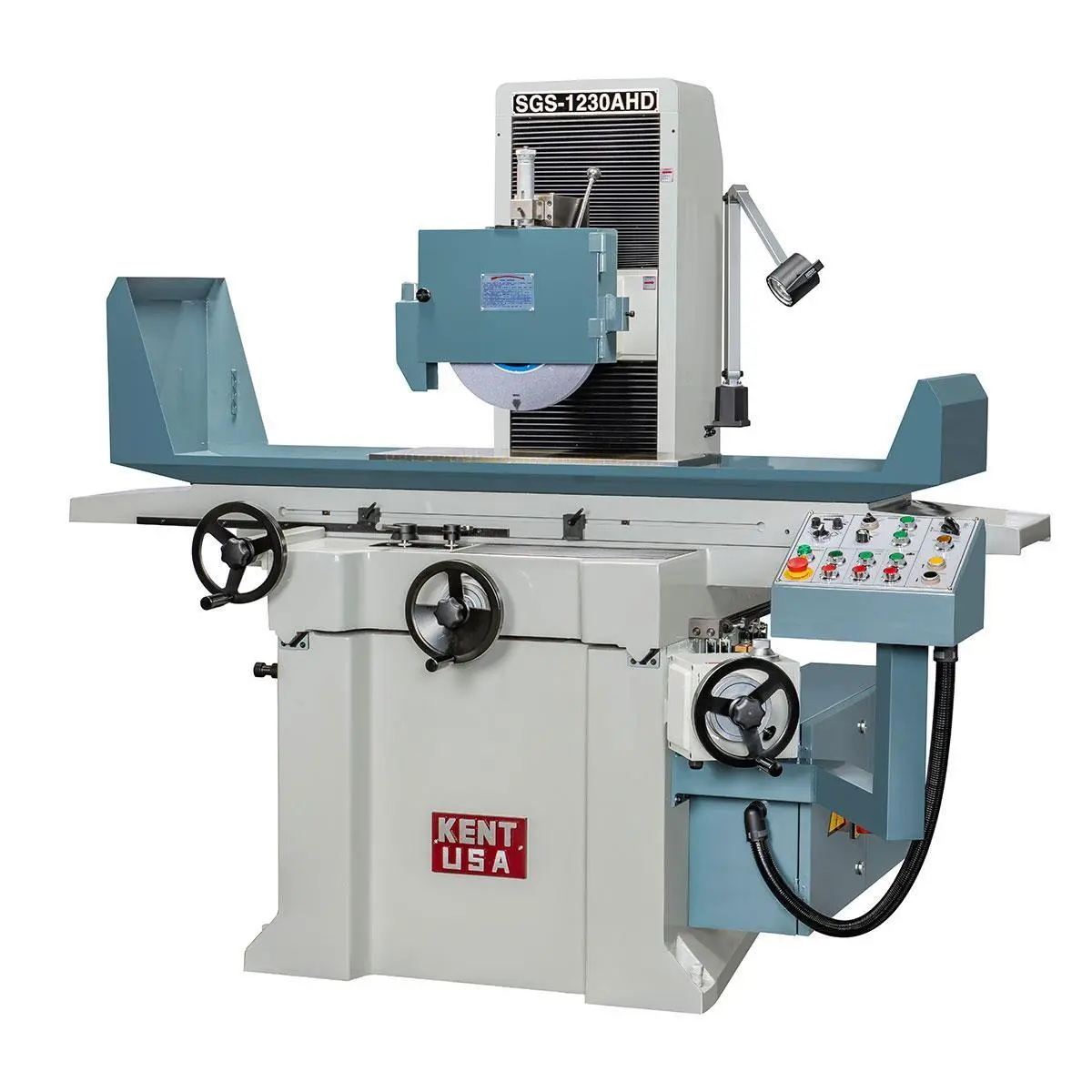

12" x 30" KENT USA SGS-1230 AHD AUTOMATIC SURFACE GRINDER - NEW
PRODUCT FEATURES
12”x30” working capacity
3-axis automatic movement with incremental downfeed, electronic auto-crossfeed, and hydraulic powered table movement
Precision hand scrapped turcite table and saddle ways for smooth and long lasting precision
High column design with 23” spindle center to table for extra clearance under the wheel and rapid elevation motor for quick/easy positioning
Centralized automatic one-shot lubrication system provides lubrication to all points
Safety 24V control circuit power
STANDARD ACCESSORIES
Grinding wheel
Wheel Flange
Wheel balancing base
Wheel balancing arbor
Diamond table dresser base & tip
Leveling bolts & pads
Overhead parallel dresser
Dust-suction coolant system
Electromagnetic chuck with control
Work light
Toolbox with tools
OPTIONAL ACCESSORIES
DRO system
Electric chuck w/ controls
Extra wheel flange
Rustlick coolant (1 Gal, Mixes 1:30)
Paper filter & magnetic separator coolant system
Table Travel
Saddle Travel
Working Capacity
T-Slot
Spindle Motor
Spindle Speed
Grinding Wheel
Vertical Graduation
Vertical Revolution
Auto Downfeed Increment
Spindle to Table
Net Weight
Gross Weight
SGS-1230AHD
33.1"
13.5"
12x30"
1 x 9/16”
5 HP
1750 RPM
14” x 1-1/4” x 5”
0.0005"
0..100"
.0001" 10 Steps
23"
4290 LBS
4950 LBS
