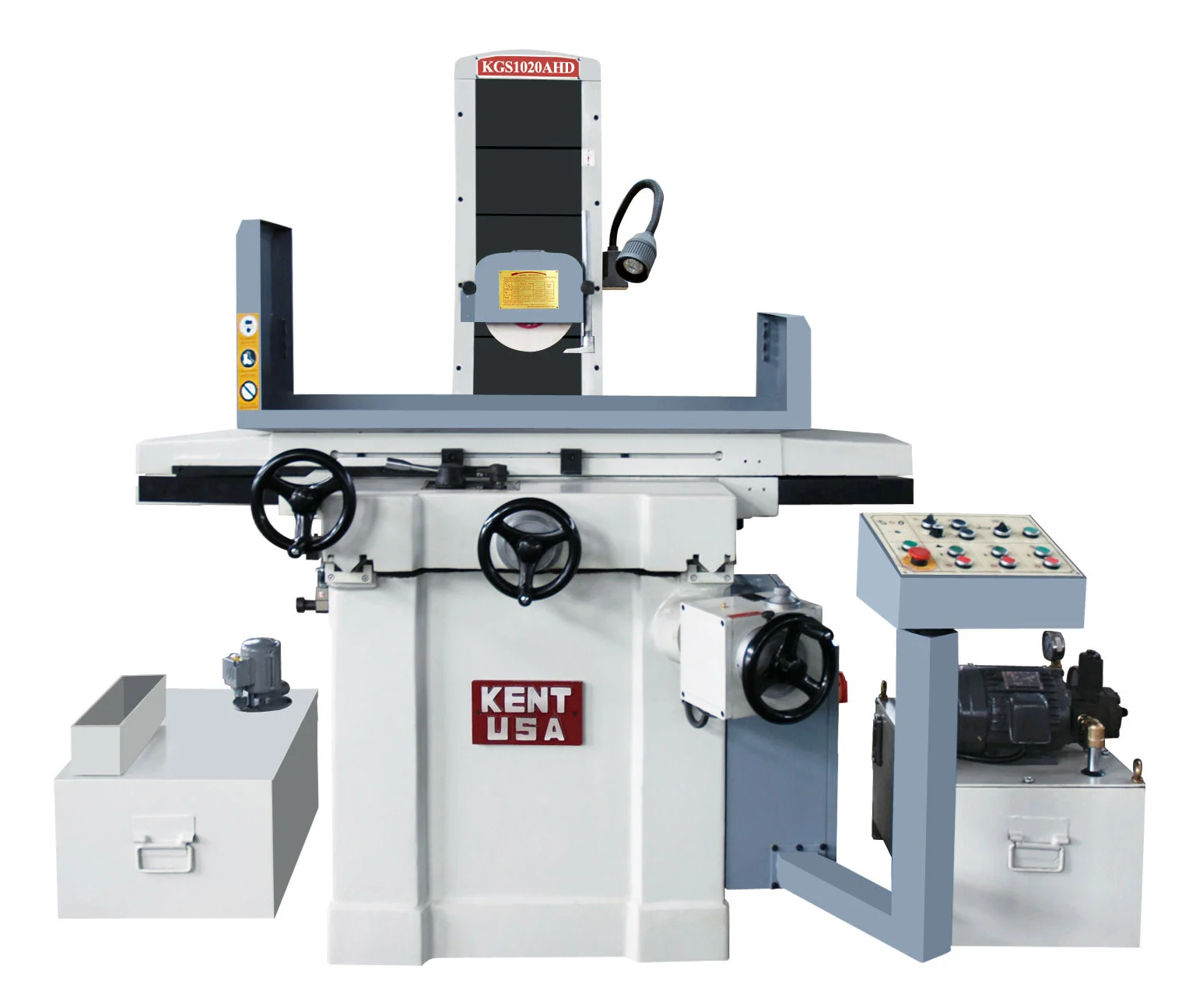

10" x 20" KENT USA KGS-1020 AHD AUTOMATIC SURFACE GRINDER - NEW
PRODUCT FEATURES
10”x20” working capacity; flange mount spindle cartridge for superior side grindingrigidity
3-axis automatic movement with incremental downfeed and electronic auto-crossfeed
Roller ball on linear table ways for smooth longitudinal movements with minimal maintenance
Double V precision hand scrapped turcite saddle ways for smooth and long lasting performance
High column extra rigid H-frame design with 21” spindle center to table for extra clearance under the wheel; Over size rear splash guard
Over 3,690 pound net weight for super vibration damping capability
Centralized automatic lubrication system
Safety 24V control circuit power
STANDARD ACCESSORIES
Grinding wheel
Wheel Flange
Wheel balancing base
Wheel balancing arbor
Diamond table dresser base & tip
Leveling bolts & pads
Work light
Toolbox with tools
OPTIONAL ACCESSORIES
DRO system
Paper filter & magnetic separator coolant system
Permanent chuck
Dust-suction coolant system
Overhead parallel dresser
Extra wheel flange
Rustlick coolant
Table Travel
Saddle Travel
Working Capacity
T-Slot
Spindle Motor
Spindle Speed
Grinding Wheel
Vertical Graduation
Vertical Revolution
Auto Downfeed Increment
Spindle to Table
Net Weight
Gross Weight
KGS-1020AHD
23.6"
11.4"
10.4 x 21.4"
1 x 9/16”
3 HP
3500 RPM
8” x 1/2” x 1-1/4”
0.0005"
0.50"
.0001" 10 Steps
21"
3696 LBS
4246 LBS
