Equipped With

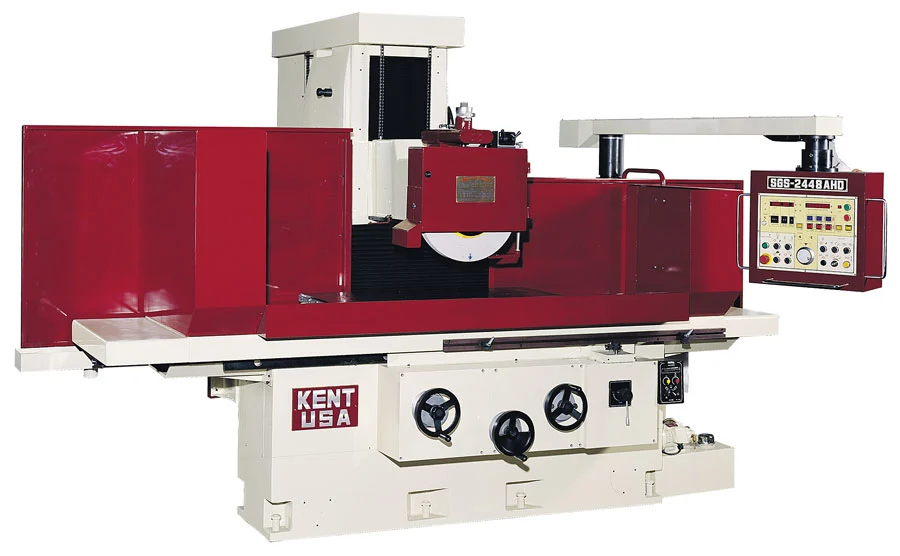

24" x 48" KENT USA SGS-2448 AHD AUTOMATIC SURFACE GRINDER - NEW
PRODUCT FEATURES
DRO System
Interloc w/ Control
Static Wheel Balancing Base
Extra Wheel Flange
Rustlick Coolant (1 Gal, Mixes 1:30)
STANDARD ACCESSORIES
Grinding wheel
Wheel Flange
Wheel balancing base
Wheel balancing arbor
Diamond table dresser base & tip
Magnetic separator & paper filter coolant
Hydraulic overhead parallel dresser
NC Z-axis controller
Toolbox with tools
OPTIONAL ACCESSORIES
DRO System
Static Wheel Balancing Base
Extra Wheel Flange
Rustlick Coolant (1 Gal, Mixes 1:30)
Table Travel
Saddle Travel
Working Capacity
T-Slot
Spindle Motor
Spindle Speed
Grinding Wheel
Vertical Graduation
Vertical Revolution
Auto Downfeed Increment
Spindle to Table
Net Weight
Gross Weight
SGS-2448AHD
51.25"
24.25"
23.5" x 47.25"
3 x 9/16”
15 HP
1150 RPM
8” x 1/2” x 1-1/4”
0.0005"
0.020"
.0001" to 0.0333" Per Pass
33"
15,000 LBS
15,900 LBS
