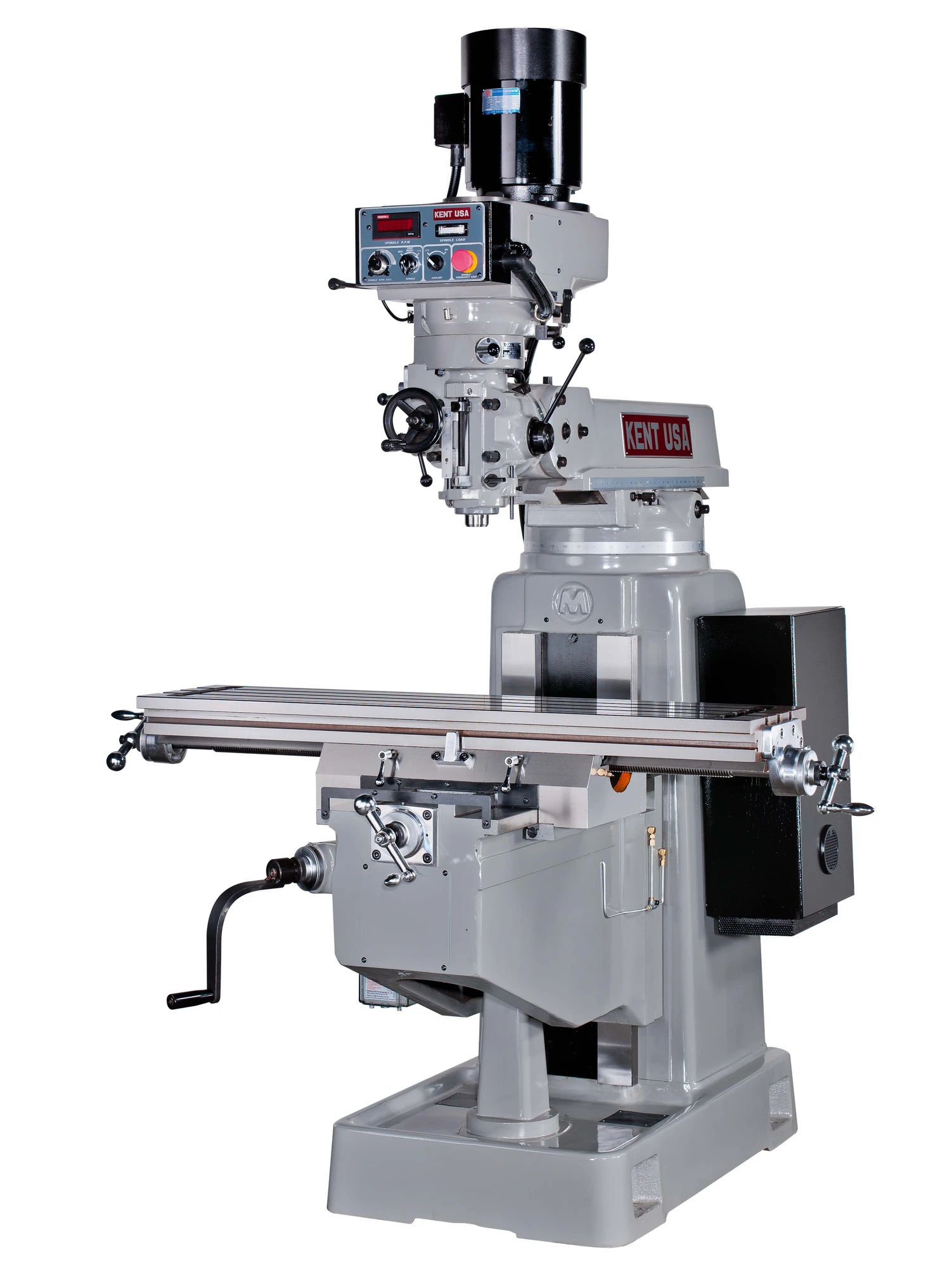

NEW KENT KTM-4VKF-E

Equipped With
12" x 50" KENT USA KTM-4VVF-E MANUAL KNEE MILL - NEW
PRODUCT FEATURES
3 HP AC-Freq drive head with digital RPM display and analog load meter.  Automatic spindle direction reversal when switching between high and low speed gear ranges
60-550-4500 spindle RPM (Hi/Low gear)
Automatic centralized lubrication system with metered check-valves
Single-phase or 3-phase power without the need for a phase converter
Hardened and Ground (Hrc-52) table surface and all slide ways
Solid box ways on saddle and column
OPTIONAL ACCESSORIES
Digital Readout System
Table (X-Axis) Power Feed
Saddle (Y-Axis) Power Feed
Knee (Z-Axis) Power Feed
Air Power Drawbar
Flood Coolant System
Chip Pan
Riser Block
Angle-Lock Vise
Rustlick Coolant

Table Size
Table Travel (X-Axis)
Saddle Travel (Y-Axis)
Knee Travel (Z-Axis)
Quill Travel
Ram Travel
Spindle Motor
Spindle Speed
Spindle Taper
Quill Diameter
Quill Feed Rate
Drilling Capacity (Manual / Power)
Boring Capacity
Milling Capacity
Maximum Work Load (Center)
Spindle Nose to Table Surface
Spindle Center to Column
Net Weight
Gross Weight
Shipping Dimensions
Power Requirements
KTM-4VKF-E
12" x 50"
33"
18"
15.25"
5.5" (4" w/MillPwr-3 CNC Control)
22"
3 HP
60–500-4200 RPM (Var) (60-600 Optional)
R-8
3.375"
0.0015" / 0.003" / 0.006" in/rev
0.75" / 0.37" diameter
6" diameter
2.0 in³/min
850 lbs
2.75" - 17.75"
5" - 27"
3400 lbs
3600 lbs
72" x 72" (skid)
220 Volts. 3 Phase, 60Hz, (10 Amp (Optional 440V, requires 5 Amp)
