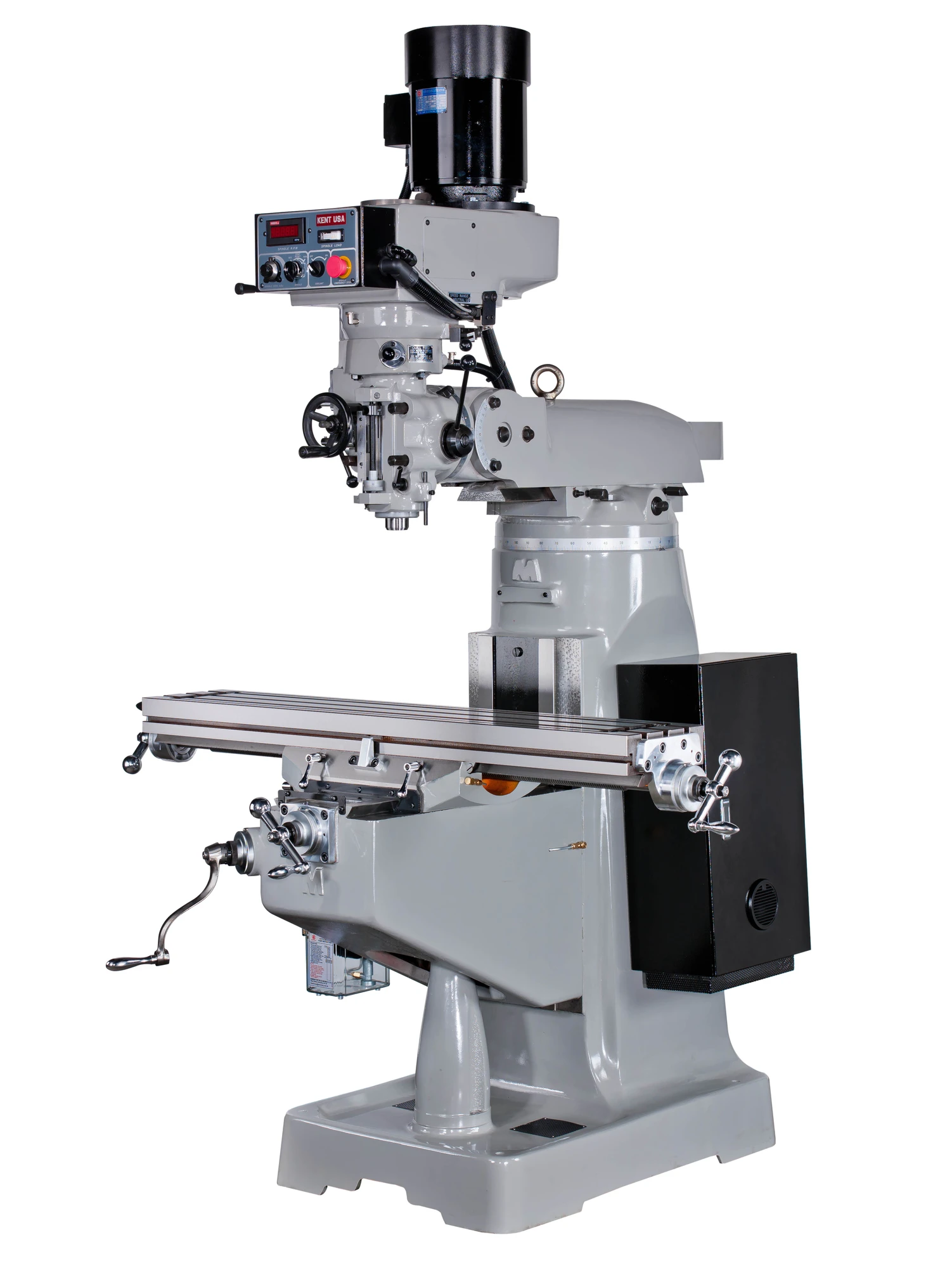

NEW KENT KTM-3VSF

Equipped With
9" x 49" KENT USA KTM-3VSF MANUAL KNEE MILL - NEW
PRODUCT FEATURES
3  HP spindle motor, variable speed milling head with AC-Frequency drive, digital RPM display, analog load meter, and automatic spindle direction reversal when switching between high & low speed ranges
9” x 49” hardened and ground table top
T-slots ground parallel to table ways
Table, saddle, and knee with hardened and ground dovetail ways
Precision ground leadscrews with backlash compensating double nut
Precision bored and ground milling head, with super precision ABEC-7 bearings
Meehanite® casting, with built in coolant reservoir in machine base
Automatic lubrication, with metered check-valves
OPTIONAL ACCESSORIES
Digital Readout System
Table (X-Axis) Power Feed
Saddle (Y-Axis) Power Feed
Knee (Z-Axis) Power Feed
Air Power Drawbar
Flood Coolant System
Chip Pan
Riser Block
Angle-Lock Vise
Rustlick Coolant
Acu-Rite 200S DRO System (2-axis, 0.0002” resolution)
Right angle milling attachment with arbor support
# 30 taper spindle option
Rotary table (12”, vertical and horizontal)
Clamping kit (52 pc)
R-8 collet set (11 pc/set, 1/8” to 3/4″)
Upgrade to 440V power

Table Size
Table Travel (X-Axis)
Saddle Travel (Y-Axis)
Knee Travel (Z-Axis)
Quill Travel
Ram Travel
Spindle Motor
Spindle Speed
Spindle Taper
Quill Diameter
Quill Feed Rate
Drilling Capacity (Manual / Power)
Boring Capacity
Milling Capacity
Maximum Work Load (Center)
Spindle Nose to Table Surface
Spindle Center to Column
Net Weight
Gross Weight
Shipping Dimensions
Power Requirements
KTM-3VSF
9" x 49" (Opt 10" x 54")
35"
12"
15"
5.5" (4" w/MillPwr-3 CNC Control)
14.5"
3 HP
60–500-4200 RPM (Var) (60-6000 Opt)
R-8 (NMTB-30 or Q.C. spindle optional) Optionsal?
3.375"
0.0015" / 0.003" / 0.006" in/rev
0.75" / 0.37" diameter
6" diameter
2.0 in³/min
750 lbs
2.75" - 17.75"
5" - 27"
2500 lbs
2600 lbs
72" x 72" (skid)
220v, 3 phase, 60 Hz, 10 Amp (optional 440v power requires 5A) but can also accept 220v, 1-phase power (15A) without a phase converter, ideal for customers with only 1-phase power
