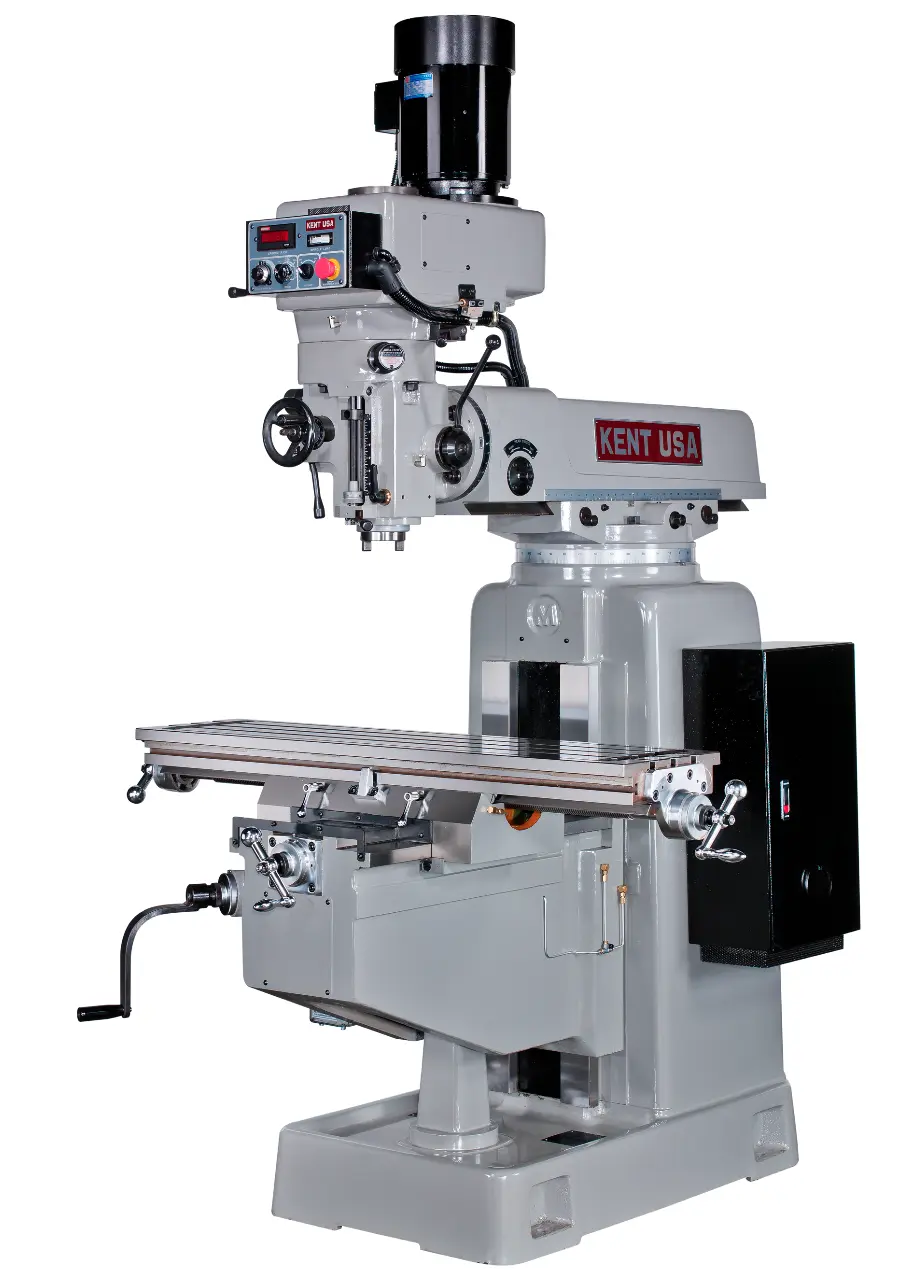

12" x 50" KENT USA KTM-5VVF-E MANUAL KNEE MILL - NEW
PRODUCT FEATURES
5 HP AC-Freq drive head with digital RPM display and analog load meter
60-550-4500 spindle RPM (Hi/Low gear). Automatic spindle direction reversal when switching between high and low speed gear ranges
NMTB-40 spindle taper
Automatic centralized lubrication system with metered check-valves
Single-phase or 3-phase power without the need for a phase converter
Hardened and Ground (Hrc-52) table surface and all slide ways
Solid box ways on saddle and column
OPTIONAL ACCESSORIES
Quick change tooling package (Mach-1)
NMTB-30 spindle
Flood coolant system (Built-in base)
Knee (Z-axis) power feed
Air power drawbar
Flood coolant system
Chip tray
3-D edge finder
Knee linear encoder feedback for coupled z-axis position
AMI with programmable M-functions
Table Size
Table Travel (X-Axis)
Saddle Travel (Y-Axis)
Knee Travel (Z-Axis)
Quill Travel
Ram Travel
Spindle Motor
Spindle Speed
Spindle Taper
Quill Diameter
Quill Feed Rate
Drilling Capacity (Manual / Power)
Boring Capacity
Milling Capacity
Maximum Work Load (Center)
Spindle Nose to Table Surface
Spindle Center to Column
Net Weight
Gross Weight
Shipping Dimensions
Power Requirements
KTM-5VKF-E
12" x 50"
33"
18"
15.25"
5.5" (4" w/MillPwr-3 CNC Control)
26.75"
HP
60–500-4200 RPM (Var)
NTMB-40
4.173"
0.0017" / 0.0032" / 0.0054" in/rev
1.25" / 0.625" diameter
8" diameter
2.5 in³/min
850 lbs
4" - 19.5"
5.25" - 32"
3700 lbs
4100 lbs
72" x 72" (skid)
220 Volts. 3 Phase, 60Hz, (10 Amp (Optional 440V, requires 8.5 Amp) Single Ph Available
