USED 2000 HURCO BMC4020

Equipped With

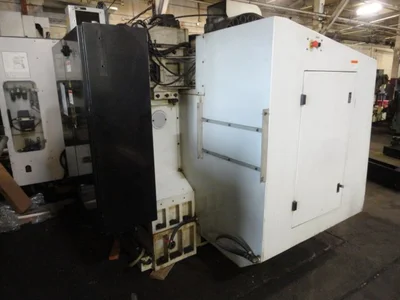

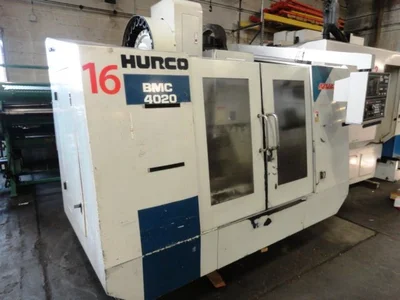

HURCO BMC4020 CNC VERTICAL MACHINING CENTER
Serial No. B42S-01005050EB New 2000
EQUIPPED WITH

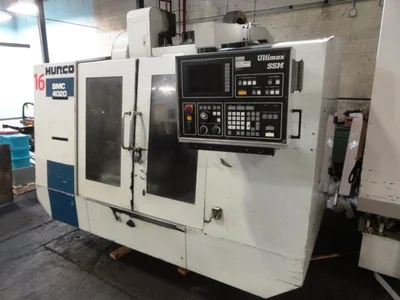

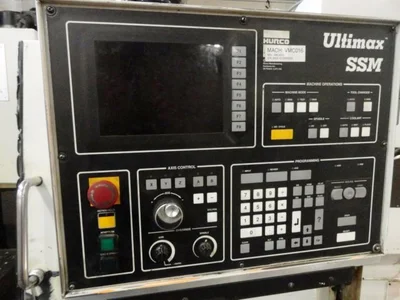

Ultimax SSM CNC Controls

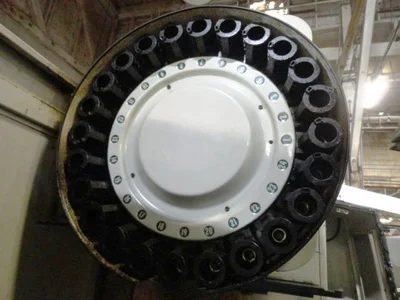

24 Station Automatic Tool Changer

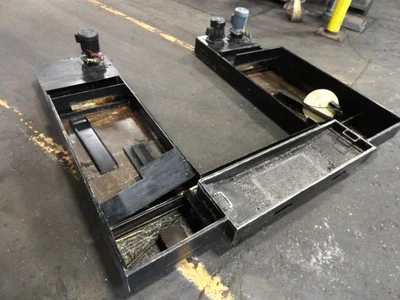

Chip Pan
Full Enclosure

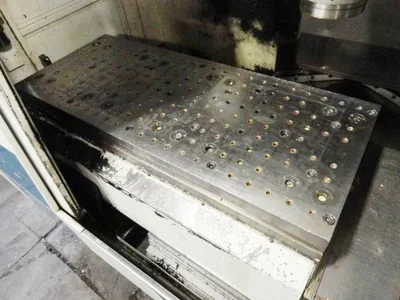

Drilled & Tapped Fixture Plate
Coolant System
SPECIFICATIONS
Table Size
48" x 20"
Travels

        Longitudinal Travel (X-Axis)
40"
        Cross Travel (Y-Axis)
20"
        Vertical Travel (Z-Axis)
24"
Table Load Capacity
1500 Lbs
Max. Clearance Table Top To Spindle Nose
30"
Rapid Traverse

          X & Y Axes
787 IPM
          Z Axis
530 IPM
Tool Storage Capacity
24 ATC

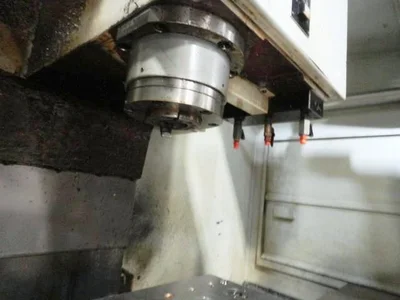

Spindle Speeds
80 - 8000 RPM
Spindle Taper
Cat 40
Approx. Machine Dimensions
136" x 96" x 100"H
Approx. Weight
13,000 Lbs
