USED 1995 SOUTHWESTERN INDUSTRIES TRM

Equipped With

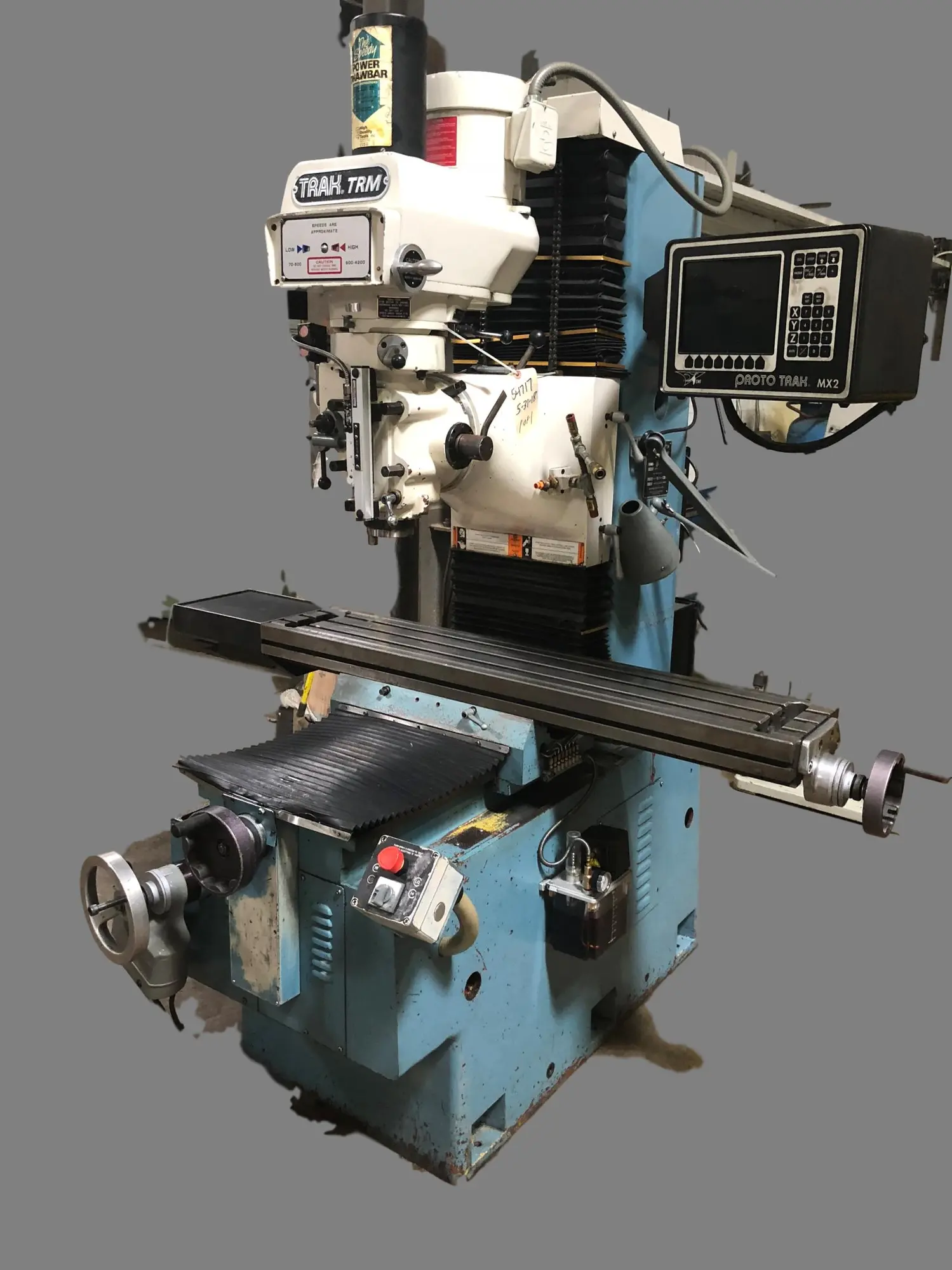

SOUTHWESTERN INDUSTRIES TRAK TRM 2--AXIS CNC BED MILL
New 1995

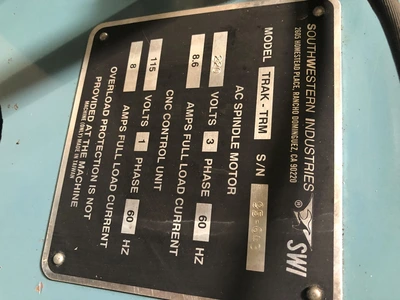

Motor Driven with 3 HP, 3-Phase, 60 Cycle, AC Motor & Controls
EQUIPPED WITH: Trak A. G. E. 3 CNC Controls, Power Draw Bar, Power Feed For Elevation,  RS232 Port, Coolant
SPECIFICATIONS:

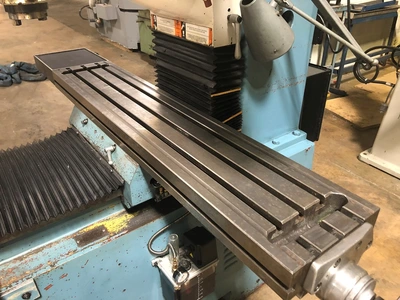

Table Size
10" x 50"
Travels

         X - Axis
31"
         Y - Axis
17"
         Z - Axis
25"
Quill Diameter
3-15/16"
Spindle Taper
40 NST/NMTBA
Spindle Speeds  (Variable)
70-4200 RPM
Spindle Center to Column Face
17.3"
Max. Quill Travel
5"
Quill Feed Per Rev. in Auto Feed
0.002, 0.004, 0.006 IPR
Max. Weight on Work Table
1,320 Lbs.
Drilling Mild Steel
1.5"
Tapping Capacity
1.25"
Milling Capacity
3" Cubed/Min
Boring Capacity
4.75"
Approximate Dimensions
70" x 72" 89"
Approximate Weight
4,500 Lbs.
