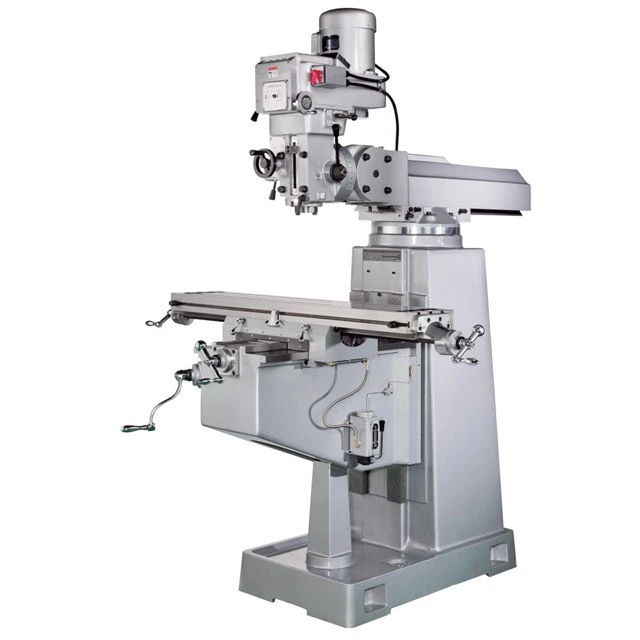

NEW 10" x 54" SHARP MODEL TMV-1 VERTICAL KNEE MILL
These vertical knee mills are equipped with vari-speed drive, available with optional digital vari-speed. The dove tail ways chromed, and the box ways are hardened and ground.
Head
To dissipate heat in the 5 HP motor driven head, a pair of high output fans is installed. This allows the machine to work demanding jobs for extended periods without damaging the motor, belts and bearings. A unique SHARP feature.
The motor shaft and Vari Drive pulleys are dynamically balanced, then hard-chromed. This allows a vibration free milling even at high speed
Since the Vari-speed drive system is operated by sliding the Vari Drive pulley up and down the motor shaft. The motor shaft is therefore chrome-plated, and has an oil channel that is fed by a grease fitting on the lower end for self-lubricating purpose. This ensures the sliding motion is trouble free at all times. A unique SHARP feature.
The motor shaft that drives the pulley and the spindle is subject to a lot of lateral stress. A roller bearing is installed for the lower support of the motor shaft. A unique SHARP feature.
Beside swiveling 90 degree side to side, the head can also swivel up and down by virtue of a knuckle joint design. The new design developed by Sharp uses 6 bolts, 3 each side, that fitted into a circular T-slot milled at the inside of the over arm and secured by nuts from the outside. It secured the head tightly and offered high accuracy in milling operations.
A matched pair of super-precision ABEC-7 angular contact bearings supports the spindle. The quill is CNC-ground to a mirror finish, and then chromed to fit the housing. Together, they insure spindle run out of no more than 0.0004” TIR- the best in the industry.
Column, Table and Knee
Hardened and ground box ways on column and saddle.
Turcite coated slideways for better resistance to wear and retention of lube oil.
Certified MEEHANITE castings are used for superior rigidity and better dampening of vibrations.
Table and saddle backlash is controlled by a double-nut design that keeps the feed screw in contact with a pair of bronze nut at all times. A unique SHARP feature.
"Bridgeport-style" vertical knee mill
Hardened leadscrews on table and saddle for better resistance to wear.
The end of the table and saddle are mounted with thrust bearings that pre-load the feed screw, eliminating endplay for precisely controlled lateral movement.
Instead of hand scraping the top of the knee ways for oil retention, the matching underside of the saddle is hand-scraped. This extra step avoids having chips and dirt embedded in the knee ways and damages the sliding area.
TABLE
Working surface
10" x 54"
T-slot number, size
3, 5/8"
CAPACITY
Table travel (X-axis)
39"
Saddle travel (Y-axis)
16.5"
Ram travel
19"
Quill travel (Z-axis)
5.3"
Knee travel
15.3"
Throat distance (min-max)
4-30"
Spindle gage line to table top
2.3-17.7"
SPINDLE
Motor (220/3/60)
5 HP
Wiring voltage
220V / 440V, 3 Ph, 60 Hz
Taper
NST #40
Speed (vari - speed)
60-4,500 RPM
Quill feed (IPR)
0.0015, 0.003, and 0.005
Accuracy 0.0001" TIR
Head tilt; right to left (each way)
90º
Head tilt; up-and-down (each way)
45º
DIMENSIONS AND WEIGHT
Floor area (w x d)
7' x 6.5'
Height
7.7'
Net weight (lbs; approximately)
3,200
STANDARD ACCESSORIES:
Hardened and ground box ways
Draw bar
Front and rear rubber way cover
One-shot lube system
Tool Kit
OPTIONAL ACCESSORIES:
Power feed table
Power feed systems on saddle, knee
Digital Readout systems
Power drawbar
Coolant system with chip pan
Riser block (4"or 7")
Right angle milling attachment
Auto lube system
Halogen work light
Milling vise
Clamping kit
