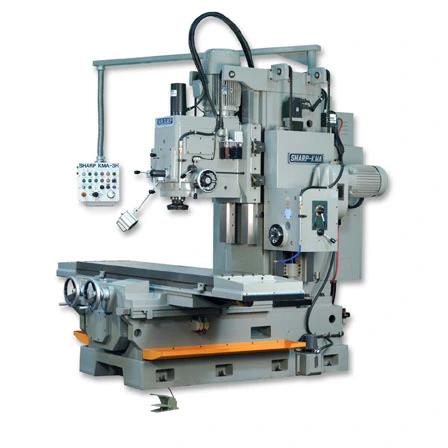

NEW 87" x 20" SHARP MODEL KMA-3H VERTICAL BED MILL
Heavy duty bed mill with vertical (20 HP) and horizontal (7.5 HP) allowing maximum flexibility for various types of milling operations. Features a Servo drive on a horizontal head with MPG, massive boxway construction and 5 HP, horizontal spindle #50.
The vertical column is made out of box shape high tensile strength casting reinforced with honeycombed ribbings. It offers excellent vibration dampening features and great mechanical and thermal stability.
The saddle and vertical head travels on hardened and ground box ways that offer maximum rigidity. All top, front, rear reference surfaces and T slots are precision ground to exact tolerance.
The vertical head is equipped with a #50 fixed quill spindle for heavy duty milling.
Besides a manual coarse and fine feed on the vertical head, it is also equipped with power feed for easy positioning. A tri-lever handle mounted in the front for easy operation performs manual rapid movement of the head.
A separate pendant control performs all the spindle operations, coolant and power drawbar operations .
The unique sliding saddle base design allows easy movement of the entire 23” of the cross travel, manually or by power.
The table is equipped with a double nut backlash eliminator, which adjusts the backlash on the table travel when the screw and nut start to wear out.
The automatic lubrication system lubes the table and saddle ways.
The extensive vertical head travel along with various feed rates offer capability for precise boring operations.
A horizontal milling head (5 HP, #50 taper) is installed on the side of the vertical column on Model KMA-3H. It travels on precision ball screw with AC servo drive.
Table travel (longitudinal)
59"
Saddle travel (cross)
24"
Spindle head travel
31-1/2”
(Spindle nose to table top vertical)
4”-35-1/2”
Spindle center to column front
22”
Horizontal head travel (up & down)
25-1/2”
Dist. bet horiz.and vert head
23”
TABLE
Table working area
87” x 20”
T-slot (Wide x No. x pitch)
0.7”x5x3-9/16”
Table top to floor
33-7/8”
SPINDLE HEAD
Vertical spindle taper
NST#50
Horizontal spindle taper
NST#50
Vertical spindle speeds (rpm)
45-1,500
Horizontal spindle speed (rpm)
40-1,450
No. of speeds (vert. and horiz)
12
FEED RATE
Vertical Head (ipr)
0.002-0.008
Table and saddle feeds (ipm)
0-39
Rapid traverse (ipm)
130
Horizontal head down feed(ipm)
0 - 39
Horizontal head rapid down (ipm)
150
No. of feeds (steps)
variable
MOTORS
Vertical spindle (HP)
20 HP
Horizontal spindle (HP)
5 HP
Table and saddle feed (HP)
2-1/2 HP
Horizontal head feed
Servo
Coolant (HP)
1/8 HP
DIMENSIONS
Machine height
115"
Floor space (l x w)
175” x 100”
Net weight (approx) (lbs)
18,000
STANDARD ACCESSORIES:
Coolant system
Auto lube system
4 way toggle control of table (KMA-2, KMA-3, KMA-3H)
Pneumatic power locks on spindle, table and saddle (KMA-3, KMA-3H)
Variable speed feed rate on table and saddle (KMA-3, KMA-3H)
Auto lube on vertical slide ways (KMA-3, KMA-3H)
5 HP horizontal head, #50 taper spindle (KMA-3H)
Ball screw and AC servo drive on horizontal head (KMA-3H)
Tools and Tool Box (1 set)
Leveling blocks. (6 pcs, KMA-3, 8 pcs)
Leveling bolts and nuts. (6 sets, KMA-3 8 pcs)
Draw-in bolt. (1 pcs)
Forward and reverse spindle control (KMA-2 & KMA-3)
OPTIONAL ACCESSORIES:
Digital read out
Halogen work light
Power draw bar
Spindle speed (60-1800 rpm) (KMA-3)
