Equipped With

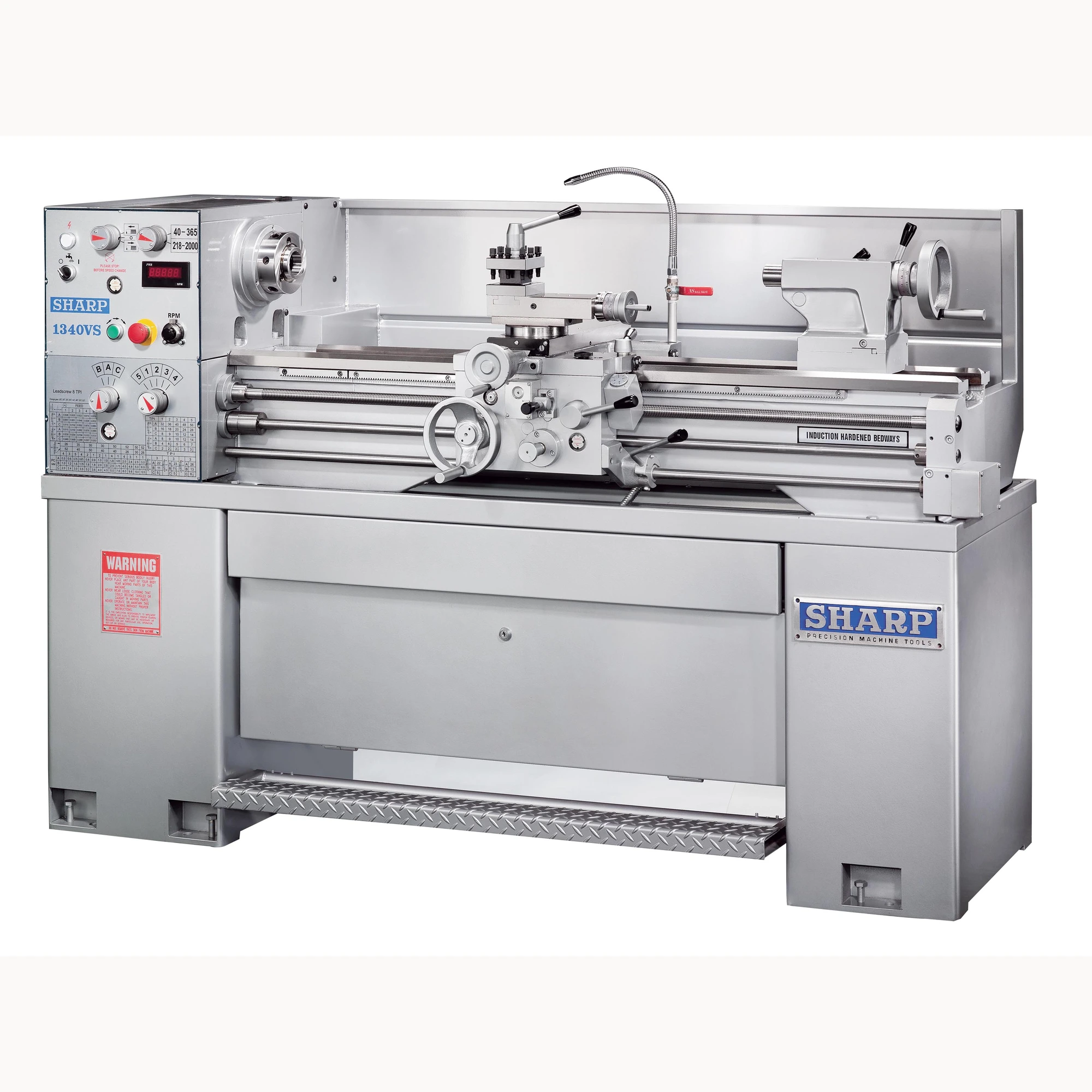

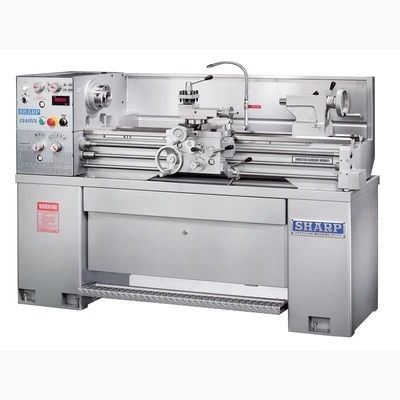

NEW 13" x 40" SHARP MODEL 1340VS PRECISION ENGINE LATHE
Hardened and ground gears in headstock for long lasting wear.
Induction hardened and ground bed ways for smooth longitudinal movements.
Spindle supported by 2 high precision tapered roller bearings.
Carriage equipped with overload clutch to protect gears and screws.
Quick change totally enclosed gearbox offers wide range of threads.
Oil bath lube system keeps gears and shafts well lubricated.
Oversized compound, apron and cross slide offer better cutting stability compare with similar size models available in F and V models.
Jog button for easy engagement of gears and inching of spindle rotation.
Digital Variable Speed in VS and V models allow easy change of spindle speed by dialing, it also operates on 3 phase or single phase power supply.
Gapped bed allow large work piece to be chucked when needed.
Swing over bed
13"
Swing over cross slide
8 5/16"
Swing over gap
18-1/2"
Width of bed
7 1/2"
Distance between centers
40"
HEADSTOCK
Spindle nose type
D1-4 cam lock
Spindle bore
1-9/16"
Spindle speeds
40 - 2,000 rpm [vari]
Taper of spindle bore
MT #5
THREADS AND FEEDS
longitudinal feeds - in / rev [40]
0.0016 - 0.046"
Cross feed - in /rev [40]
0.0005 - 0.015"
Inch threads [TPI]
2 - 56 (39)
Metric threads [mm]
0.5 – 12(42)
Lead screw (pitch, diameter)
8 tpi, 1"
CARRIAGE
Saddle width
12"
Apron width
11"
Cross slide width
4.5"
Cross slide travel
6 3/4"
Compound rest travel
3 1/2"
Compound width x length
3 x 7-1/2"
BED
Bed length
64"
Bed width
7 1/2"
TAILSTOCK
Quill travel (graduated)
4 "
Quill diameter
1 9/16
Quill taper
MT #3
GENERAL
Spindle motor
3 HP
Motor electric phase
single or 3 phase
Net weight (approx.)
1,550 LBS
Standard Accessories
Removable gap
Steady rest
Coolant system
Full length splash guard
4 way tool post
Tailstock
Back plate
Foot brake
Thread dial
Center sleeves
Dead centers
Tool kit
Optional Accessories
3 jaw chuck
4 jaw chuck
Chuck guard
Follow rest
Taper attachment
Quick change tool holder
Liver Center
Drill chuck
Face plate
Micrometer carriage stop
5C collet closure
2 axes digital readout system
440V transformer
