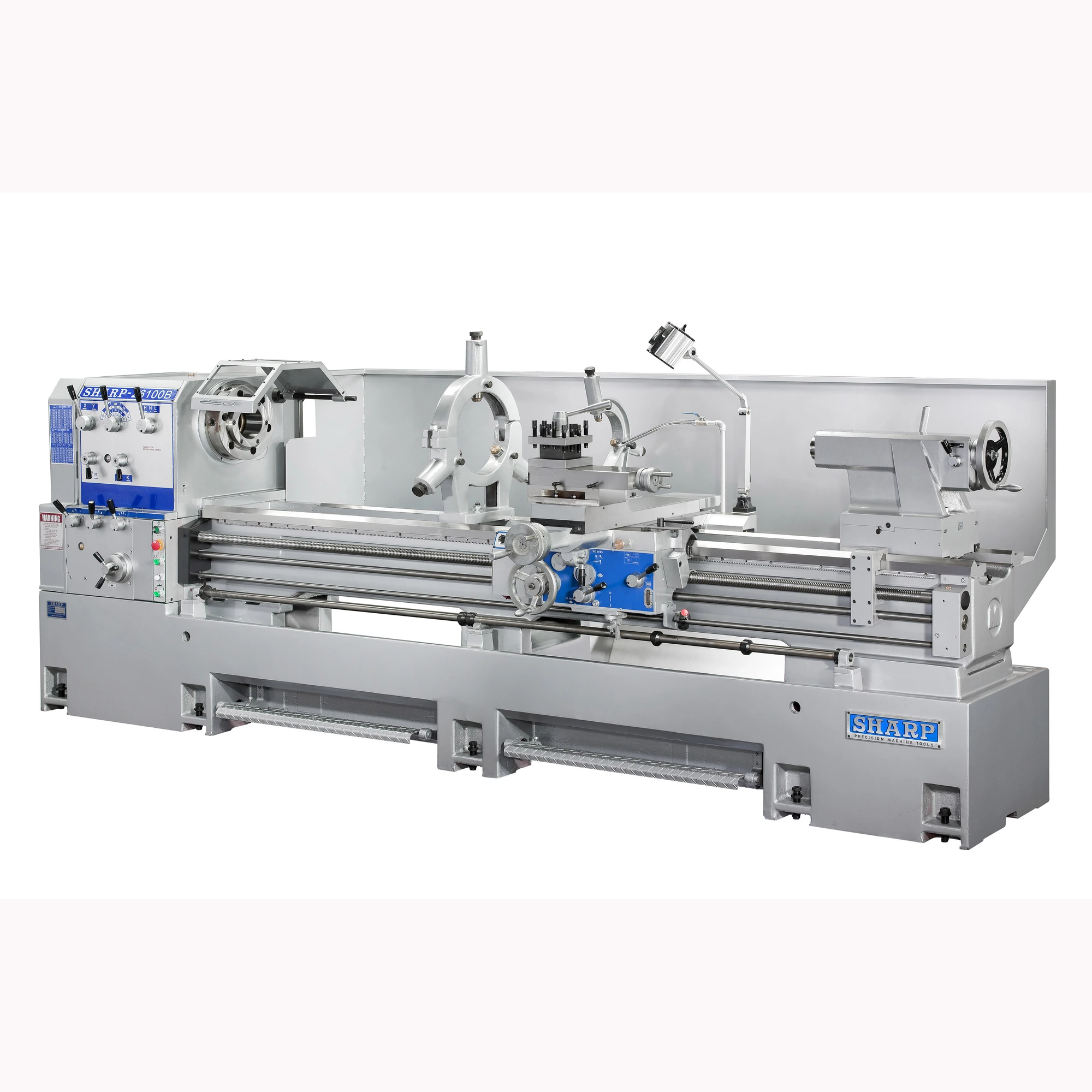

NEW SHARP 26120B

Equipped With

• The “B” models are equipped with D1-11 camlock spindle, 4.5” spindle bore.

• The spindle is mounted on 2 precision tapered roller bearings and one ball bearing. This triple bearing support system ensure accuracy and rigidity at all times.

• Handles that are used for engaging gears are built with locking pins to prevent the handles from being knocked out of place accidentally or under heavy cutting circumstances. Pulling the spring-loaded handle back and then shift does repositioning of handles.

• The universal gearbox design allows easy selection of inch and metric threading by just turning the lever to the assigned position instead of changing individual gears outside the headstock.

• A rotational style lever that results in less movement of the gears compare with the back-and-forth shifting style lever does selection of gears at the gearbox. Less movement of the gears means less wear and greater accuracy.

• The gapped bed design allows extra large work piece to be chucked at the spindle when the gap is taken out.

• Bed ways are induction hardened and ground for durability.

• Headstock gears are hardened and ground, made out of Chrom-Moly alloy steel for maximum wear.

• The headstock is equipped with a job button that allows inching movement of the spindle for easy engagement of gears.

• One shot lube system is installed in the apron to direct lube oil to all the sliding surfaces.

Swing over bed
26"

Swing over cross slide
17.33"

Swing over gap
35"

Distance between centers
120"

HEADSTOCK

Spindle nose type
D1-11 cam lock

Spindle bore
4.5"

Spindle speeds (rpm)
10-1,000 rpm

Taper of spindle bore
MT #7

Taper of center
MT #5

THREADS AND FEEDS

Longitudinal feeds - in/rev (18)
0.002-0.032"

Cross feeds - in/rev (#)
0.001-0.0094" (17)

Inch Threads (#)
2-56 tpi (44)

Metric and Module Threads (#)
0.5-14mm (24)

D.P. Threads (36)
4-56 mm

Leadscrew Pitch, Diameter
4 tpi, 1 - 1/2

CARRIAGE

Cross Slide Travel
14.75"

Compound Rest Travel
8"

Compound Width
6"

BED

Bed length
153"

Bed Width
15.75"

TAILSTOCK

Quill travel (graduated)
6.5"

Quill diameter
3"

Quill taper
MT #5

GENERAL

Spindle motor
15 HP

Net weight (lbs.)(approx)
8140

STANDARD ACCESSORIES:

• Rapid Traverse on Longitudinal


• 4-jaw 16" Chuck


• Coolant System


• 4 Way Tool Post


• Halogen work light


• Face plate 20"


• Steady rest (4"-11.5")


• 4-Way Carriage Stop


• Splashguard


• 16" Chuck Guard


• Tailstock


• Follow rest


• Tool kit

OPTIONAL ACCESSORIES:

• 3 Jaw chuck (12”, 15", 16”)


• 4 Jaw chuck (16”)


• Taper attachment


• Drill & Arbor


• Quick-change tool holder


• Live Center


• 5C collet closer


• Micrometer carriage stop


• Steady rest 12", 15"


• Roller Jaws Set (3 pcs)


• Digital Readout System (Fagor, Acu-Rite, Newall)
