Equipped With

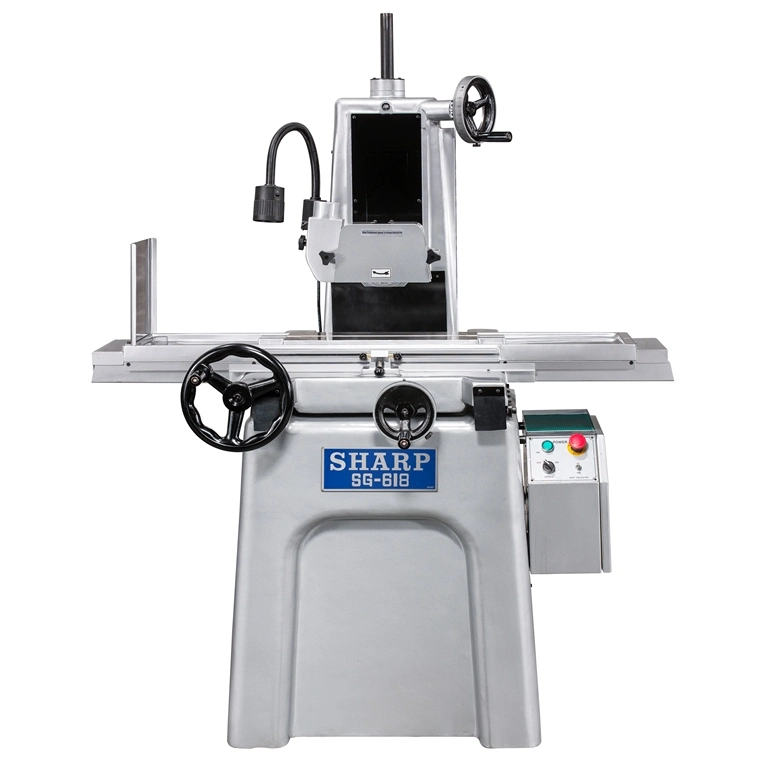

NEW 6" x 18" SHARP SG-618 MANUAL SURFACE GRINDER
One "V" and one flat way for longitudinal travel; both ways are hand-scraped and covered with Turcite B coating.
Lead screws are hardened and ground for durability.
Accurate slot grinding achieved using saddle locking system.
Double-nut backlash eliminator.
Cross slide and column screws are hardened and ground to a 70 Rockwell C hardness.
Hardened and ground box ways on column and saddle.
Smooth wire rope-driven table.
Main spindle run out within 0. 0001".
Automatic lubrication system.
Maximum grinding length
18.5"
Maximum grinding width
6.3"
Max distance: table to spindle center
16"
TABLE
Working surface (W x L)
6 x 18.3"
Maximum longitudinal travel
18.9"
Maximum cross travel
7"
FEED
Hand feed per revolution (longitudinal)
2.7 in/rev
Hand feed per revolution (cross)
0.2 in/rev
Graduation of hand wheel
0.0008"
Hand feed per revolution (vertical)
0.04 in/rev
Graduation of hand wheel
0.0001"
SPINDLE AND WHEEL
Spindle motor
1 1/2 HP
Spindle speed
3,600 rpm
Grinding wheel outside diameter
8"
Grinding wheel bore
1.25"
Grinding wheel width
0.63"
GENERAL
Floor space (W x H x L)
83 x 40 x 48"
Net weight (approximately)
1,500 lbs
Standard Accessories
Grinding Wheel (8”x 1.25”x 0.63”)
Wheel adaptor
Work light
Balancing arbor
Diamond dresser
Tool kit
Optional Accessories
6”x18” permanent magnetic chuck
6”x18” electro magnetic chuck
6”x18” fine pole electro magnetic chuck
Parallel dresser
Balance stand
Extra wheel adapter/flange
Coolant system (12 gal) with splashguard
Dust collector
Coolant system (25 gal.) with paper filter and magnetic separator
Digital Readout System
