NEW U.S. INDUSTRIAL US825

Equipped With

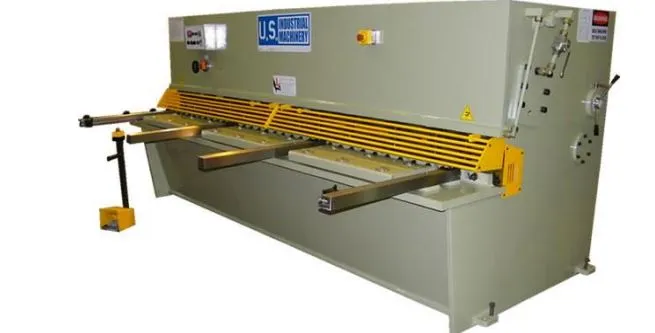

NEW 8' x 1/4" US INDUSTRIAL MODEL US825 HYDRAULIC SHEAR
BASE PRICE:    POR
STANDARD EQUIPMENT
Squaring Arm
High Carbon, High Chrome Shear Blades
Ball Transfers On Each Table Segment
Manual Quick Change Blade Gap Adjustment
Squaring Arm, 39.5" From Blade To End
Stroke Counter
Front Controlled Power Back Gauge
Blade Guard, Micro Switch Protected
Hydraulic, Electrical Overload Protection
Auto Swing Up On Back Gauge
(3) Bolt On Table Segments
Hold Downs Faced With Anti-Mar Neoprene
Swing Beam Design
Pressure Sensing Hold Downs
Electric Stroke Adjustment
Operator Control Console
Shadow Lighting
Low Noise Gear Pump
Support Arms Included
OPTIONAL EQUIPMENT
3-AXIS CNC PROGRAMMABLE BACKGAUGE $4,990.00
Touch Screen Operated.
Controls Back Gauge Depth, Blade Gap & Stroke Length.
200 Program Storage Capacity
20 Steps Each Program
Manual or Automatic Mode
Pneumatic Sheet Support $4,990.00
Material Support/Drop Chute $995.00
6' Squaring Arm $1,995.00
8' Squaring Arm $2,295.00
10' Squaring Arm $2,495.00
48" Back Gauge, No Swing Up $1,950.00
Training at US Industrial (Memphis, TN) No Charge
On Site Training (Less than 300 miles from Memphis, TN) $2,995.00
On Site Training (More than 300 miles from Memphis, TN) $3,995.00
On Site Training (Outside Continental USA) POR
SPECIFICATIONS
Sheet Size
98"
Shearing Capacity
1/4" Mild Steel @ 65,000 PSI
Shear Angle
1 Degree 30
No. Load Strokes
18
Throat Depth
4.7"
Adjustment Range Of Back Gauge
0.75" - 36"
Hydraulic Oil Capacity
56 Gal
Main Motor
15 HP
Approx. Dimensions
123" x 63" x 63"H
Approx. Weight
13,227 Lbs
Warranty
1 Year Parts/Labor
