NEW U.S. INDUSTRIAL USR1025

Equipped With

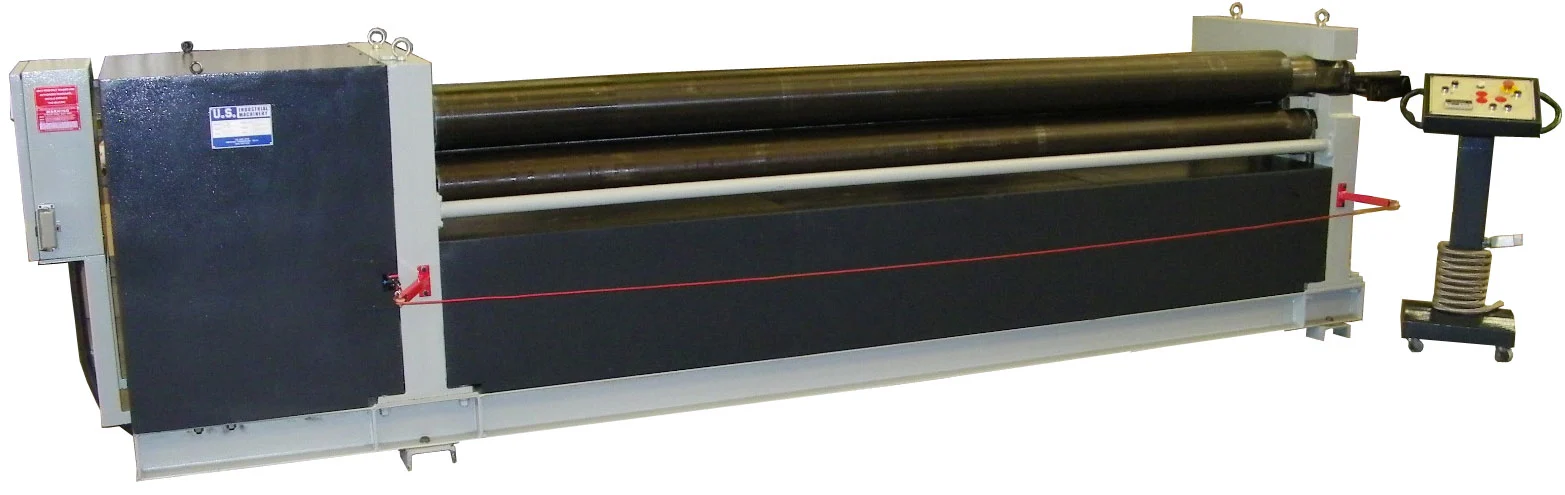

NEW 10' X 1/4" US INDUSTRIAL MODEL USR1025 INITIAL PINCH BENDING ROLL
BASE PRICE: POR
STANDARD EQUIPMENT
Powered Roll Adjustment & Manual Precision Pinch Roll Adjustment
Top Roll Manual Swingout
Emergency Trip Line
Pedestal Control
Quick Roll Adjustment
Roll Position Indicators
Crowned Rolls
Low Voltage Push Button Controls
OPTIONAL EQUIPMENT
Hardened Rolls $1,695.00
Cone Rolling Attachment $995.00
LED Readout With Memory $1,995.00
SPECIFICATIONS
Capacity
10' x 1/4" Mild Steel @ 65,000 PSI
Pre Bend Capacity
1/4" Mind Steel @ 65,000 PSI
Roll Diameter
7.4" On All Three Rolls
Speed
19 FPM
Main Drive Motor
5.5 HP Reduction Gear Drive
Adjustment Motor
3 HP
Approx. Dimensions
177" x 54" x 44"H
Net Weight
9,250 Lbs
Voltage
220/440 Volts, 3 Phase
