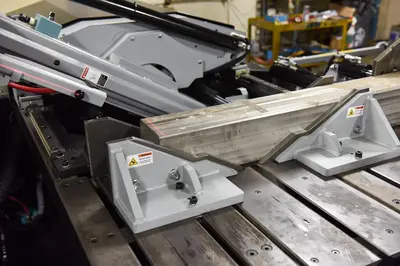

NEW HYD-MECH V-18APC-60

Equipped With

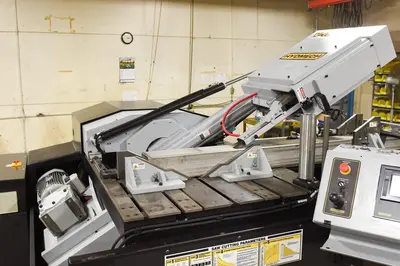

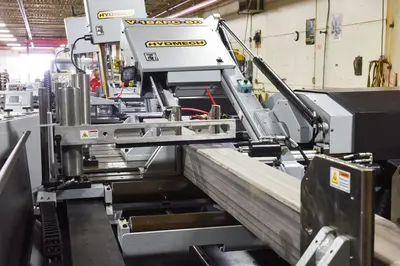

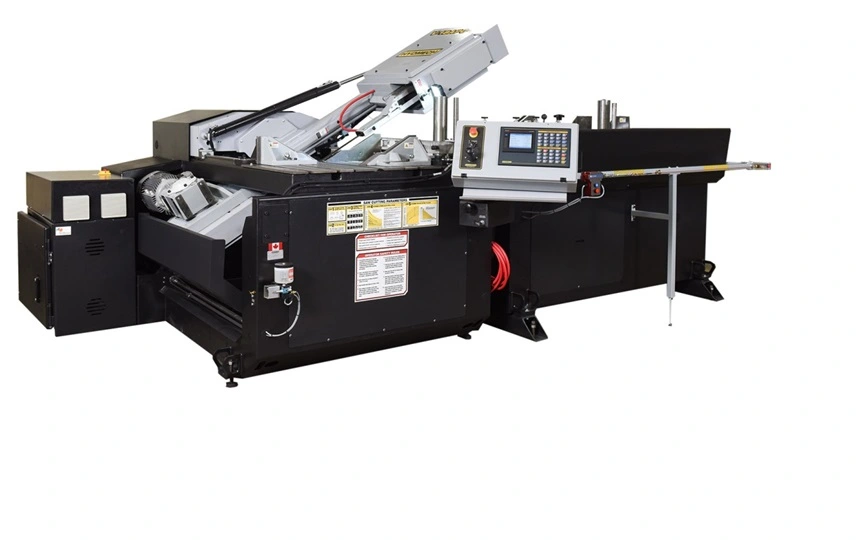

NEW - 18"H x 22"W HYD-MECH V-18APC-60 AUTOMATIC VERTICAL TILT FRAME BAND SAW

STANDARD FEATURES
Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right

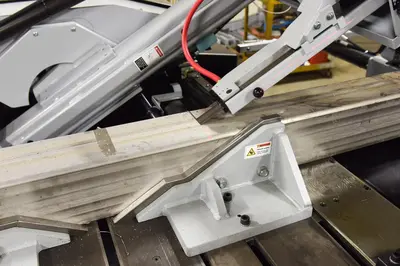

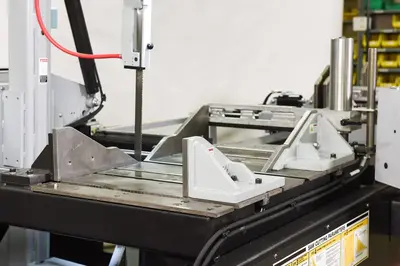

Three full stroking hydraulic vises  (Feed, Main, and Outboard) and Third Squaring Vise
Automatic multi-indexing up to 40” in a single stroke.
Powered Movable Guide Arm
Automatic PLC control programmable up to 99 jobs with 5 in queue.
Drag chain chip conveyor
Hydraulic overhead bundling
7.5 HP VFD. True direct blade drive – no belts/pulleys
Hydraulic positive down feed
Blade chamber separates material from cut part
Out of stock switch

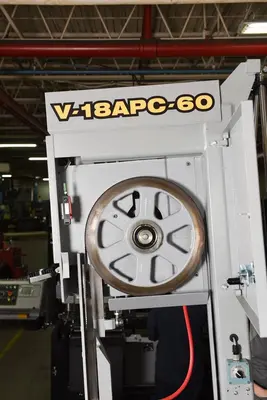

Cast iron band wheels
Replaceable blade brush
Robust steel base

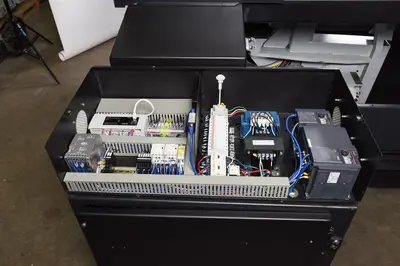

Easy access electrical panel and hydraulics
Blade breakage switch
You choose left or right side infeed
Hydraulic band tensioning with digital readout
Replaceable carbide guide inserts

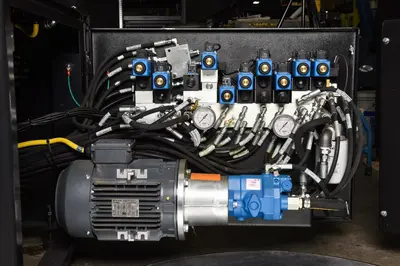

2 HP hydraulic pump provides system pressure
Safety door interlocks
Flood coolant with wash down hose
Variable Vise Pressure
Laser light
Work light
3 Deg Canted Head
OPTIONS
Chip bucket
Hydraulic overhead bundling
Mist lubrication
Non Driven Pop Up Lift Roller
Tall Vise Inserts
Pop-up lift roller
Hydraulic chip conveyor
Idler conveyors
Powered conveyors
SPECIFICATIONS
Rectangular Capacity At 90º
18"H x 22"W
Round Capacity at 90º
18"
Blade Drive
7.5HP VFD
Blade Speed
65-385 SFM
Coolant Tank Capacity
30 Gal
Machine Weight
9000 Lbs
Machine Dimensions
120"W x 98"L x 112"H
Blade Dimensions
1-1/4" x 16'11"
