NEW HYD-MECH DM-1215

Equipped With

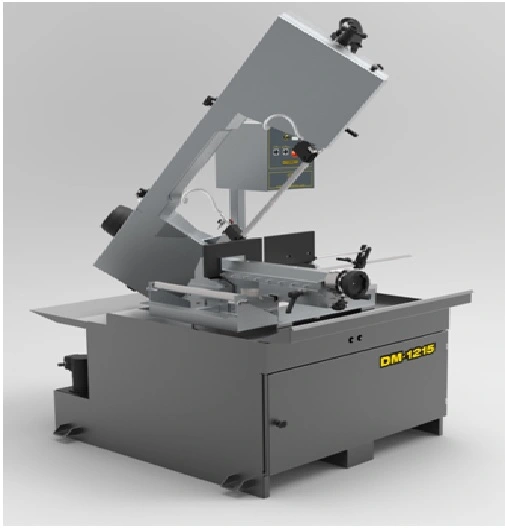

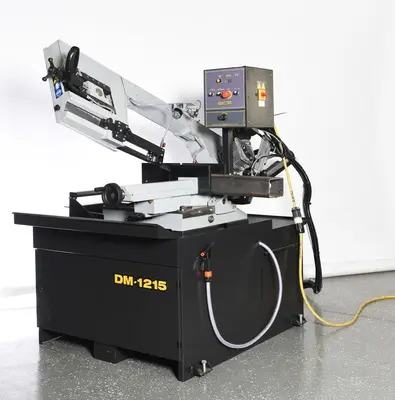

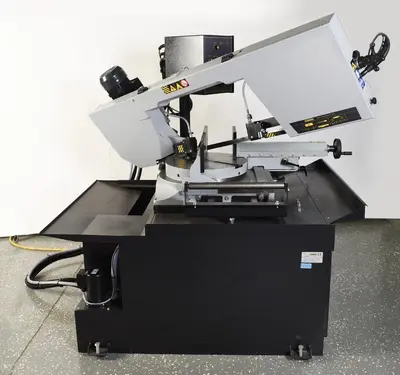

NEW 10.25"H x 15"W HYD-MECH MODEL DM-1215 DOUBLE MITER BAND SAW
Exceptional cutting capability. This versatile saw saves operator set-up time and its compact design makes it ideal for use in tight working spaces. Its cast iron head and vises are designed for rigidity – absorbing vibrations and ensuring accuracy during cutting. A rotating table with single cut line allows head and blade groove to move together for smooth, accurate mitering.
From user-friendly operator controls, to easily accessible electrical panels and cabinets, the DM-1215 double miter band saw is solidly built to provide maximum productivity
STANDARD FEATURES
Manually operated easy swing, cast saw head

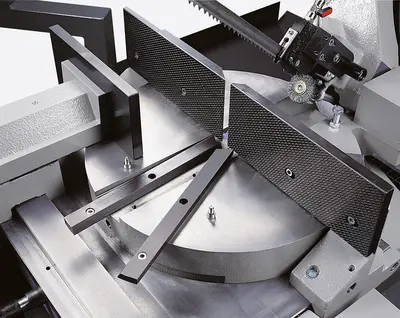

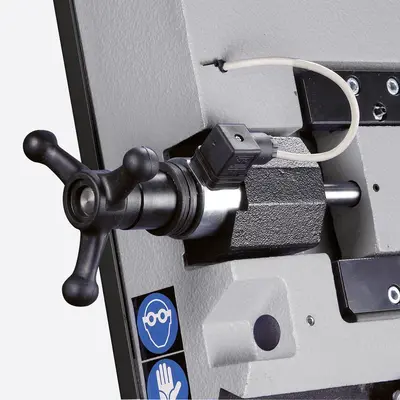

Quick release cast-iron vise with dovetail ways

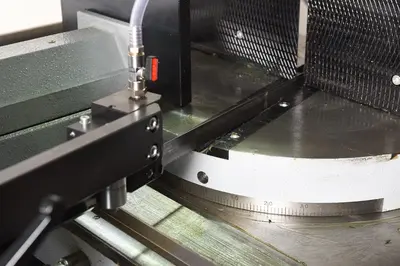

Rotating table with cut line
Band tension indicator
Manual gravity head feed
Replaceable blade brush
Small footprint
Robust steel base
Easy to read angle scale
Adjustable guide arm
Replaceable carbide guide inserts
Mechanical blade tensioning
Safety door interlocks
Flood coolant

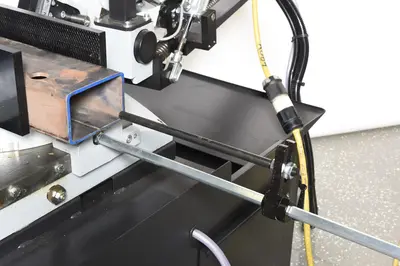

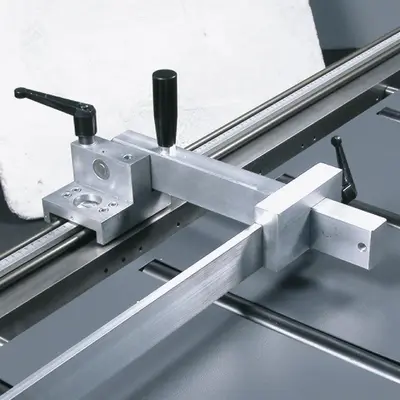

Work stop
​
​OPTIONS

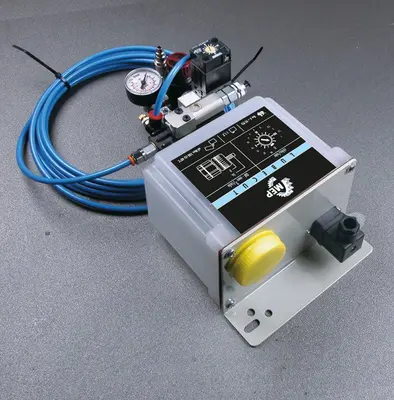

Mist lubrication
K110 5' Infeed/Outfeed Roller
R2 Work stop for K110 table
Adapter Plate For K110 Table
SPECIFICATIONS
Rectangular Capacity at 90º
10.25"H x 15"W
Round Capacity at 90º
12"
Blade Dimensions
1" x 12'4"
Blade Drive

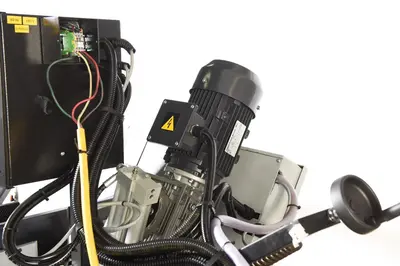

3HP VFD
Blade Speed
49-377 SFM
Coolant Tank Capacity
16 GAL
Machine Weight
1740 Lbs
Machine Dimensions
48"W x 88"L x 83"H
