NEW SHIGIYA GAS-30

Equipped With

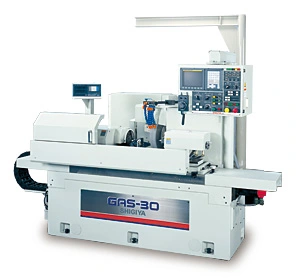

NEW SHIGIYA GAS-30  CNC ANGULAR CYLINDRICAL GRINDER


Featuring a large-diameter wheel spindle and rigid tailstock design, the GAS-30 production type CNC angular cylindrical grinder is suitable for an array of applications, including long, multi-steps and profile cylindrical grinding, among others. The highly stable spindle rotation achieves heavy-duty precision grinding. Being able to perform O.D. and shoulder face grinding at the same time improves efficiency.
.
Swing Over Table
11.81"
Distance Between Centers
19.69" / 39.37"
Weight Capacity
330.69 Lbs
Wheel Size OD
24.02"
Wheel Size Width
1.26" - 4.72"
Wheel Spindle
14.75 HP / 20.12 HP
Machine Weight
9920 Lbs / 12125 Lbs
