NEW SHIGIYA GCMI-30

Equipped With

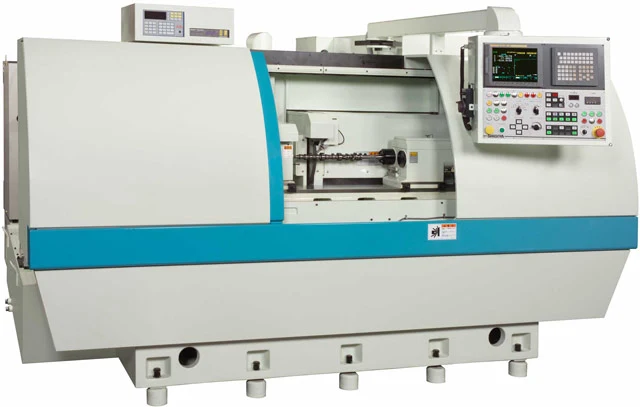

NEW SHIGIYA GCMI-30 CNC MASTERLESS CAM GRINDER
The GCMI-30 CNC masterless cam grinder represents another advance in high-grade grinding technology. The wheelhead features powerful new functions for high-precision rotation with no power loss and high peripheral speed. Other features include improved rigidity, reduced weight of moving parts and low center of gravity. Three-axis control enables high-speed cycle grinding and oscillation cam grinding.
Swing Over Table
11.81"
Distance Between Centers
9.84" / 24.81"
Weight Capacity
330 Lbs
Wheel Head Travel
7.87"
Wheel Size OD
13.78"
Wheel Size
13.78" x .98" x 5"
Wheel Spindle
29 HP
Machine Weight
15432 Lbs / 19841 Lbs
