NEW SHIGIYA GNW-30

Equipped With

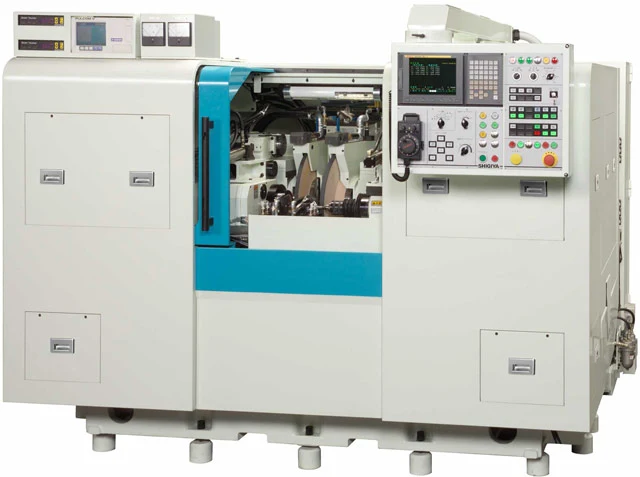

NEW SHIGIYA GNW-30 2-HEAD CNC CYLINDRICAL GRINDER
The GNW-30 production type 2-head CNC cylindrical grinder is perfect for large to small production on a variety of workpieces. The GNW-30 offers simultaneous two-diameter grinding and synchronized driving workheads. The double-wheelhead design allows two different surfaces to be ground in one setup and one continuous operation, significantly reducing cycle times while maintaining high part accuracy.
The GNW-30 with "Twin Head" wheelhead mounted on a compact body can conduct separate grinding operations with each wheel.  The work in a volume production line that normally takes two machines can be done on this machine alone.
Swing Over Table
7.87"
Distance Between Centers
3.94"
Max Grinding Diameter
3.93"
Weight Capacity
44.09 Lbs
Wheelhead Swivel Angle

     Right Wheelhead
0º
     Left Wheelhead
0-8º
Wheel Size
20" x 1.97" x 6"
Wheel Spindle Speed
2235 RPM
Spindle Motor
2 x 10 HP
Machine Weight
16,534 Lbs
