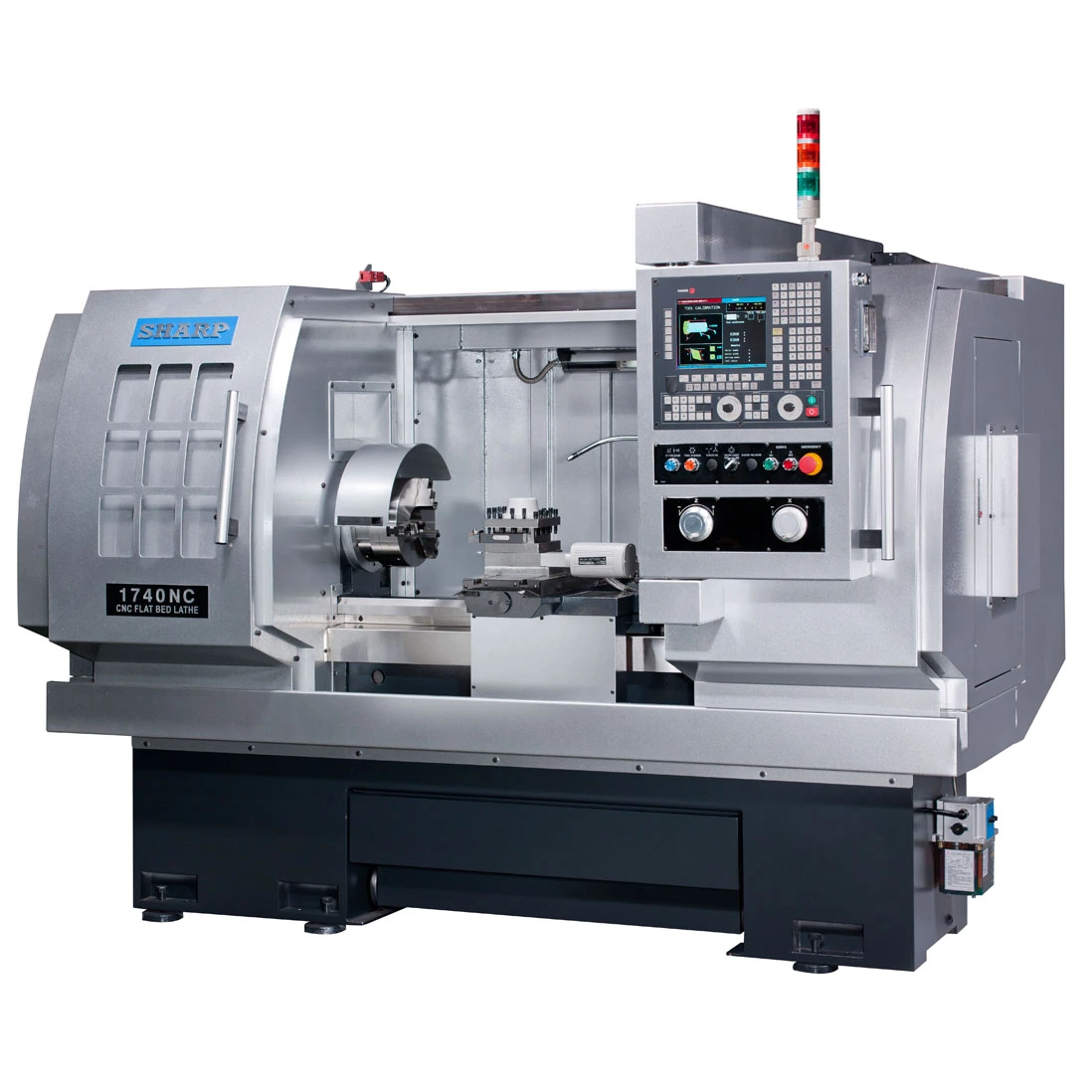

NEW SHARP 1740NC PRECISION CNC LATHE
(Also Available In 60" & 80" Centers)
Flat bed CNC lathe with FAGOR 8055iA control and drive system
User friendly conversational programming language
Different modes of operations available
Operate as manual lathe with electronic handwheels,
Operate as a full CNC lathe with programmable speed, using conversational language or G code language,
Operate semi automatically, combining manual and CNC operations
Teaching in mode
OEM 2-axis CNC, 12 lin. TFT CNC Chassis & Floppy driver. Std 20 inputs/12 outputs
D1-8 camlock spindle, 3-3/8” spindle bore
Geared head with 3 steps speed change, programmable speed
One Piece Cast Meehanite Bed
10 HP Spindle Motor
CNC CONTROL 8055i/A by Fagor:
OPERATING MODES:
Manual – the lathe is operated like a conversational lathe, using the 2 electronic handwheels in the front to move the axes. In addition if offers convenient features such as digital readout and constant surface speed.
Semiautomatic – it allows 2 axes to be controlled with the cranking of 1 handwhel, the machinist can cut arcs, tapers and chamfers.
Automatic – with ability to execute any program, plus background editing capability. Powerful tool inspection mode included as well as full program control from keyboard programs to choose from, the 8085i/A will control everything from start to finish.
Single step – the machinist can go through all or part of the process by executing the program step by step.
PROGRAMMING LANGUAGE:
Conversational – icon key with conversational graphic screens for easy operator data input. No prior programming experience needed
G-code – this programming enables utilization of some sophisticated features such as parametric or variable programming. Auto –prompt via the help key prompts operator though graphic & text help screens.
PROGRAMMING TOOLS:
Teach-in mode – the first part can be made manually while the control records the corresponding program, and then additional parts can be made in automatic mode.
Canned Cycles – by selecting the associated ICON key or G-code, the CNC will prompt you through all canned cycles including Turning, Facing, Grooving and Threading, All equipped with a Thread Repair Canned Cycle.
On-board profile editor for easy blue print programming. Simply enter the data right off the blueprint, the CNC automatically creates the program including complex profiles..
Solid graphic as standard with tool shape representation standard and available for use in both Execution and Simulation mode, Also with line graphic capability.
Swing Over Bed
17-5/16”
Swing Over Cross Slide
7-1/2”
Height of Center
8-5/8”
Swing Over Gap
26”
Distance Between Center
40”
Max. Turning Length
35.14”
Bed
Width of Bed Ways
13”
Total Length of Bed
78”
Swing Over Gap
26”
Length of Gap
11-3/4”
Width in front of Face Plate
7-1/2”
Spindle
Spindle Nose Type
D1-8 Camlock
Spindle Bore
3-3/8”
Bar Capacity
3-1/4”
Taper of Spindle Bore
MT#7
Taper of Center
MT#5
Spindle Speeds (3 steps)
10-84 rpm, 45-380 rpm, 240-2,000 rpm
Bearing and Size
3 Points Supported
2 Taper Roll Bearing #32024 & #32022; 1 Ball Bearing #6021 (Rear End)
Travel and Ballscrews
Cross Slide Travel (X axis)
11”
Ballscrew Diameter (X axis)
1”
Rapid Travel (X axis)
236 in/min.
Axis Motor (X axis)
Yasakawa 200V 0.9Kw; AC Servo
Driver (X axis)
Yasakawa
Longitudinal Travel (Z axis)
36-1/4”
Ballscrew Diameter (Z axis)
1-1/2”
Rapid Travel (Z axis)
315 ipm
Drive Motor (Z axis)
Yasakawa 200V 1.3Kw; AC Servo
Tailstock
Quill Diameter
3”
Quill Taper
MT#5
Quill Travel (graduated)
6-5/16”
Lubrication (Coolant Pump)
Pump Motor
12W, 1 Phase, 220V
Discharge Volume
130c.c./min.
Discharge Pressure
8kg/cm2
Tank Capacity
½ Gal
Coolant
Pump Motor
1/8 HP, 0.1 kw
Pump Capacity & Pressure
6.6 Gal/min. 0.4Kg/cm2
Tank Capacity
37 Gal
Motor
Main Spindle Motor
10HP
3-Phase Continuous Rating Induction Motor
Invertor
Yasakawa 220V 10HP
General
Dimensions (LxWxH)
118” x 60” x 70”
Machine Weight
4409 lbs.
Specifications may be changed or improved without notice.
Total Power Consumptions
220V
15KVA/50 amps
440V
15KVA/25 amps
STANDARD EQUIPMENT:
Back Plate
Coolant pump equipment
Automatic lubrication system
Timing belts
Safety guard ( include: Rear Splash guard, 2-Sliding doors in front )
Electrical box to suit CNC Turning Control
Safety Chuck guard
Mounting block for toolpost
Halogen Work Lamp
Encoder for Spindle RPM
Electronic handwheel X & Y Axis
Main motor 10HP
Electrical 4-way toolpost
Toolbox and adjusting tools
Center sleeve MT#7 x MT#5
Two dead centers
Camlock spindle wrench
Screw driver
Spanner ( double-ended wrench )
Hexagonal wrench
Operation manual
OPTIONAL ACCESSORIES:
D1-8 Camlock:
Face Plate 17”
Face Plate 20”
3-jaw chuck 10”, direct mount
3-Jaw chuck 12” direct mount
4-jaw chuck 12” direct mount
4-jaw chuck 16” direct mount
3-jaw chuck 12” (BISON)
3-jaw chuck 16” (BISON)
4-jaw chuck 12” (BISON)
4-jaw chuck 16” (BISON)
Steady Rest for 17” Lathe (3/16” – 4 1/2”)
Steady Rest for 20 and 22” ( ¼” – 7 1/8”)
Follow Rest (3/8” – 3”)
Quick change toolpost 4 tool holders, manual version
Hydraulic tailstock with hydraulic pump & tank
Hydraulic system 3 jaw 10” chuck with draw bar and hydraulic pump & tank .00
Hydraulic system 3 jaw 10” chuck with draw bar and hydraulic turret tool 8 tools pump & tank with magazine hydraulic pump & tank
Hydraulic system 3 jaw 10” chuck with draw bar and hydraulic turret tool 8 tools and hydraulic tailstock with magazine hydraulic pump & tank
CE standard equipment with filter, safety module, interlock and IEC electricity
