NEW ACRA KV-50

Equipped With

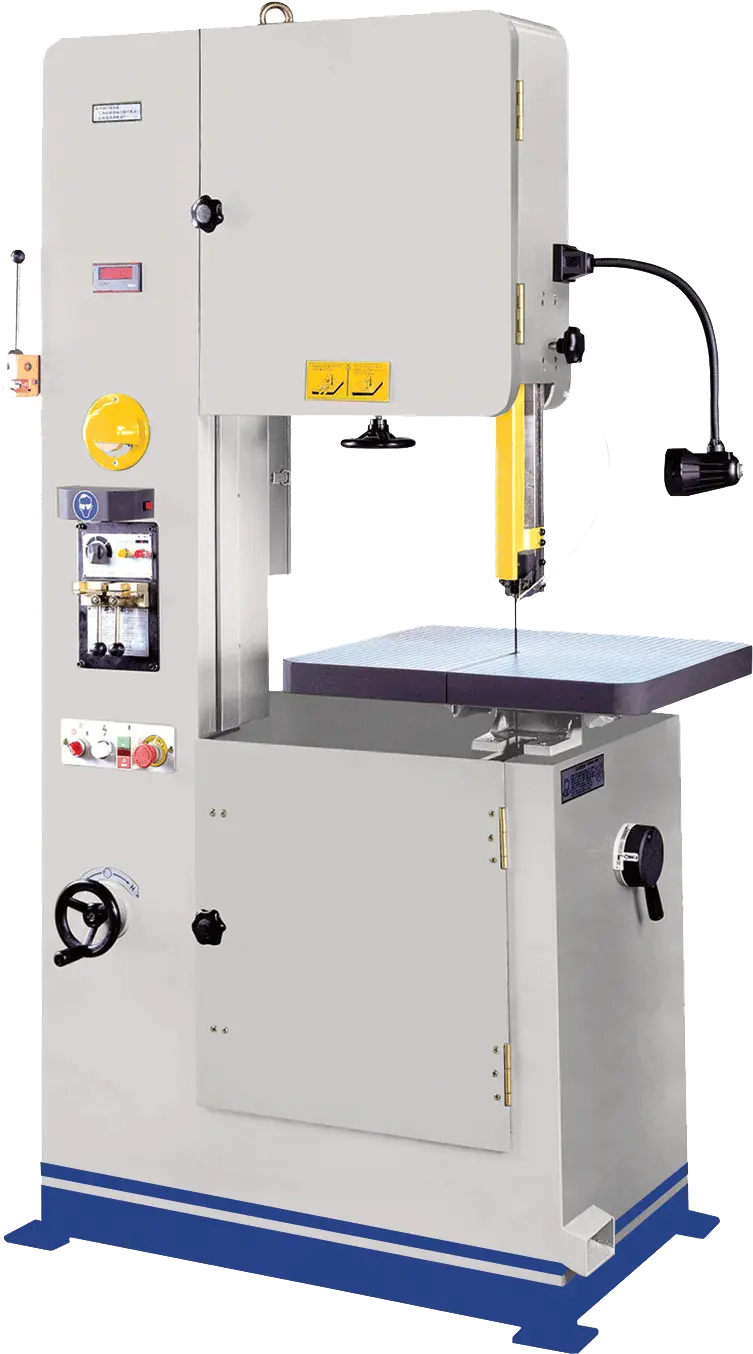

ACRA MODEL KV-50 VERTICAL METAL CUTTING BANDSAW
Acra’s KV-50 Robust Vertical Manual Metal Cutting Bandsaw has an adjustable Tilt Table that allows cutting of steel or alloy plate & sections, PVC or composites. Built to the highest standards, the KV-50 Vertical Bandsaw offers many standard features of construction such as, heavy duty frames & bases, high quality cast iron tables, dependable motors, and a variable mechanical speed design. Made in Taiwan and featuring the following:
• Digital FPM display for infinitely variable speed adjustment.
• Cast iron table tilts (Left & Right and Front & Back).
• Cast iron blade wheels with rubber tires for traction.
• Air pump to remove chips from cutting area.
Specifications:
Throat Depth:                       20-1/2″
Work Height:                        12-3/8″
Table Size:                             23-1/2″ x 19-1/2″
Table Inclination (4-Ways):   15 Degree
Saw Blade Length:                153″
Saw Blade Width:                  1/8″ – 5/8″
Saw Blade Speeds:                (Low) 65-280 FPM/ (High) 400-1,640 FPM
Butt Welder Capacity:            2.4KVA 1/8″-5/8″
Horsepower:                          2 HP
Voltage:                                 230/460V AC ~ 3 Phase
Weight                                  1366 lbs
Dimensions                           45 × 28 × 81 in
Standard Equipment:
• Saw Blade Butt Welder with integrated Annealing Unit.
• Blade Shear and Grinder.
• Built-in Blade and Tire cleaning brush.
• Low Voltage Working Lamp.
• One set of required tools.
• One instruction and parts manual.
• Electro-Magnetic Switch for overload protection.
• Blade Guides
• Saw Blade
• Speed Indicator
• Variable Speed Drive
